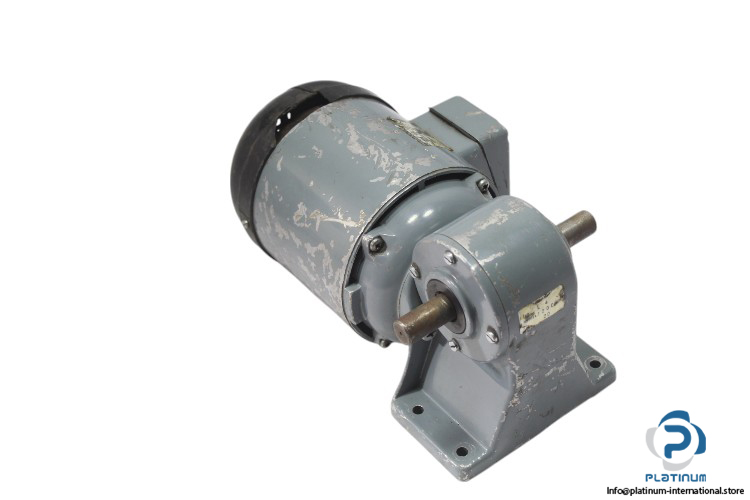

GROSCHOPP MDM 100-70 Gear Motor
The GROSCHOPP MDM 100-70 Gear Motor is a high-performance motor designed for industrial applications requiring efficiency, reliability, and durability. This versatile gear motor supports both single-phase and three-phase operation, providing adaptable performance across various voltage and frequency configurations. With an attached E 4 gearbox and a 20:1 gear ratio, it delivers optimal torque output for demanding applications.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: MDM 100-70

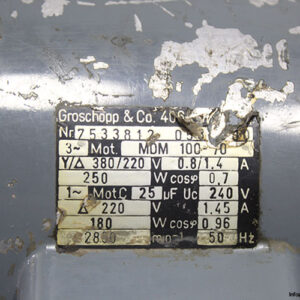

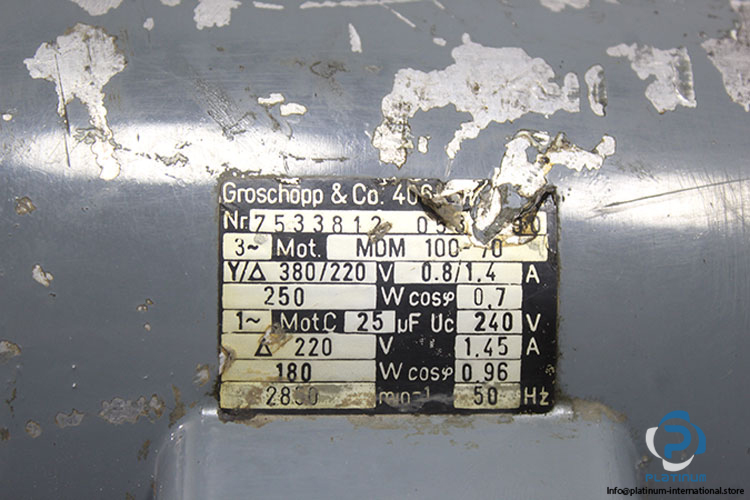

Technical Specifications
Three-Phase Operation
- Rated Voltage: 380 / 220 V (Star/Delta)
- Rated Power: 250 W
- Rated Current: 0.8 / 1.4 A
- Power Factor: 0.7
Single-Phase Operation
- Rated Voltage: 220 V (Delta)
- Rated Frequency: 50 Hz
- Rated Power: 180 W
- Rated Current: 1.45 A
- Cos Phi: 0.96

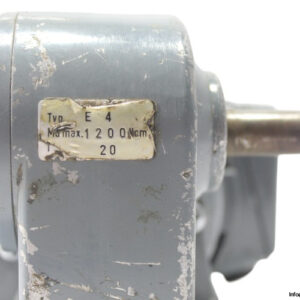

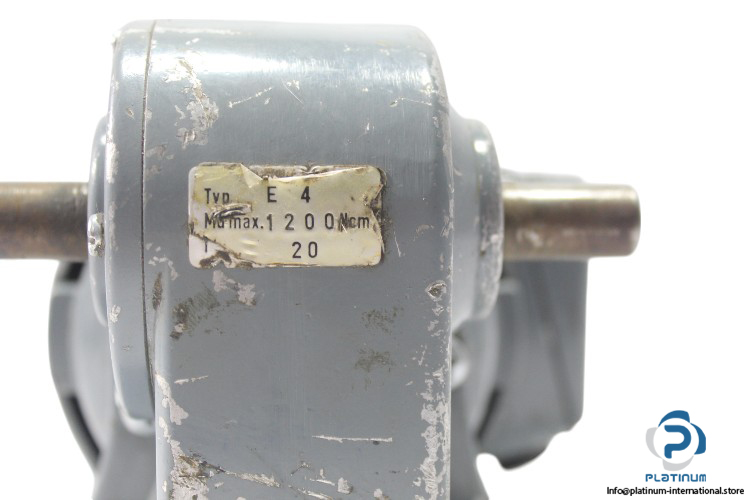

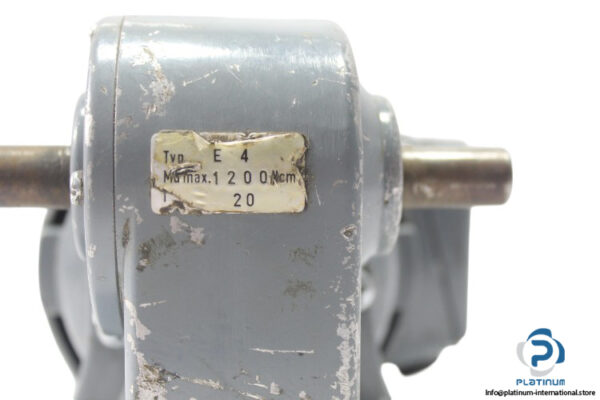

Gearbox Specifications (E 4)
- Gear Ratio: 20:1
- Maximum Torque: 1200 Ncm
