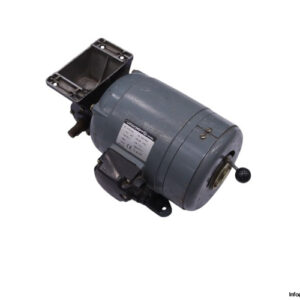

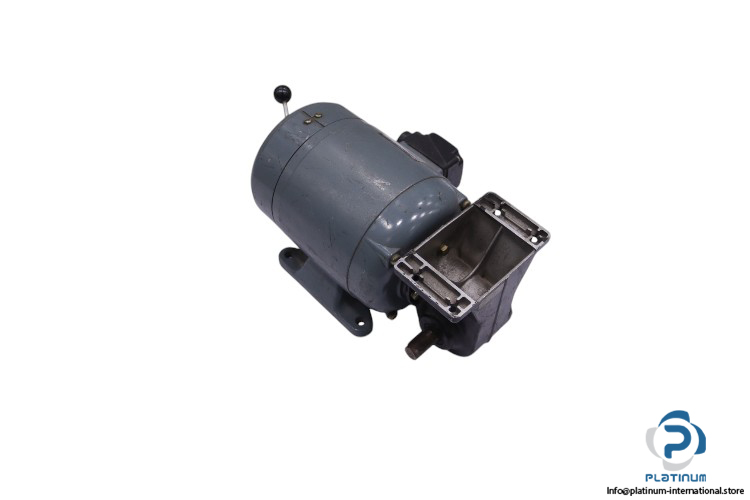

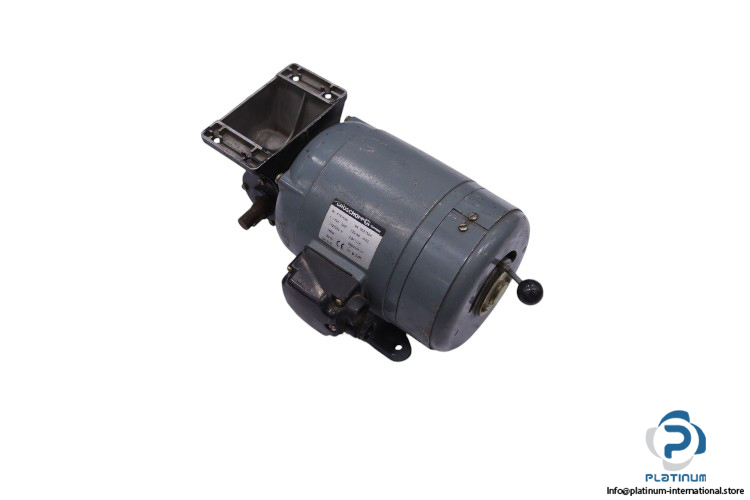

GROSCHOPP RPM 120-60 Gear Motor

The GROSCHOPP RPM 120-60 Gear Motor is a high-performance motor designed for industrial applications requiring efficiency and durability. With a rated power of 140 W, a rated speed of 2800 RPM, and an E4 gearbox attachment, it delivers excellent torque and smooth operation. Engineered for reliability, this gear motor ensures optimal performance in demanding environments.

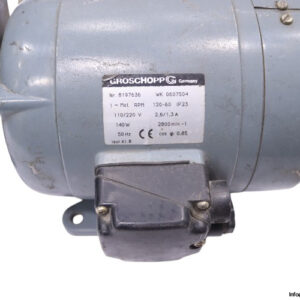

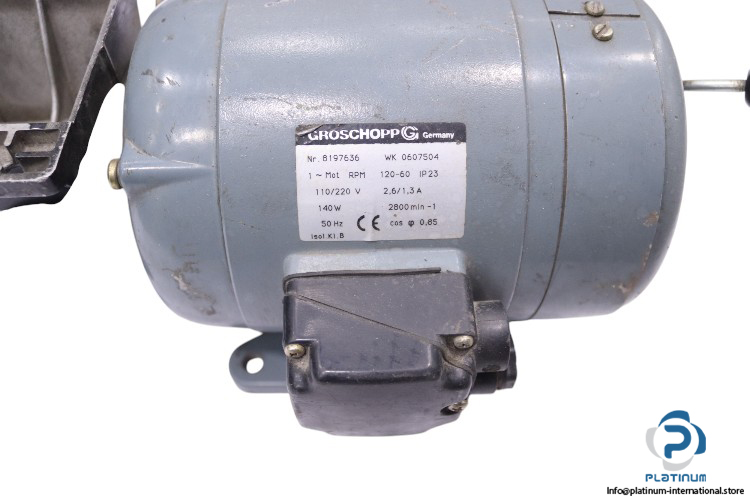

• Manufacturer: GROSCHOPP
• Type: Gear Motor
• Model: RPM 120-60
• Part No: 8197636
• Ref No.: WK 0607504

Technical Specifications

• Rated Voltage: 110 / 220 V
• Rated Speed: 2800 RPM
• Rated Frequency: 50 Hz
• Rated Power: 140 W
• Rated Current: 2.6 / 1.3 A
• Power Factor: 0.85
• Protection Class: IP23

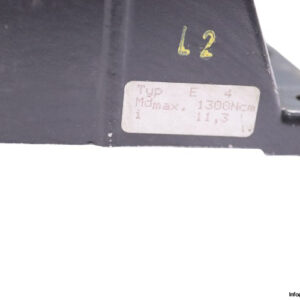

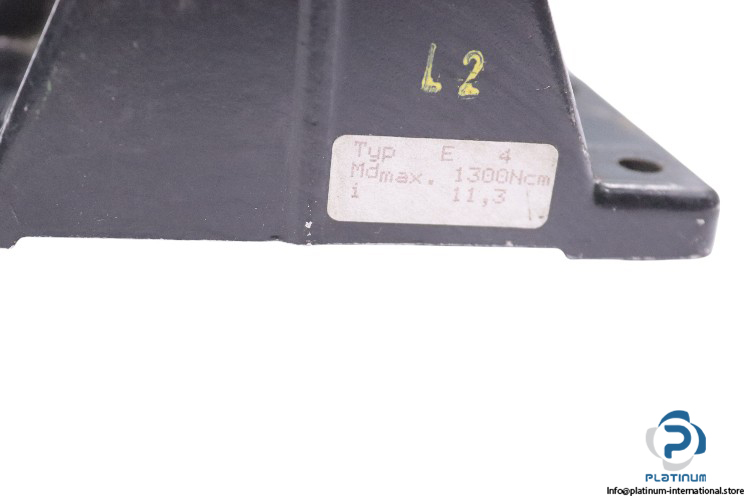

• Attached With: E4 Gearbox
• Ratio: 11.3
• Max Torque: 1300 Ncm
