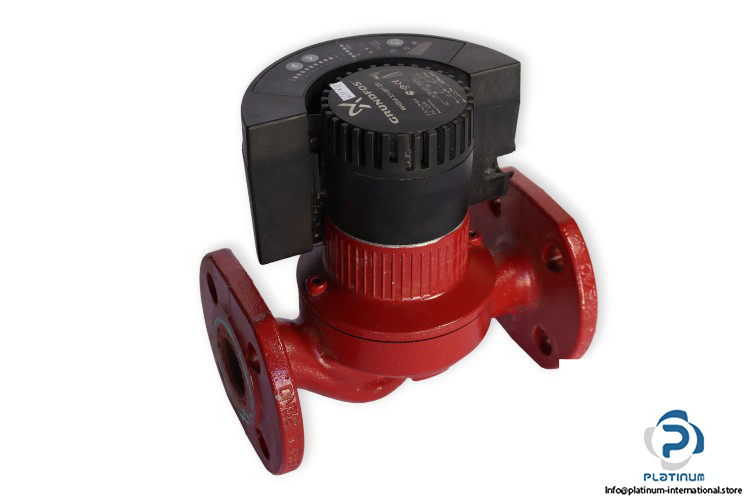

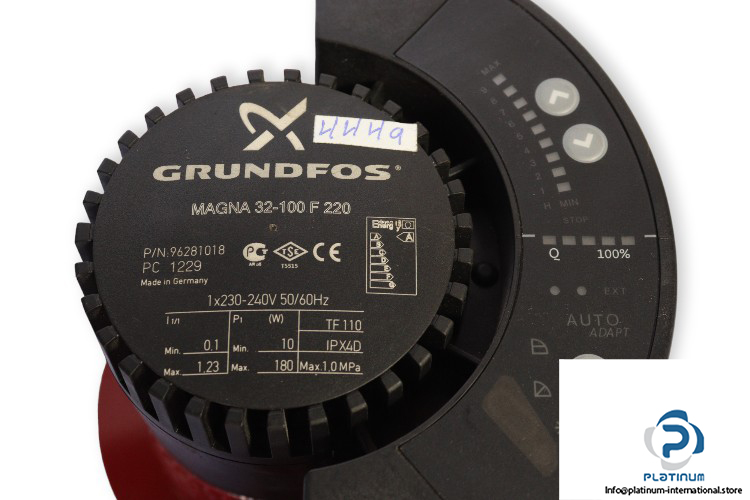

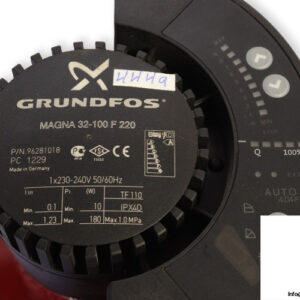

Manufacturer: GRUNDFOS
Type: Circulator Pump
Part No.: 96281018
MNR: MAGNA 32-100 F 220

Maximum head: 100 dm
Material of Pump housing: Cast iron
Material of Impeller: Composite,PES
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Size of connection: 36 mm
Pressure rating for connection: PN 6 / PN 10
Port-to-port length: 220 mm
Pumped liquid: Water
Density: 938.2 kg/m³
Power input – P1: 10 … 180 W
Mains frequency: 50/60 Hz
Rated Voltage: 1 x 230-240 V
Minimum current consumption: 0.1 A
Maximum current consumption: 1.23 A
