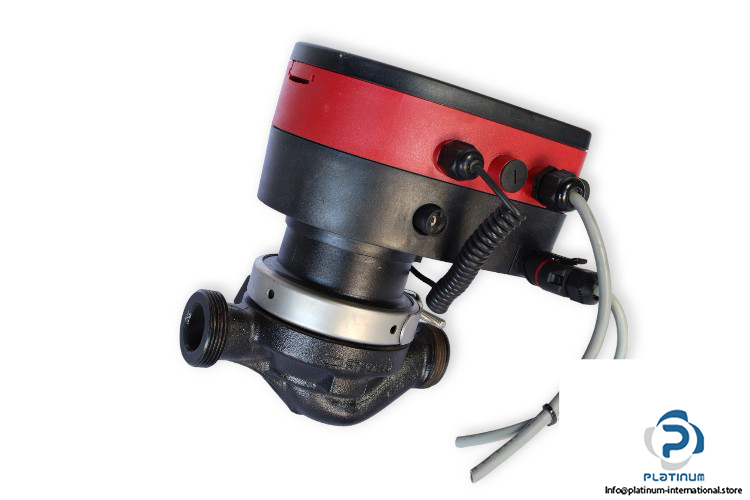

Manufacturer: GRUNDFOS
Type: Circulator Pump
Model: A
Part No.: 97924244
MNR: MAGNA3 25-40 180
Maximum head: 40 dm
Material of Pump housing: Cast iron
Material of Impeller: Composite
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Type of connection: G
Size of connection: 1 ½ inch
Pressure rating for connection: PN 10
Port-to-port length: 180 mm
Pumped liquid: Water
Density: 938.2 kg/m³
Maximum power input – P1: 56 W
Mains frequency: 50/60 Hz
Rated voltage:1 x 230 V
Minimum current consumption: 0.09 A
Maximum current consumption: 0.46 A
