Manufacturer: GRUNDFOS

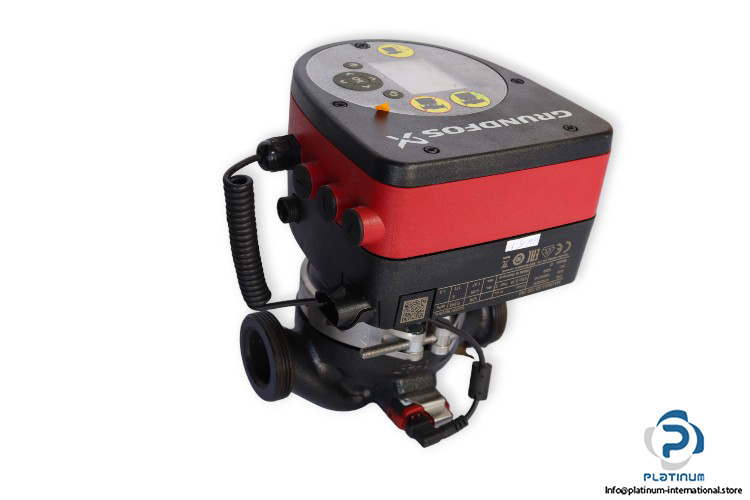

Type: Circulator Pump
Model: D
Part No.: 97924257

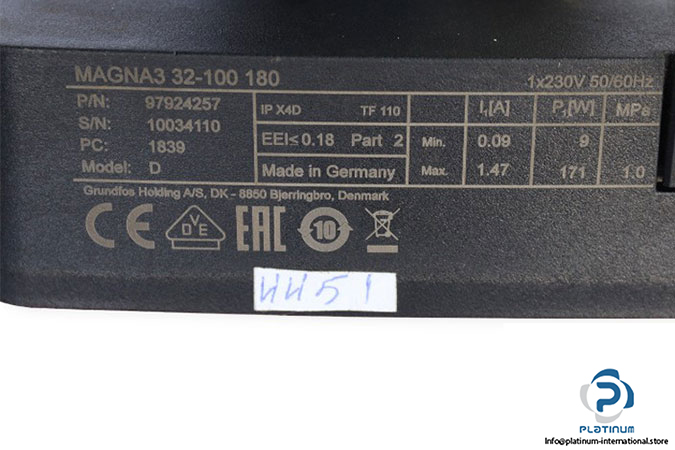

MNR: MAGNA3 32-100 180
Maximum head: 80 dm
Material of Pump housing: Cast iron
Material of Impeller: Composite
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Rated Flow: 5.65 m³/h
Type of Connection: G
Size of connection: 2 Inch
Pressure rating for connection: PN 10
Port-to-port length: 180 mm
Pumped liquid: Water
Density: 938.2 kg/m³
Maximum power input – P1: 171 W
Mains frequency: 50/60 Hz
Rated Voltage: 1 x 230 V
Minimum current consumption: 0.09 A
Maximum current consumption: 1.47 A
