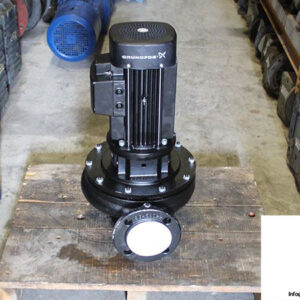

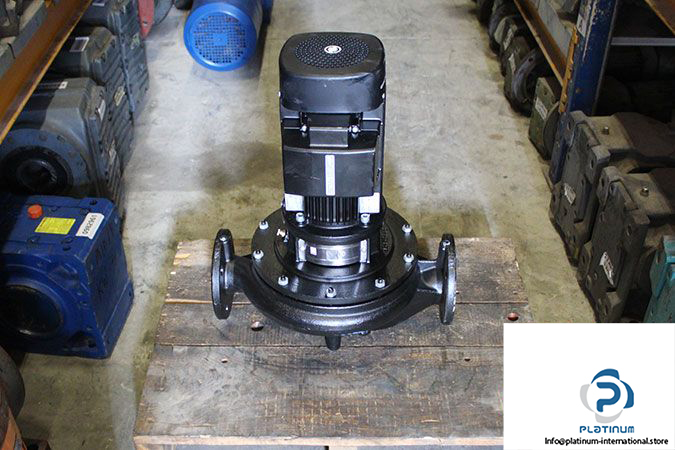

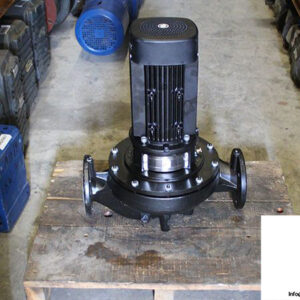

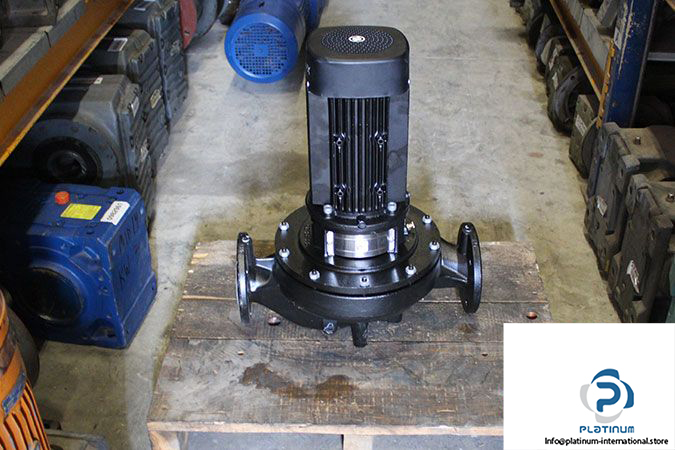

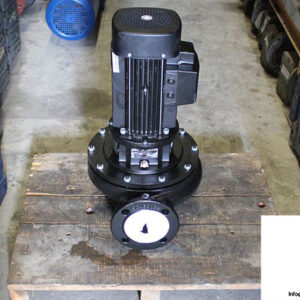

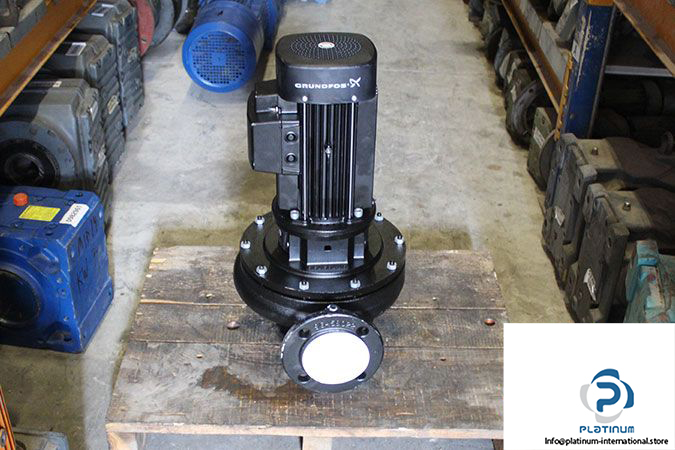

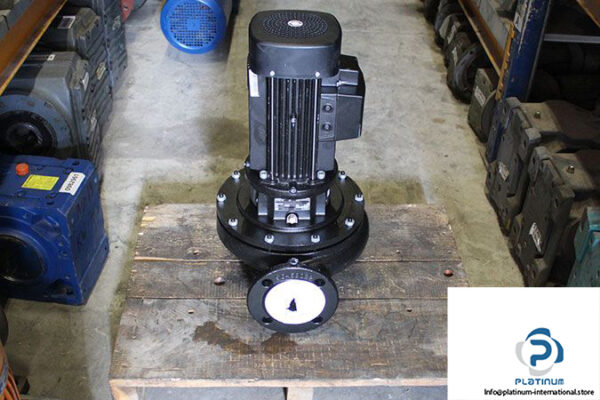

GRUNDFOS TP65-110/4A-F-A-BQQE-GX3 INLINE SINGLE STAGE PUMP

The Grundfos TP65-110/4A-F-A-BQQE-GX3 is a robust and energy-efficient inline single stage pump designed for high-demand commercial applications such as air conditioning and heating systems. With superior hydraulic performance and durable construction, this unit ensures long-term operational reliability.

Manufacturer: Grundfos
Type: Inline Single Stage Pump

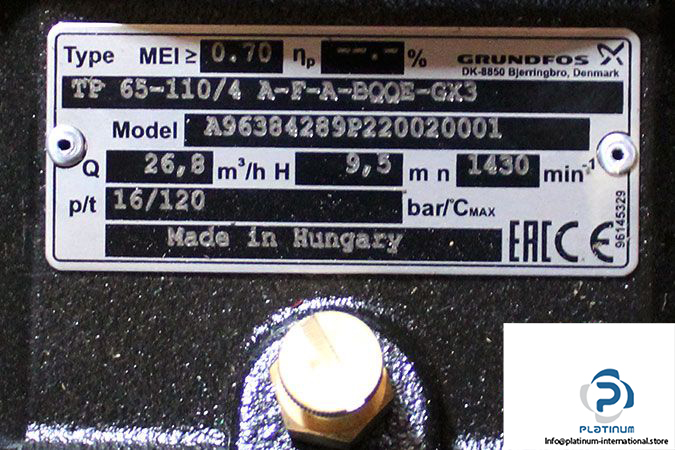

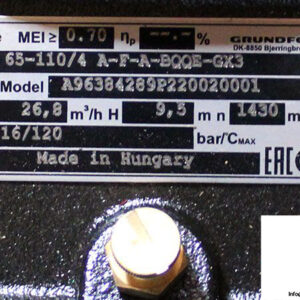

Model: A96384289P220020001
MNR: TP65-110/4A-F-A-BQQE-GX3

Applications

• Commercial Air Conditioning
• Commercial Heating

Technical Information

• Pumped Liquid: Water
• Liquid Temperature Range: -25 / 120 °C
• Selected Liquid Temperature: 20 °C
• Density: 998.2 kg/m³
• Pump Speed: 1430 rpm
• Rated Flow: 26.8 m³/h
• Rated Head: 9.5 m
• Impeller Diameter: 180 mm
• Pump Material: Cast Iron (EN-GJL-250, ASTM Class 35)
• Ambient Temperature Range: -20 / 55 °C
• Max Operating Pressure: 16 bar
• Max Pressure at 120 °C: 16 bar
• Port-To-Port Length: 475 mm
• Connection Size: DN 65
• Flange Size (Motor): FF165

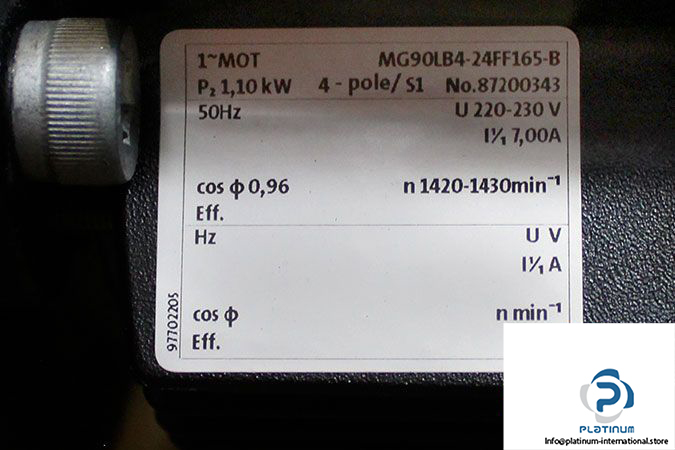

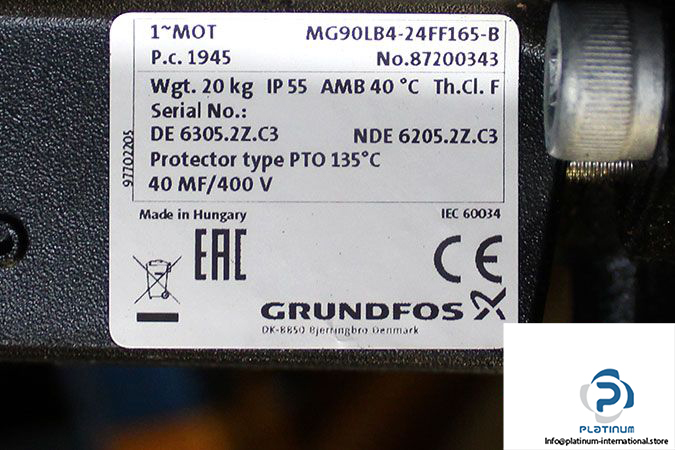

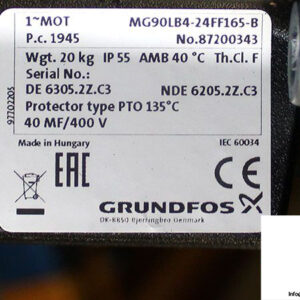

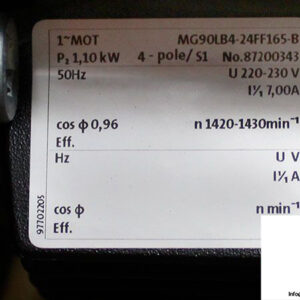

Attached AC Motor (GRUNDFOS MG90LB4-24FF165-B)

• Part No.: 87200343
• Ref No.: 97702205
• Bearings: DE 6305.2Z.C3 / NDE 6205.2Z.C3
• Motor Size: 90
• Rated Power: 1.1 kW
• Frequency: 50 Hz
• Voltage: 220 / 230 V
• Current: 4.2D / 2.4Y A
• Power Factor: 0.96
• Speed: 1420 / 1430 rpm
• Efficiency: IE3, 84.1%
• Poles: 4
• Enclosure Class: IP55
• Duty: S1
• Insulation Class: F
• Shipping Volume: 0.39 m³
