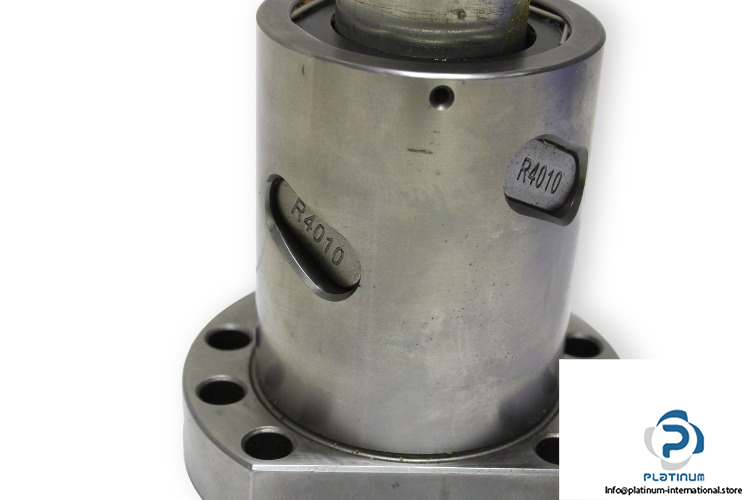

Manufacturer: GTEN
Type: Flanged Rolled Ball Screw

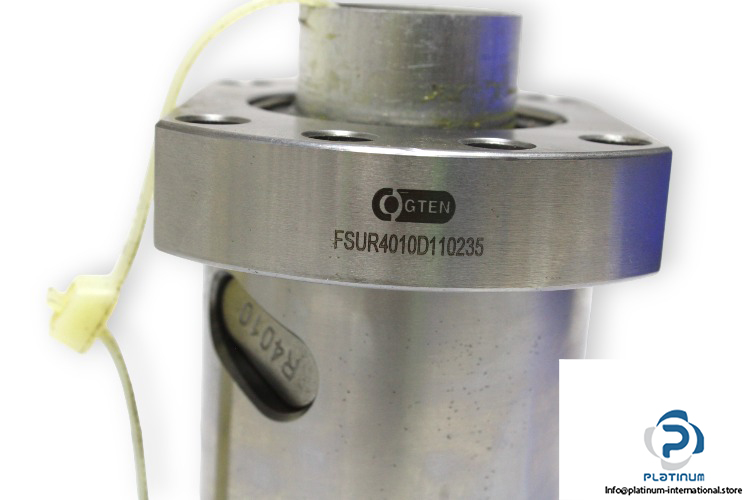

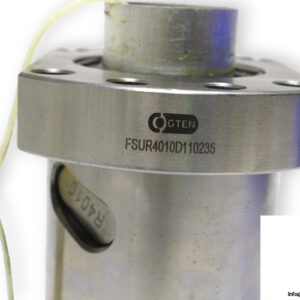

Model: FSUR4010D110235, 4010-4

Size: 40 x 10 R
Inputs: 1
Screw shaft outer diameter d: 40 mm
Lead: 10 mm
Direction of Lead: Right-Hand Thread
Dynamic Rating Load C_a: 5399 kgf
Static Rating Load C_oa: 10074 kgf

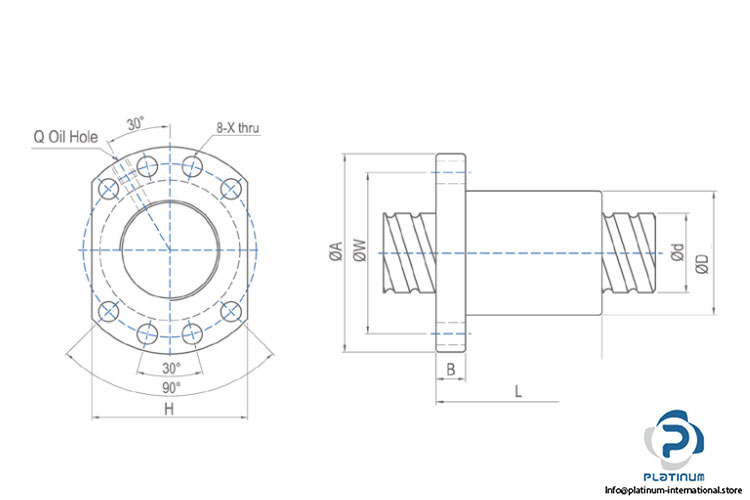

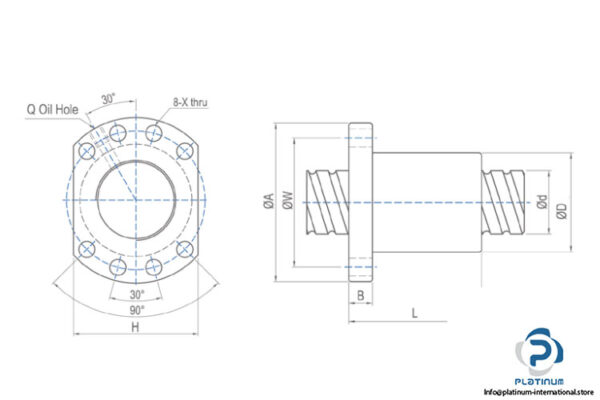

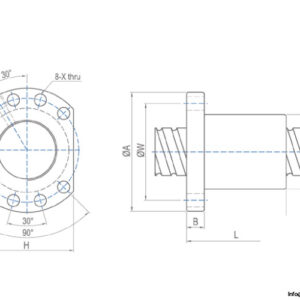

Dimensions:
Outer diameter D: 63 mm
Flange diameter A: 93 mm
Overall length L5: 93 mm
H: 70 mm
W: 78 mm
