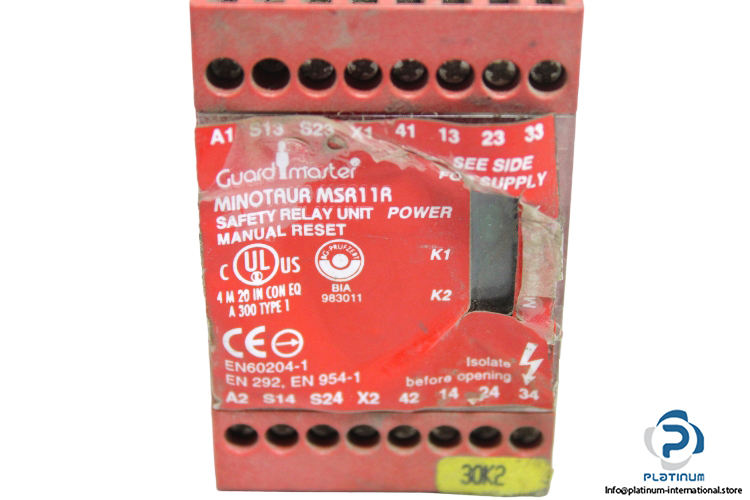

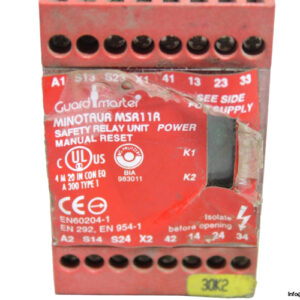

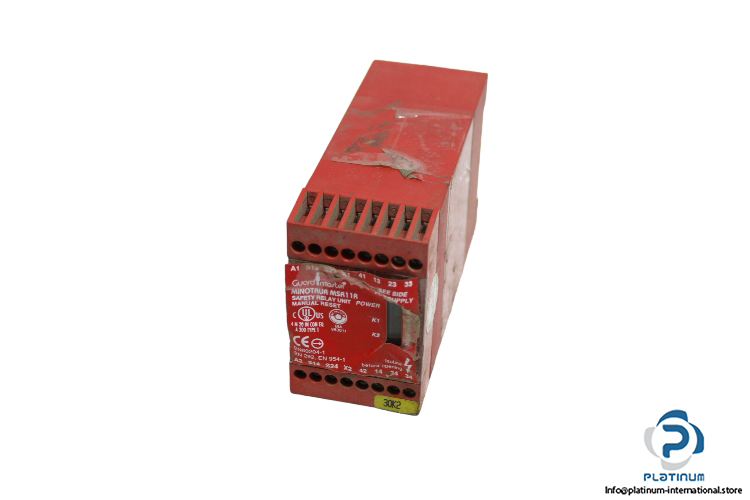

Manufacturer: Guard Master

Type: Monitoring Safety Relay

Model: MSR11R

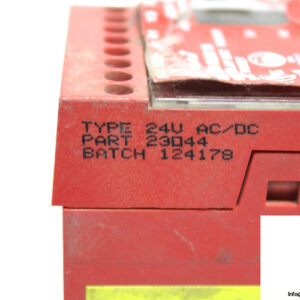

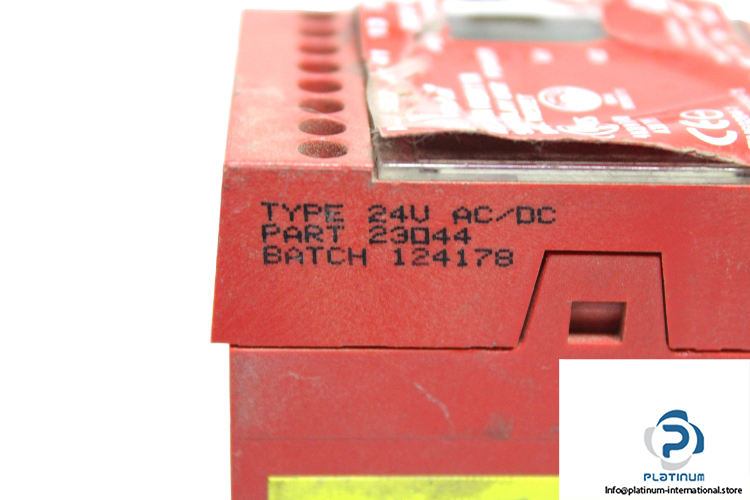

Part No.: 23044

Voltage: 24 V AC/DC

Power consumption: <4 VA

Safety inputs: 2 Normally open switches

Relay outputs: 3 Normally open and 1 normally closed

Operating Temperature: -10 … +50 °C

Degree of enclosure protection: IP 40

Terminal isolation: IP 20

Terminals: plus-minus terminal screw M3.5

Dimensions: 120 x 73 x 45.5 mm

Housing material: Polycarbonate
