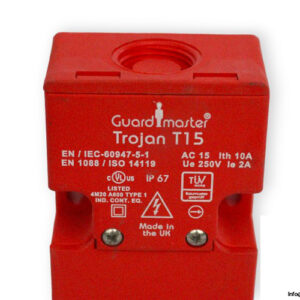

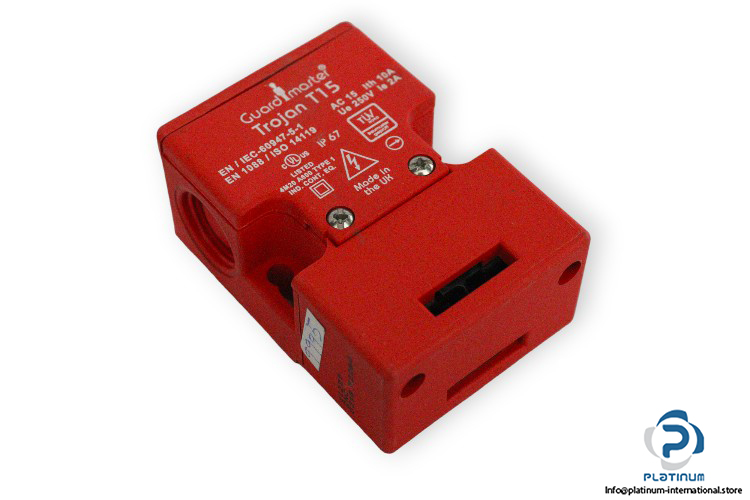

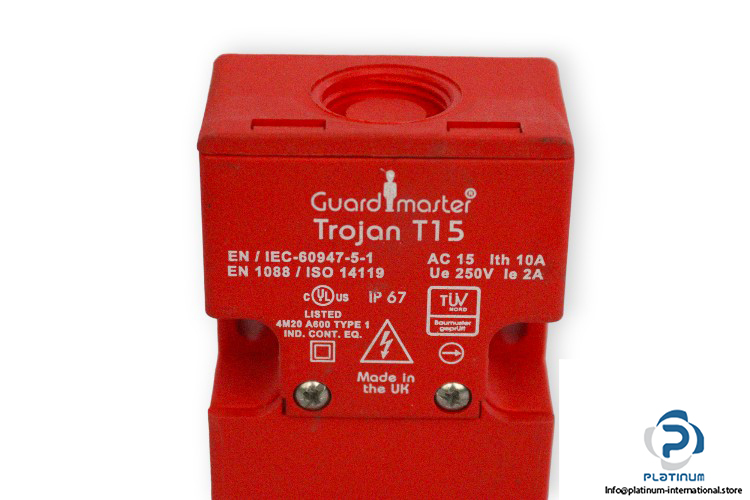

ALLEN-BRADLEY GUARD MASTER TROJAN T15 SAFETY INTERLOCK SWITCH
The Trojan T15 Safety Interlock Switch from Allen-Bradley Guard Master is designed to ensure personnel and machine safety in industrial applications. Its rugged construction and high protection rating make it ideal for harsh environments requiring strict safety compliance.
Manufacturer: Allen-Bradley GUARD MASTER
Type: Safety Interlock Switch
Model: TROJAN T15

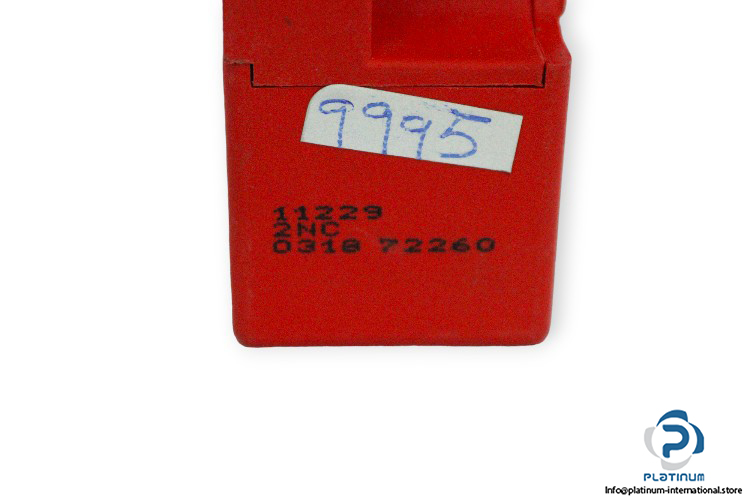

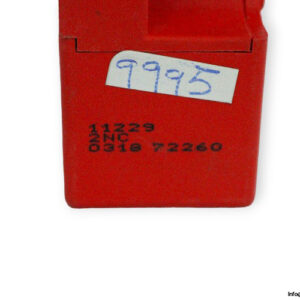

Part No.: 11229
MNR: 11229 0318 72260
Technical Information
- Safety Contacts: 2 N.C.
- Thermal Current (lth): 10A
- Minimum Current: 5V 5mA DC
- Safety Contact Gap: 2 x 2mm (0.078in)
- Rated Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 2500V
- Pollution Degree: 3
- Actuator Travel for Positive Opening: 6mm (0.236in)
- Minimum Operating Radius: 175mm (6.89in)
- Minimum Force: 30N (6.7lb)
- Maximum Actuation Speed: 160mm (6.29in) per sec
- Maximum Actuation Frequency: 2 Cycles per sec
- Protection Class: IP67
