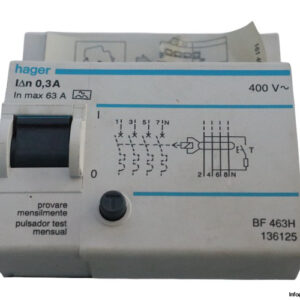

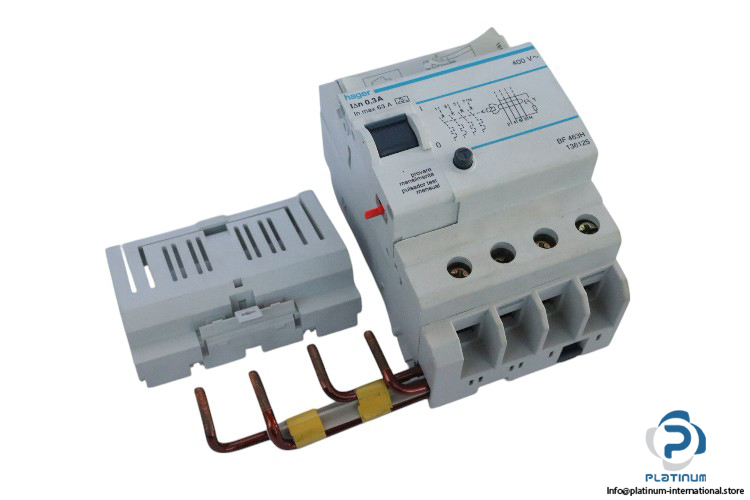

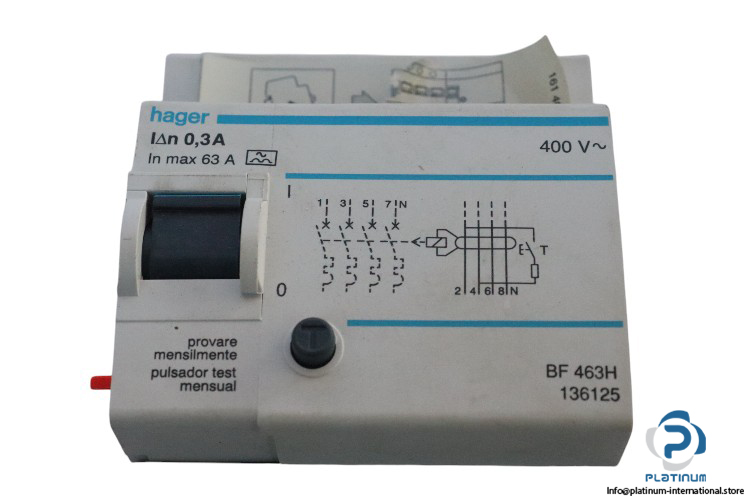

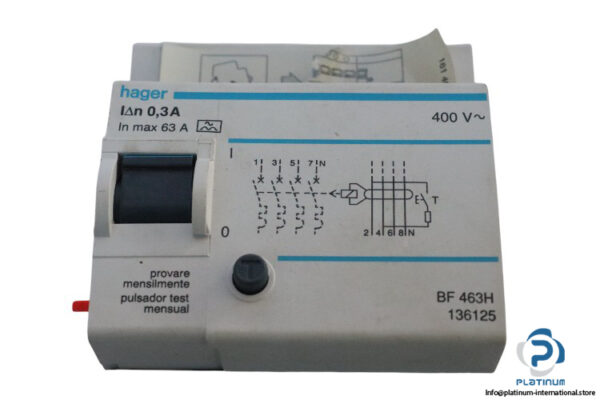

Hager Earth Leakage Add-On Block BF 463H

Hager Earth Leakage Add-On Block BF 463H is designed for use with Hager circuit breakers, providing protection against earth leakage currents. It offers reliable performance for electrical systems, ensuring safety and stability. Below are the key technical specifications:

• Manufacturer: Hager
• Type: Earth Leakage Add-On Block
• Model: BF 463H
• Part No.: 136125

Technical Data:

• Neutral Position: Left
• No. of Poles: 4 P
• No. of Modules: 3
• Rated Operational Voltage (Ue): 400 V AC
• Frequency: 50 Hz
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4000 V
• Rated Residual Operating Current: 300 mA
• Rated Current (In max.): 63 A
• Total Power Loss under In: 7.5 W
• Operating Temperature: -5 to 40 °C
• Dimensions: 92 x 70 x 35 mm
