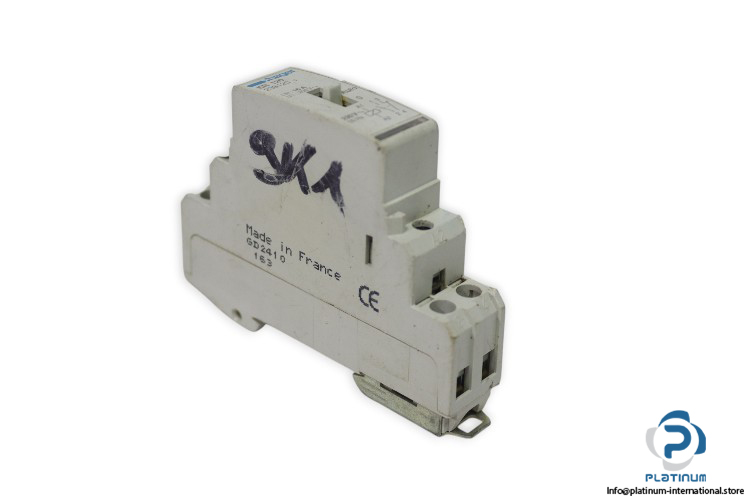

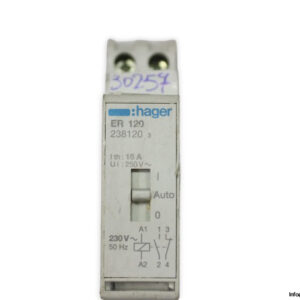

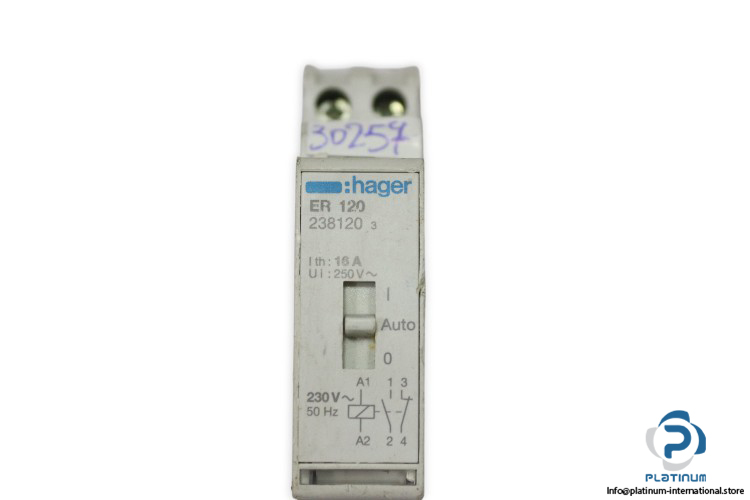

Hager ER120 Relay

The Hager ER120 is a reliable and compact relay engineered for safe switching operations in industrial and electrical installations. With a robust contact configuration and high thermal current capacity, it ensures dependable performance under demanding conditions.

Manufacturer: Hager
Type: Relay
Model: ER120
ID. No.: 2381203

Technical Information

• Contact Configuration: 1 x NC (Normally Close), 1 x NO (Normally Open)
• Control Voltage: 230 V AC, 50 Hz
• Thermal Current: 16 A
• Insulation Voltage (Ui): 250 V AC
• Operating Temperature Range: -10 °C to +50 °C
• Dimensions: 83 x 17.5 x 60 mm
