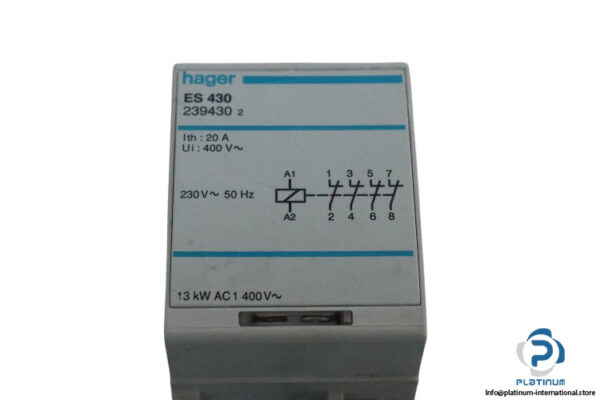

Hager Override Contactor ES 430

Hager Override Contactor ES 430 is a high-quality contactor designed for efficient switching and protection in electrical circuits. It offers reliable performance in demanding environments, with features optimized for industrial and commercial applications.

• Manufacturer: Hager
• Type: Override Contactor
• Model: ES 430
• Part No.: 239430

Technical Data:

• Rated Operational Voltage (Ue): 400 V AC
• Frequency: 50 Hz
• Rated Insulation Voltage (Ui): 400 V AC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Command Voltage: 230 V AC
• Contact Power: 13 kW at 400 V AC
• Acceptable Current Rating with AC1: 20 A
• Thermal Rated Current (Ith): 20 A
• Contact: 4 Normally Close
• Inrush Power Absorbed: 20 VA
• Operating Consumption: 5 VA
• Total Power Loss under In: 4.8 W
• Power Loss per Contact: 1.2 W
• Operating Temperature: -10 to 50 °C
• Dimensions: 61 x 85 x 35 mm
