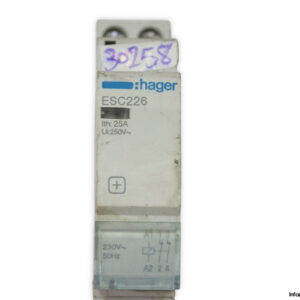

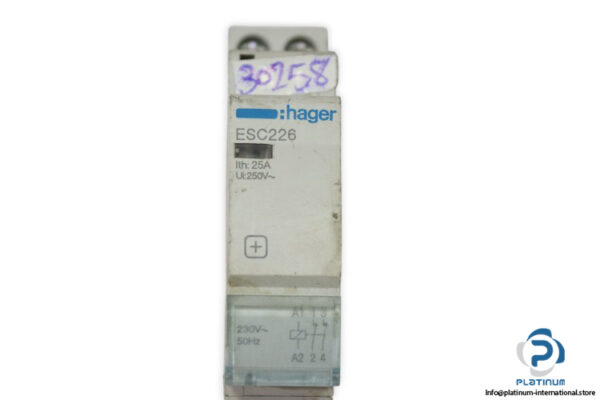

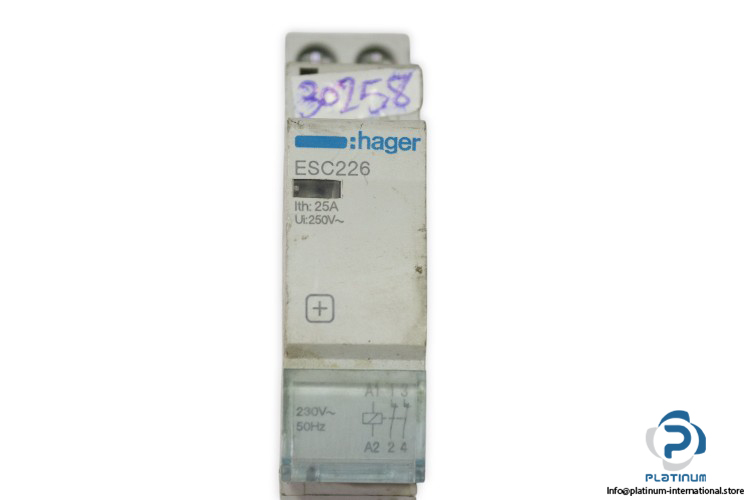

Hager ESC226 Contactor
The Hager ESC226 is a compact and reliable contactor engineered for secure control and switching in industrial and commercial electrical systems. With a 230 V AC control voltage and a 25 A rated current, it ensures efficient performance across a wide range of applications.
Manufacturer: Hager
Type: Contactor
Model: ESC226

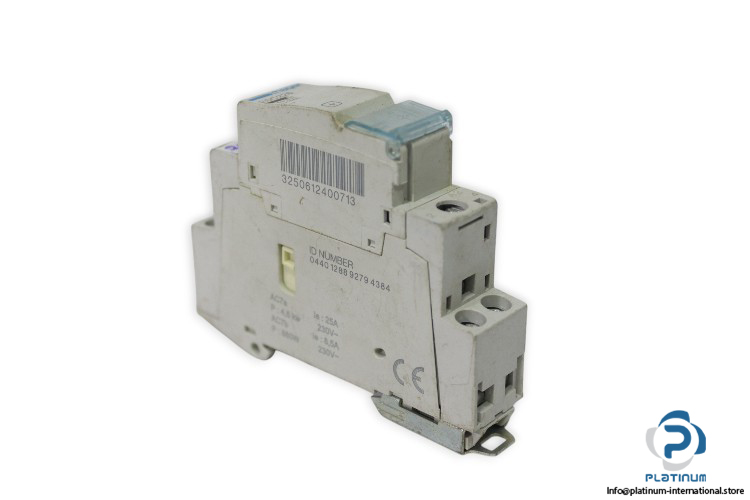

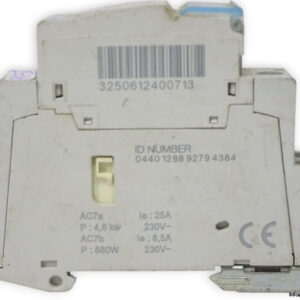

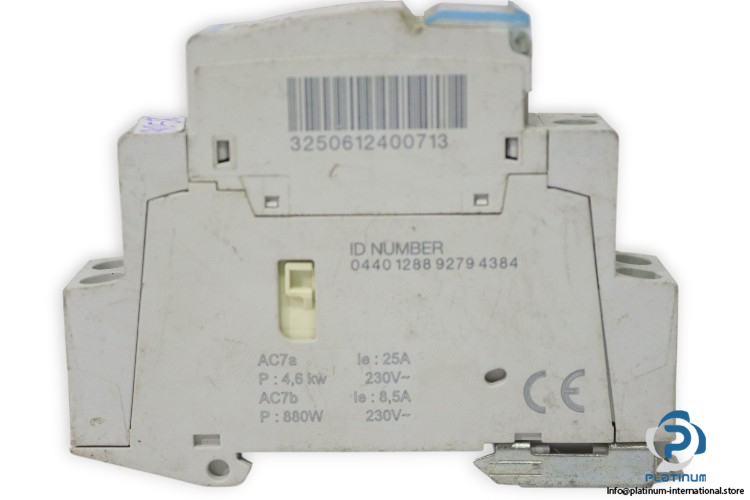

ID. No.: 0440 1288 9279 4384
Technical Information
- Contact Configuration: 2 x NC (Normally Close)
- Control Voltage: 230 V AC, 50 Hz
- Rated Current: 25 A (AC7a), 8.5 A (AC7b)
- Thermal Current: 25 A
- Insulation Voltage (Ui): 250 V AC
- Power: 4.6 kW (AC7a), 880 W (AC7b)
- Installation / Mounting: Nominal tightening torque 1.20 Nm
- Operating Temperature Range: -10 °C to +50 °C
- Dimensions: 83 x 17.5 x 60 mm
