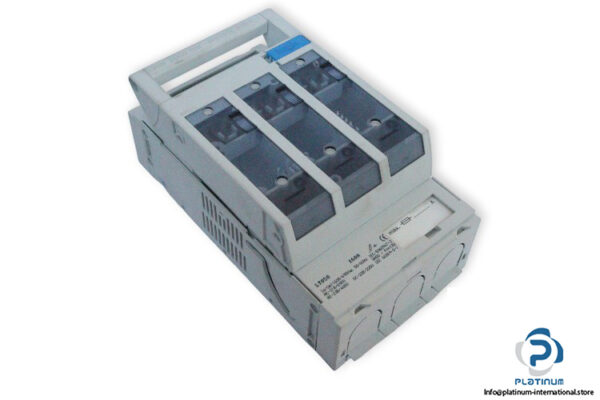

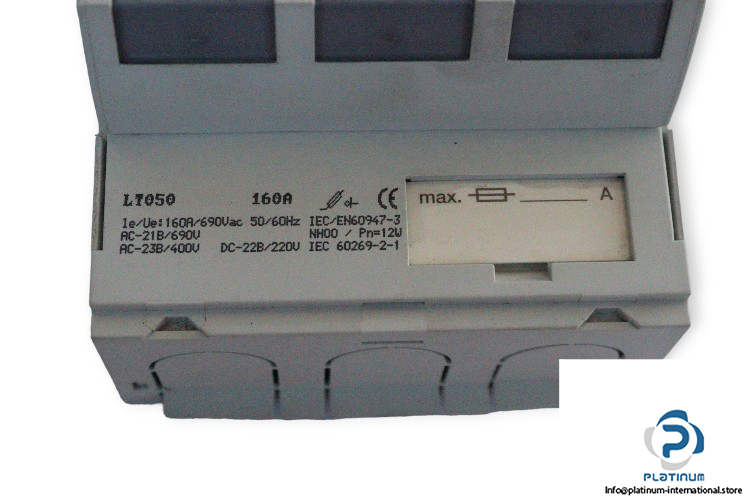

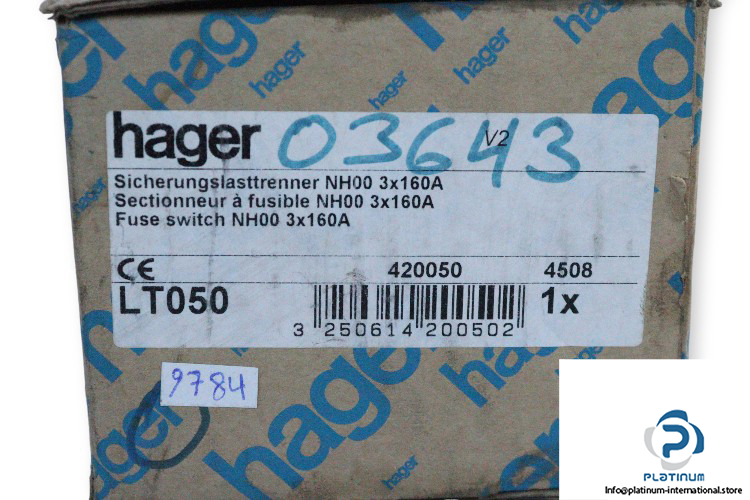

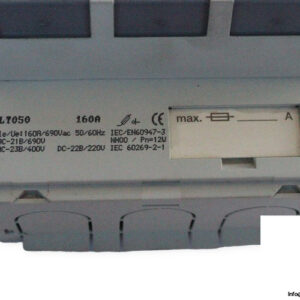

Manufacture: Hager
Type: Fuse Switch
Model: LT050
Part No.: 420050 / NH00

Rated current: 160 A
Rated voltage: 690 V AC
Nominal power Pn: 12 W
Switching capacity:
AC-21B/690 V AC
AC-23B/400 V
DC-22B/220 V
Connection cross section for flexible conductors: 6 … 95 mm²
Connection cross section for rigid conductors: 6 … 95 mm²
Operating temperature: -25°C
Nominal torque: 4.50 Nm
Total power loss below rated current: 9 W
Device lifespan, mechanical Switching cycles: 1400
Device lifespan, electrical switching cycles: 200
Isolation voltage Ui: 1000 V
Surge voltage resistance: 8000 V
Protection class IP: IP3X
Mounting: on DIN rail
Frequency: 50/60 Hz
Dimensions: 200 x 106 x 80 mm
