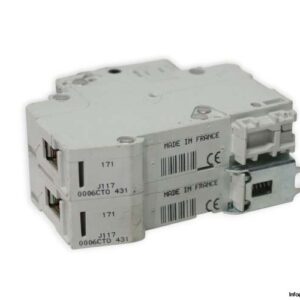

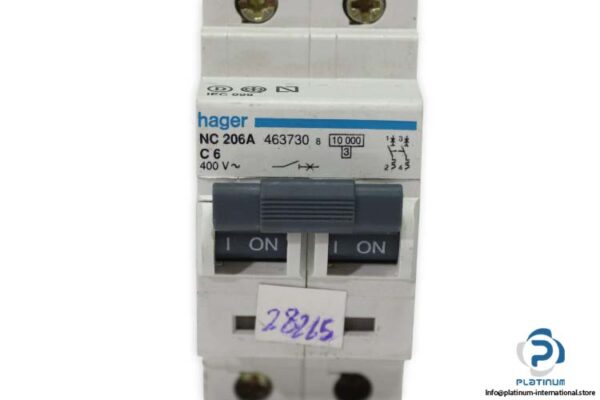

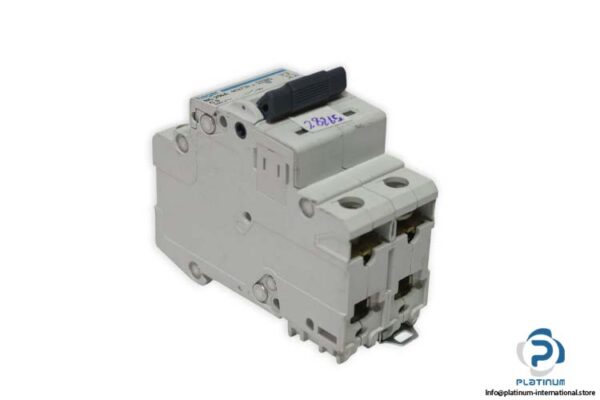

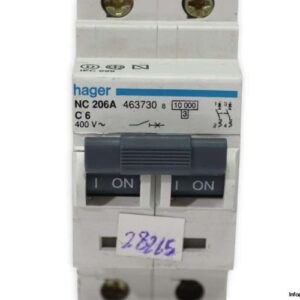

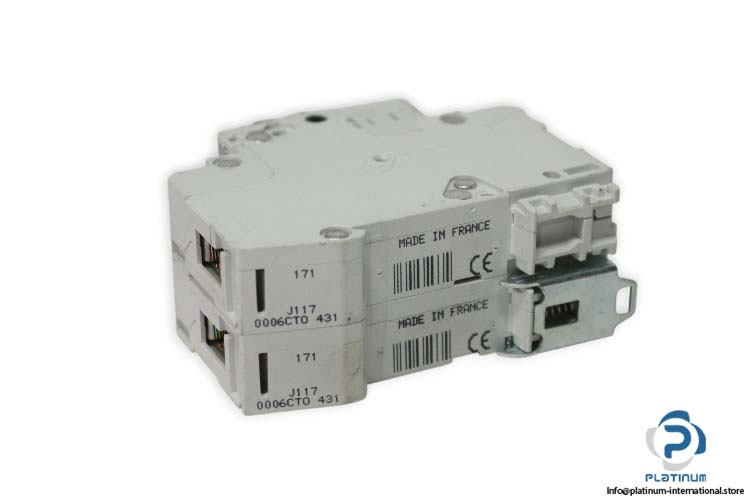

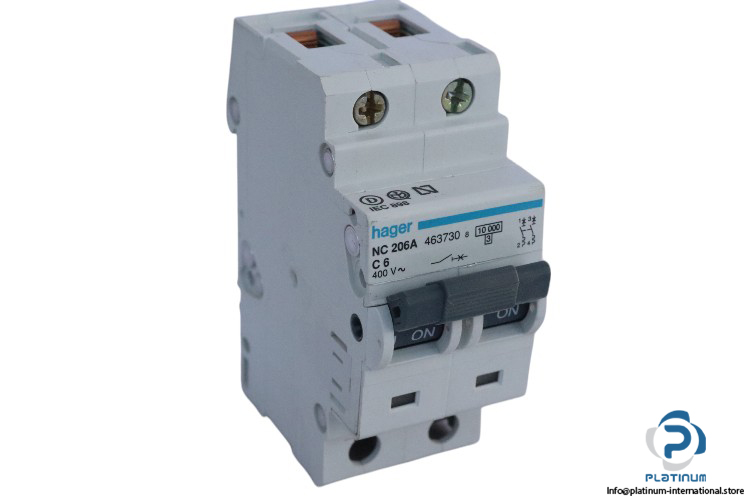

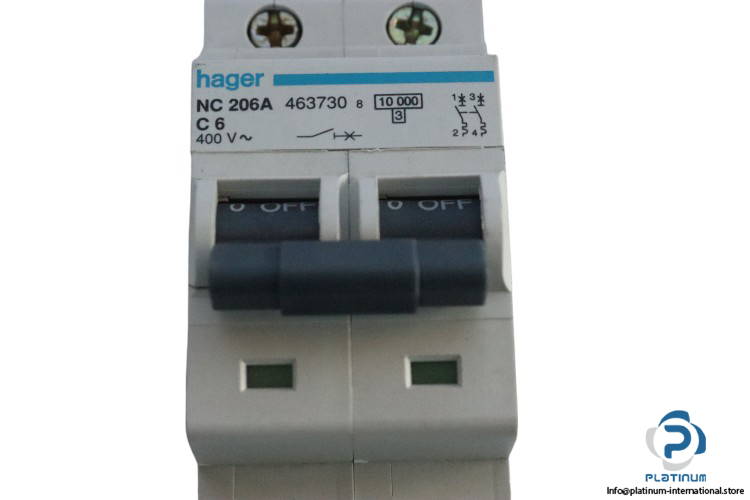

HAGER NC 206A MINIATURE CIRCUIT BREAKER

The Hager NC 206A is a high-performance miniature circuit breaker designed to protect electrical circuits from overloads and short circuits. Built with a durable C-curve tripping characteristic, it is ideal for both residential and industrial applications. This breaker offers excellent reliability, high breaking capacity, and compact dimensions for easy installation.

Manufacturer: Hager
Type: Miniature Circuit Breaker
Model: NC 206A
MNR: 463730

Technical Information

• Number of Poles: 2 P
• Curve: C
• Rated Operational Voltage: 400 V AC
• Nominal Current (In): 6 A
• Frequency: 50 to 60 Hz
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Impulse Voltage (Uimp): 4 kV
• Rated Short Circuit Breaking Capacity (Icn): 10 kA
• Rated Service Breaking Capacity (Ics): 7.5 kA
• Tightening Torque: 2.8 Nm
• Temperature Range: -25 to 70 °C
• Dimensions: 70 x 83 x 35 mm
