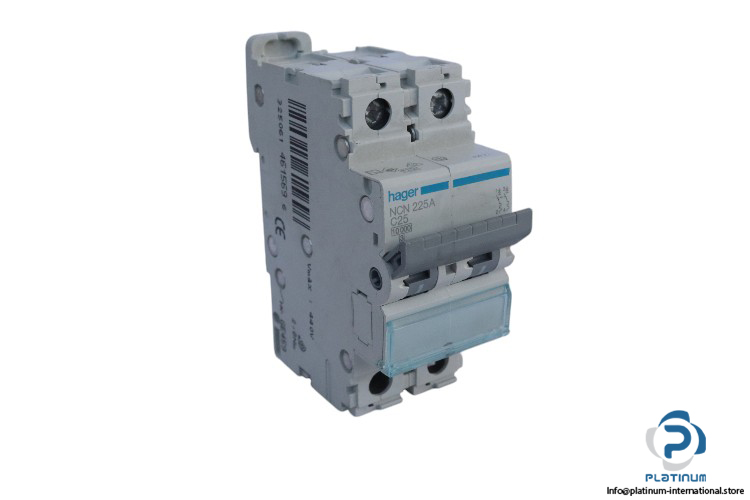

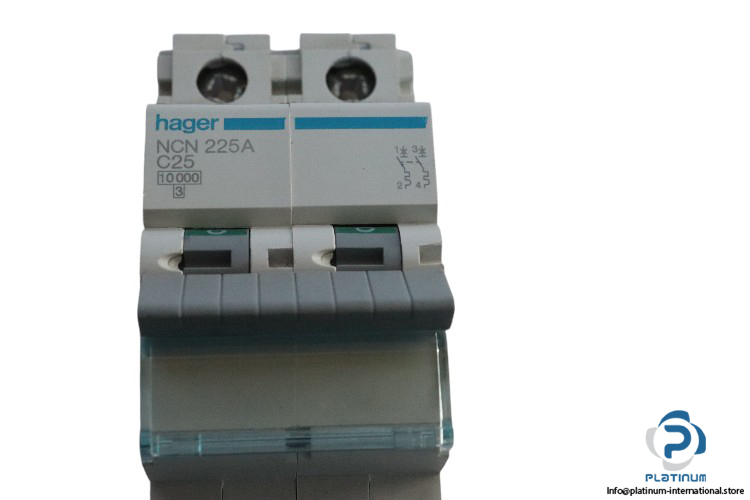

Hager Miniature Circuit Breaker (MCB) NCN 225A
Hager Miniature Circuit Breaker (MCB) NCN 225A is a high-performance circuit breaker designed for protection in residential, commercial, and industrial applications. With its robust features, it ensures reliable protection against short circuits and overloads. Below are the key technical specifications:
- Manufacturer: Hager
- Type: Miniature Circuit Breaker (MCB)
- Model: NCN 225A

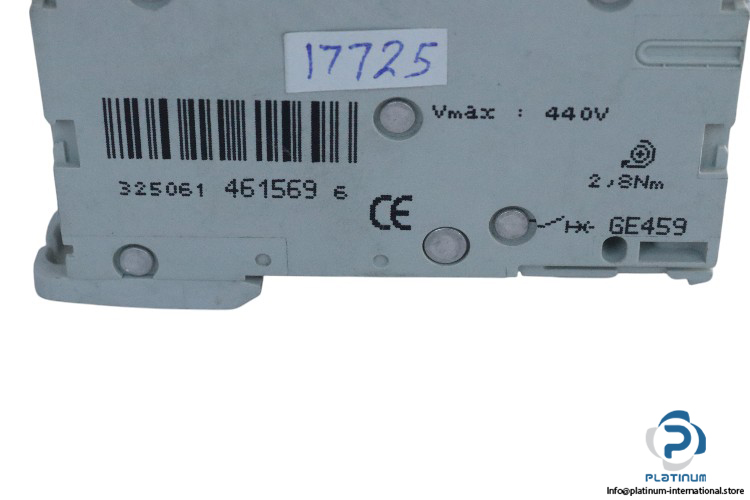

- Part No.: 461569

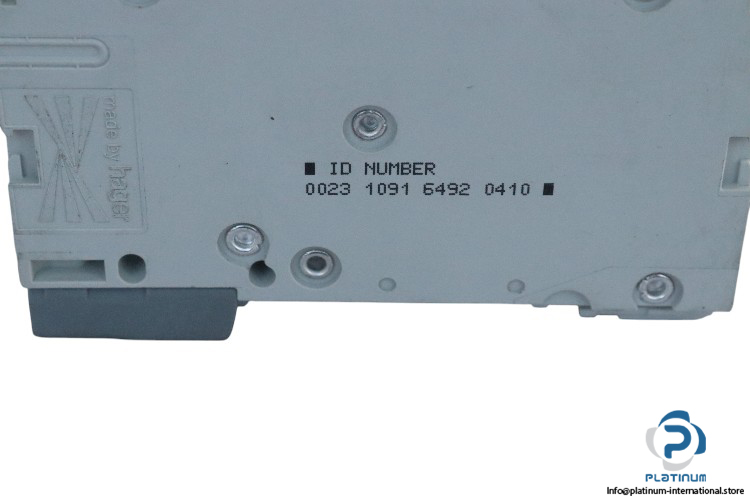

- ID. No.: 0023 1091 6492 0410
Technical Data:
- Neutral Position: Without neutral
- Number of Poles: 2 P
- Curve: C
- Rated Operational Voltage Max.: 440 V AC
- Nominal Current In: 25 A
- Frequency: 50 to 60 Hz
- Rated Insulation Voltage Ui: 500 V AC
- Rated Impulse Voltage (Uimp): 6 kV
- Rated Short Circuit Breaking Capacity Icn: 10 kA
- Rated Service Breaking Capacity Ics: 7.5 kA
- Tightening Torque: 2.8 Nm
- Standard: EN 60898-1, IEC 60947-2
- Temperature: -25 to 70 °C
- Dimensions: 70 x 83 x 35 mm
