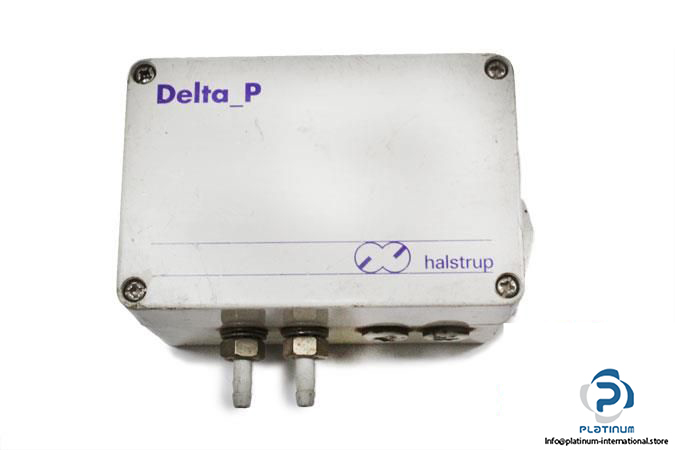

Manufacturer: HALSTRUP-WALCHER

Type: DIFFERENTIAL PRESSURE TRANSMITTER

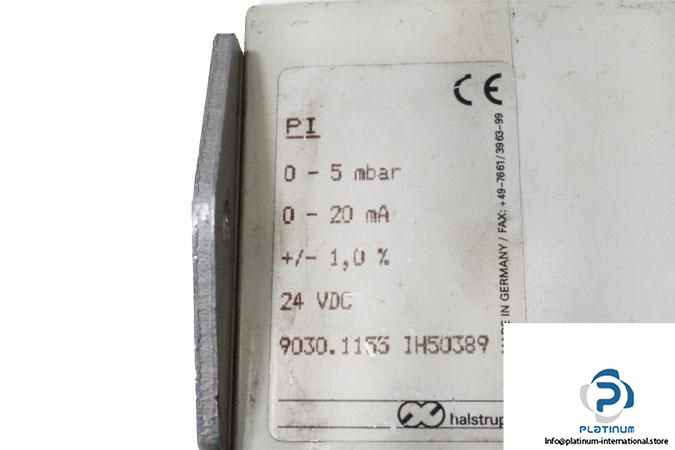

Model: PI

MRN: 9030.1155 IH50389

Supply Voltage: 24 V DC

Output Signal:  0 … 20 mA

Pressure: 0 … 5 mbar

Power Consumption: 3 VA

Operating Temperature: 10 … 60°C

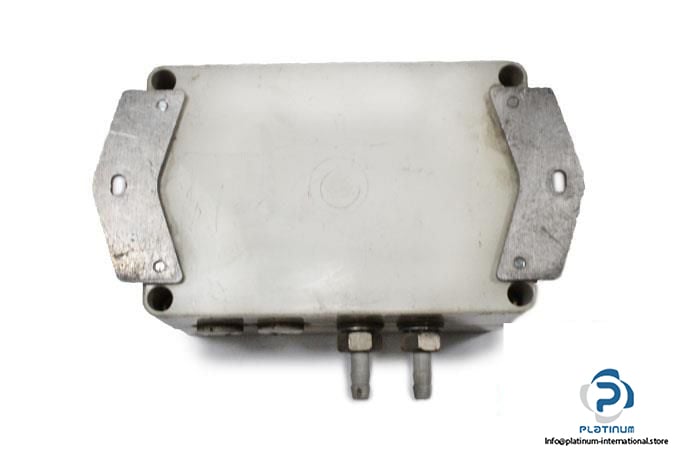

Housing Installation: Mounted on a wall/top-hat rail

Measurement Range: ± 0.05… ± 100 k Pa

Protection Class: IP 65

Degree of Measurement Uncertainty: ± 1%

Medium: air, all non-aggressive gases

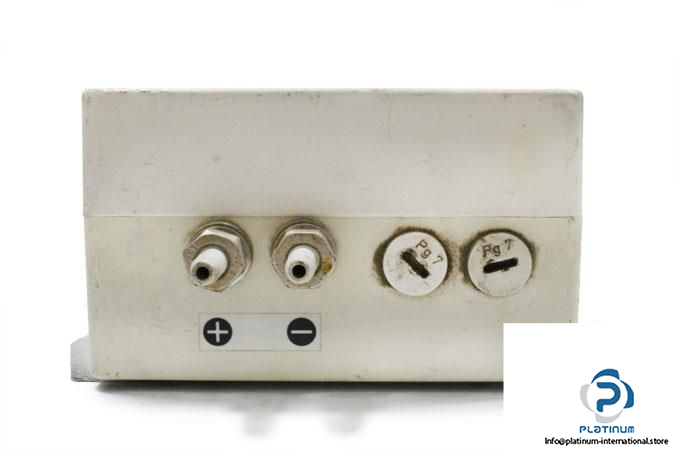

Cable Glands: 2 X PG7

Pressure Ports: for tubing NW 6 mm
