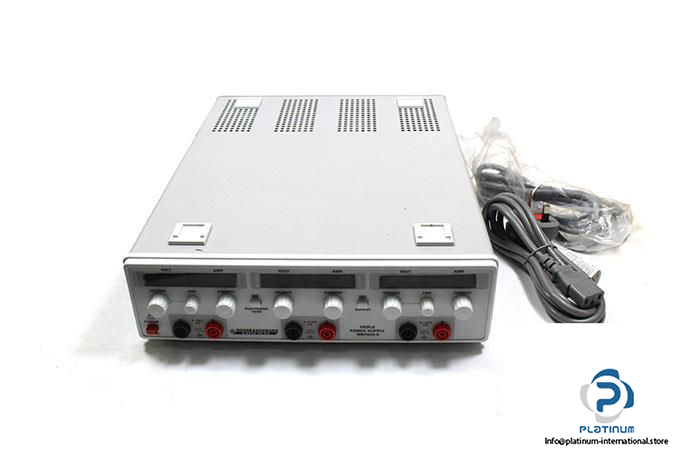

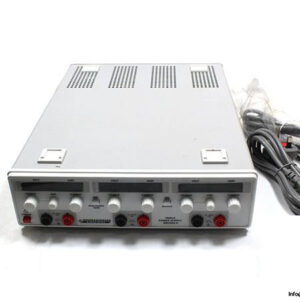

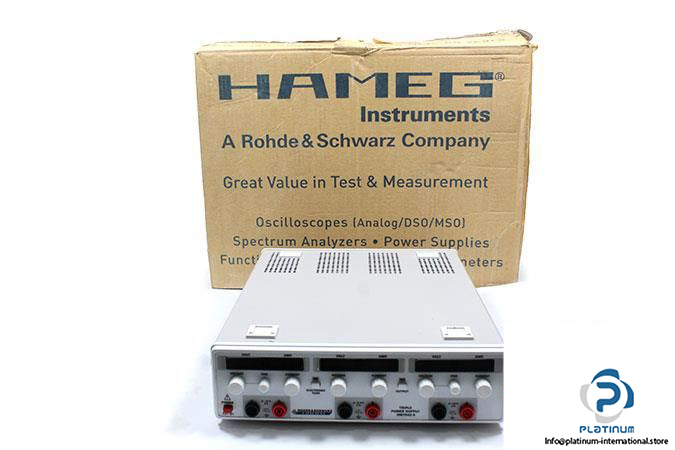

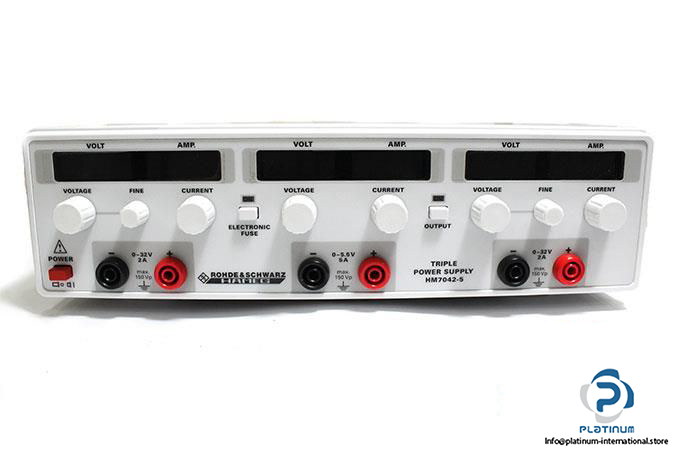

Manufacturer: HAMEG INSTRUMENTS

Type: TRIPLE POWER SUPPLY

Model: HM7042-5

Serial No.: 015531921

Features:

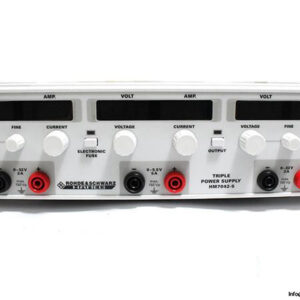

• Separate Voltage and Current Displays for each Output: 4 Digits at Channel 1+3; 3 Digits at Channel 2
•  Protection of sensitive Loads by Current Limit or Electronic Fuse
•  Pushbutton to activate/deactivate all Outputs
•  Low Residual Ripple, high Output Power, excellent Regulation
•  Temperature-controlled Fan

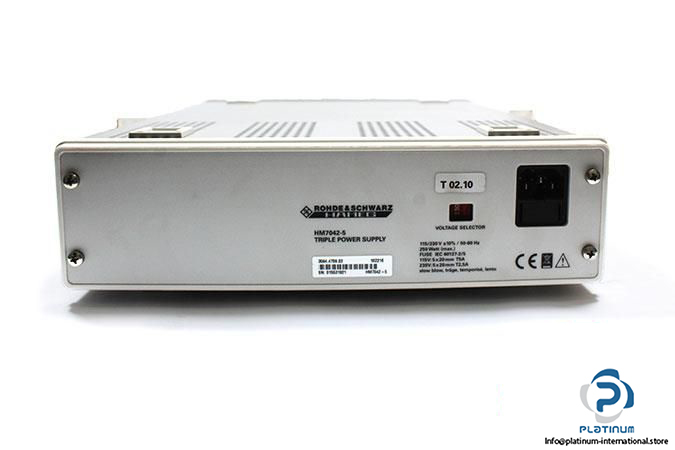

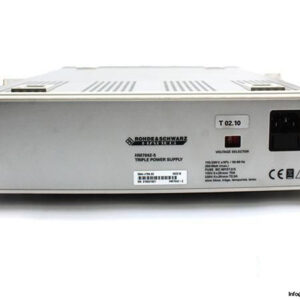

Mains Fuse:

115V: 2 x 5A slow blow 5 x 20mm

230V: 2 x 2.5A slow blow 5 x 20mm

Voltage: 115 / 230 V

Frequency: 50 … 60 HZ

Power Consumption: max. 250 W

Max. Voltage Applicable to Output Terminals:

CH 1 + CH 3: 33 V

CH 2: 6 V

Operating Temperature: 5 … 40 °C

Dimensions (W x H x D): 285 X 75 X 365 mm
