HAVER AND BOECKER 60M2L100A0160 ISO CYLINDER

haver-and-boecker-60M2L100A0160-iso-cylinder-(New)
haver-and-boecker-60M2L100A0160-iso-cylinder-(New)-1
haver-and-boecker-60M2L100A0160-iso-cylinder-(New)
haver-and-boecker-60M2L100A0160-iso-cylinder-(New)-1
New
Manufacturer: HAVER AND BOECKER

HAVER AND BOECKER 60M2L100A0160 ISO CYLINDER

ISO Cylinder

The Haver and Boecker 60M2L100A0160 ISO Cylinder features a 100 mm bore, 160 mm stroke, G 1/2 pneumatic connection, and square frame for robust double-acting compressed air applications.

SKU: 1062705 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.

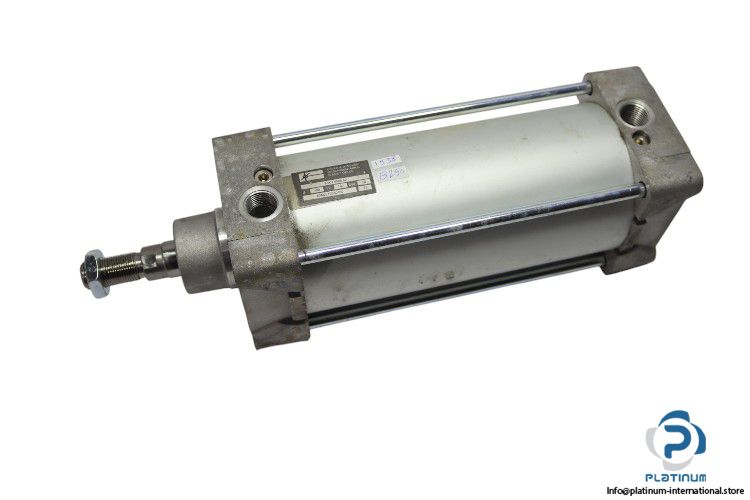

Haver and Boecker 60M2L100A0160 ISO Cylinder

The Haver and Boecker 60M2L100A0160 ISO Cylinder is a robust pneumatic actuator designed for industrial applications using compressed air. With a square shape and double operation mode, it delivers high performance and durability for linear motion control.

Manufacturer: Haver and Boecker

Type: ISO Cylinder

Model: 60M2L100A0160

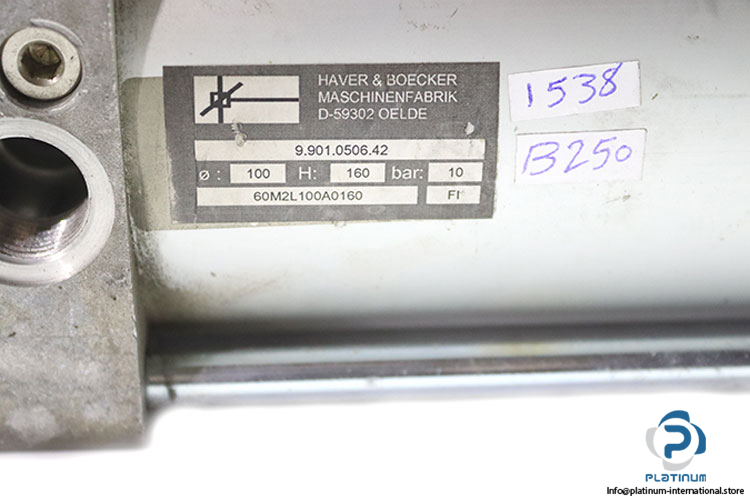

Part No.: 9.901.0506.42

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 100 mm
  • Stroke: 160 mm
  • Bore x Stroke: 100 x 160 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 110 x 245 mm
  • Pneumatic Connection: G 1/2
  • Pressure Max.: 10 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight5,17 kg
