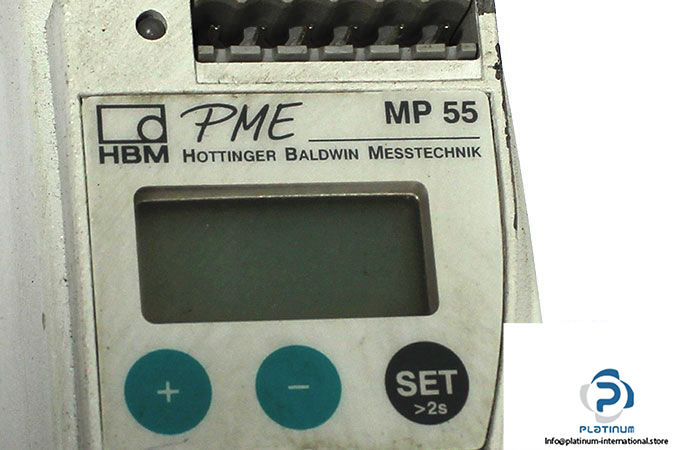

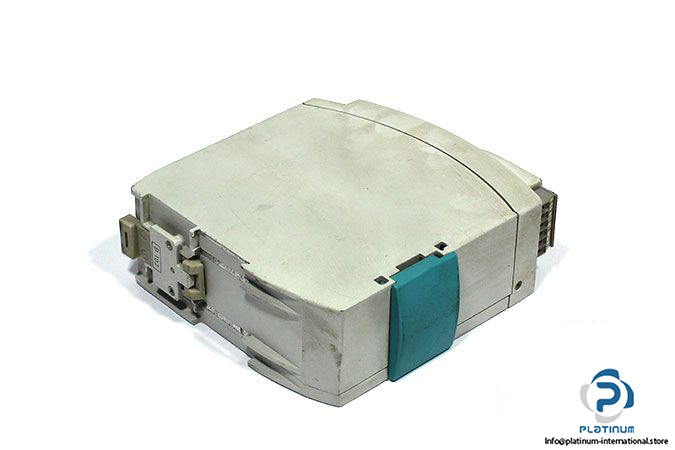

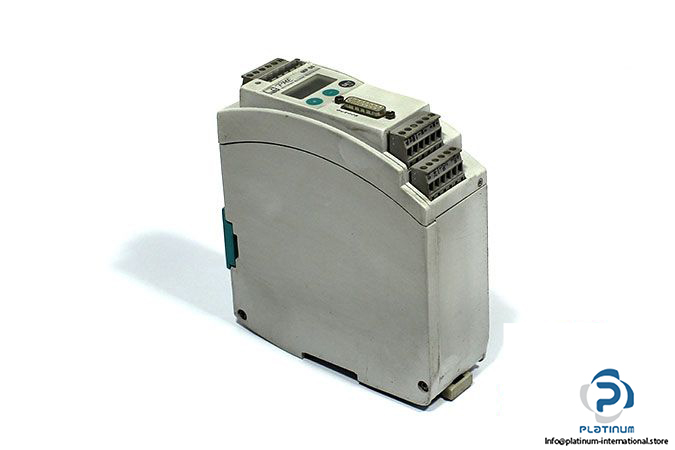

Manufacturer: HBM

Type: Amplifier Module

Model: MP55



Supply Voltage: 24 VDC

Carrier Frequency: 4.8 ± 1 %

Maximum Permitted Common Mode Voltage: ± 5 V

Maximum Differential Voltage: ± 30 mV

Linearity Deviation: 0.025 %

Measurement Frequency Range, Adjustable (-1 dB): 0.05…500 Hz

Response Time: 1 ms

Rated Temperature: 0…50 °C

Protection Class: IP20

Dimensions: 55 x 146 x 162 mm

Weight: 0.78 kg
