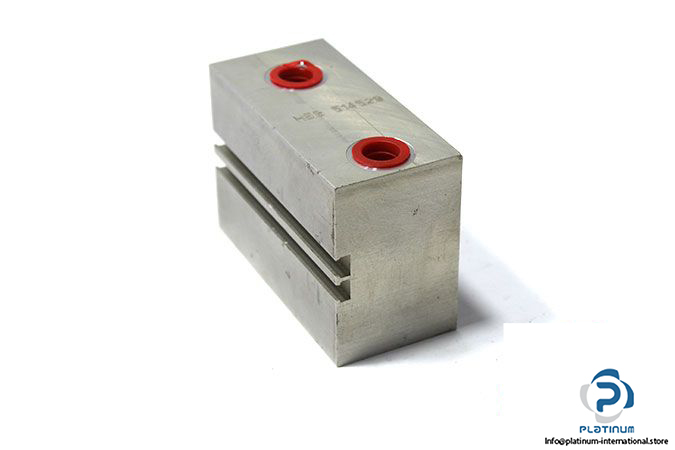

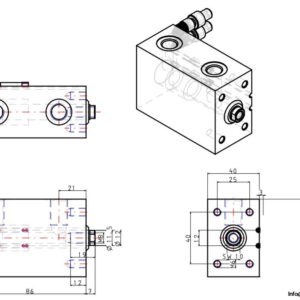

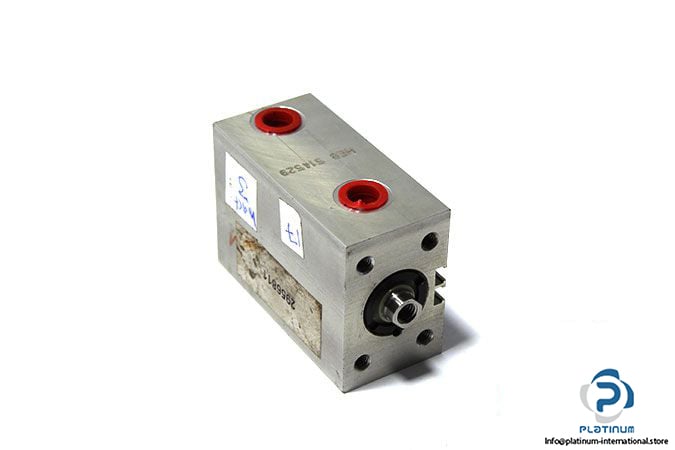

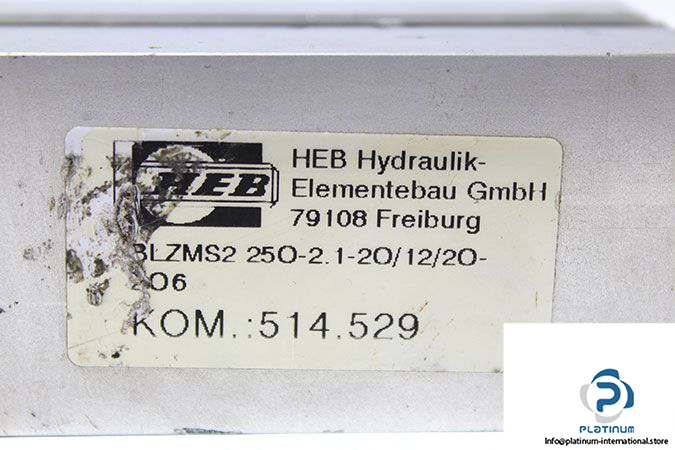

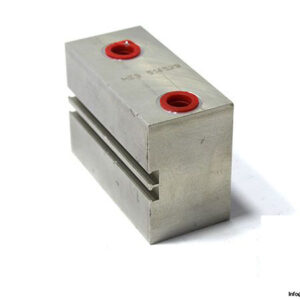

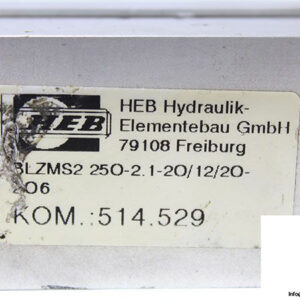

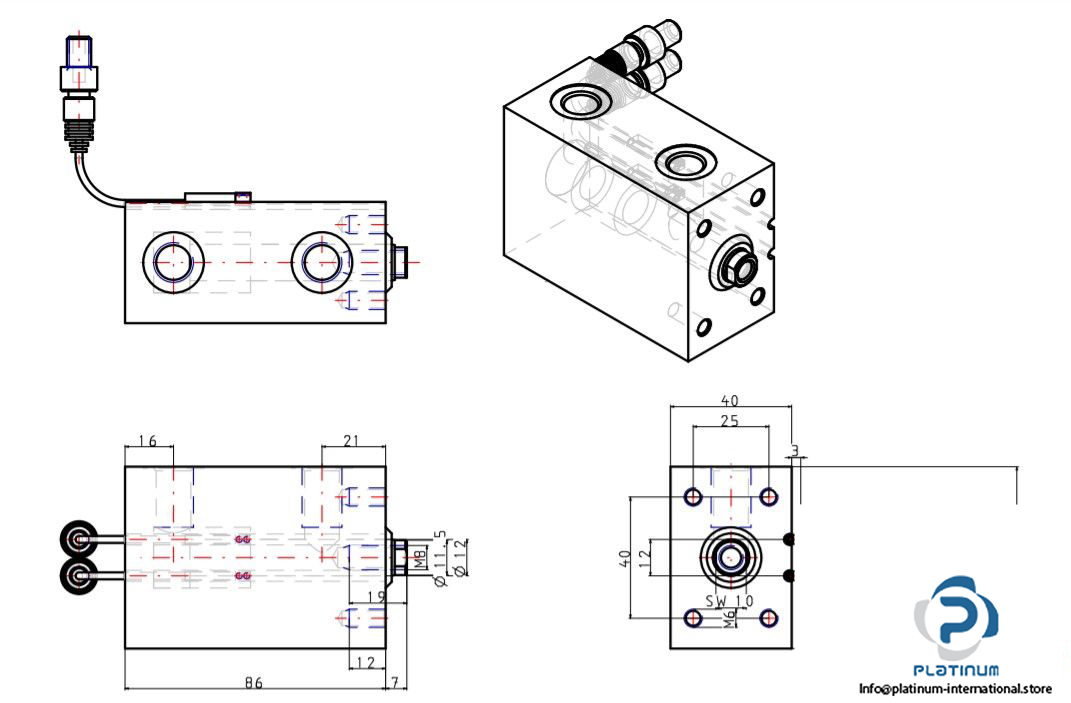

Manufacturer: HEB

Type: Hydraulic Block Cylinder

Model: BLZM 250-2.1-20/12/20-206

Piston Diameter: 20 mm

Rod Diameter: 12 mm

Stroke: 20 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Operating Nominal pressure: max. 500 bar

Piston rod end: Female threaded

Temperature range: 0 …. 180 °C

Connection: G ¼”

Weight: 0.6 kg
