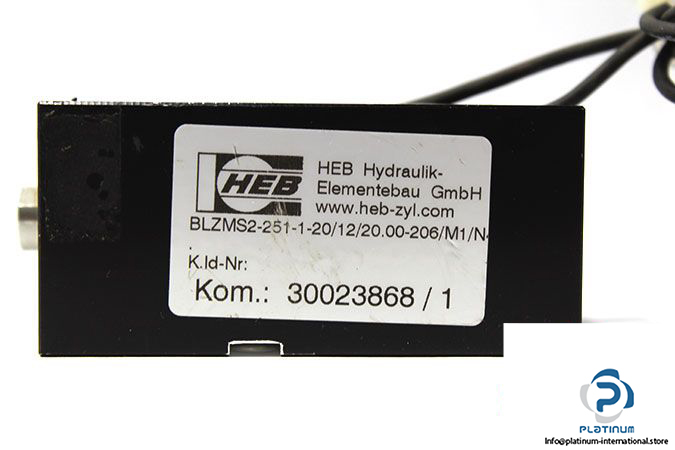

Manufacturer: HEB

Type: Hydraulic Block Cylinder with external magnetic field sensors

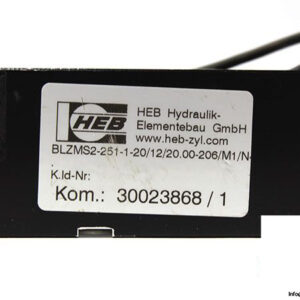

Model: BLZMS2-251-1-20/12/20.00-206/M1/N

MRN (KOM): 30023868

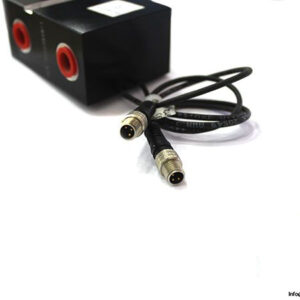

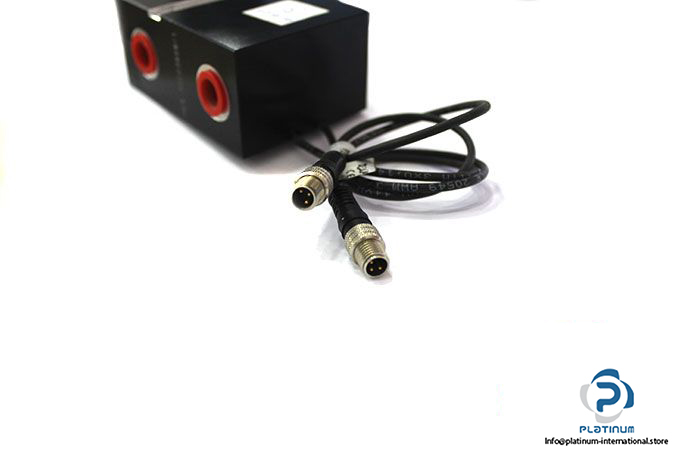

Sensor: IPF MZR40178 Magnetic Sensor

Piston Diameter: 20 mm

Rod Diameter: 12 mm

Stroke: 20 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Operating Nominal pressure: 250 bar

Piston rod thread: Female

Switch position / cylinder side: 2

Seal: Viton

Temperature range: 0 …. 200 °C

Connection: G ¼”

Weight: 0.6 kg
