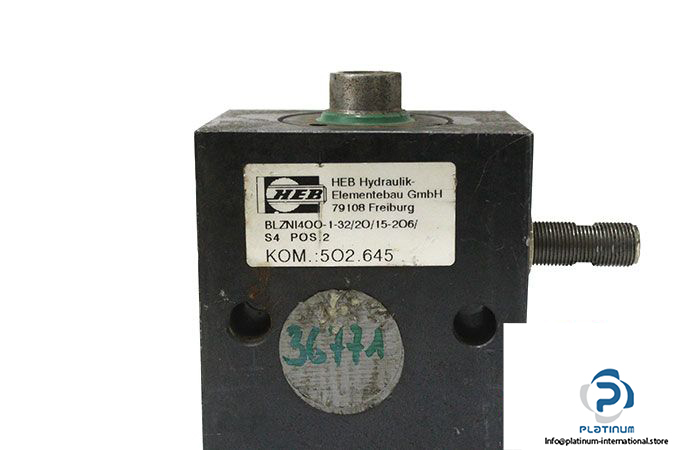

Manufacturer: HEB

Type: Hydraulic Block Cylinder

Model: BLZNI400-1-32/20/15-206/S4

Piston Diameter: 32 mm

Rod Diameter: 20 mm

Stroke: 15 mm

Sensor version: sensors with plug socket and right-angle plug, 3m cable

Cylinder Shape: Rectangle

Construction form: 1 – 2 cross borings, from 160 bar a support is necessary

Mode of operation: Double-Acting

Maximum operating pressure: 400 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: G ¼”

Weight: 2.6 kg
