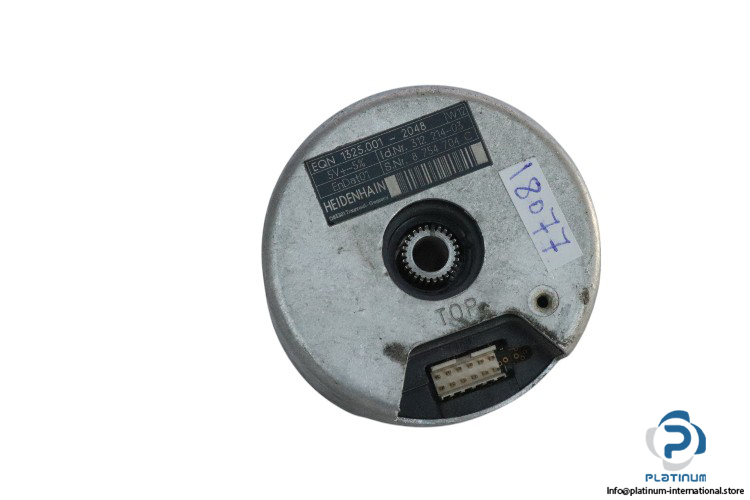

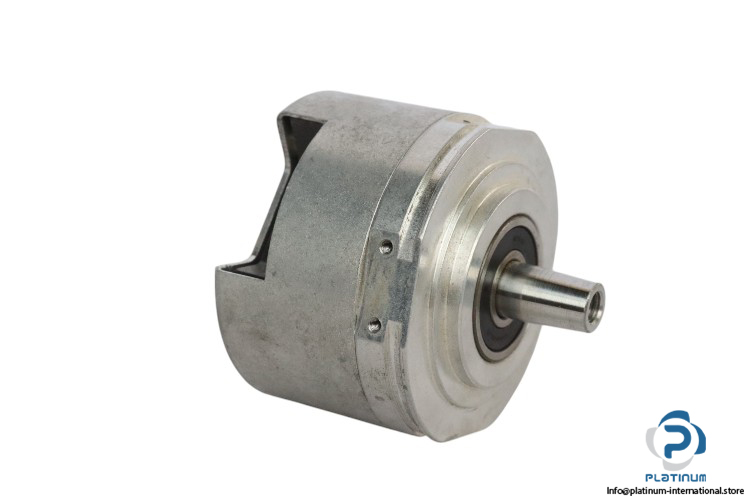

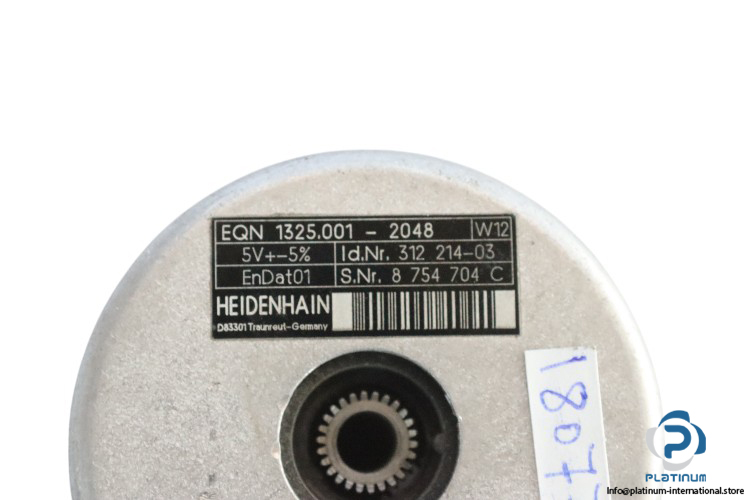

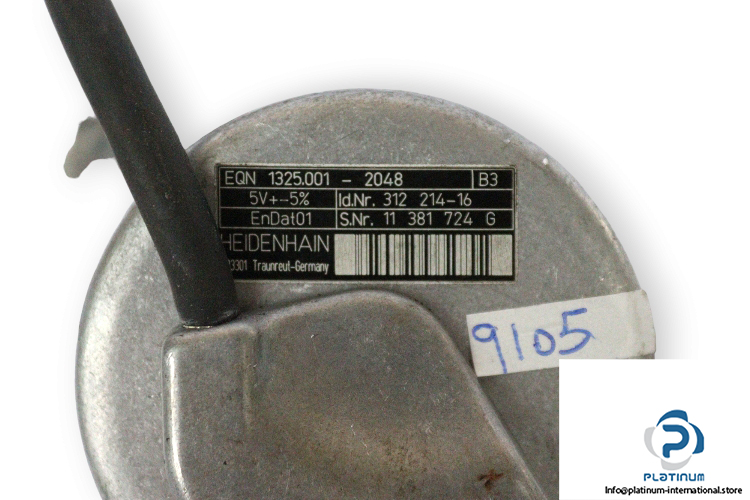

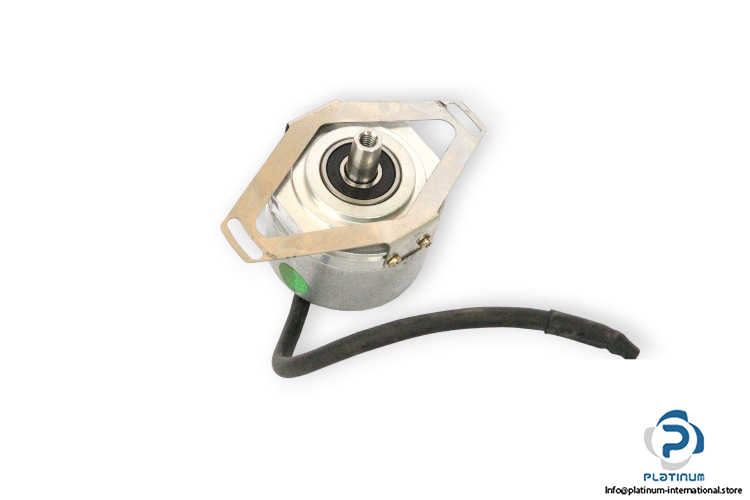

HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder with Tapered Shaft
The HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder is an advanced encoder designed for precise and reliable position measurement in various industrial applications. With a tapered shaft and a protection rating of IP40, it is built to handle harsh environments while providing excellent accuracy and performance.
This encoder features a 9.25 mm shaft diameter and operates with a supply voltage range from 3.6 V to 14 V DC. It has low power consumption, consuming a maximum of 0.7 W at 3.6 V and 0.8 W at 14 V, and a current consumption of 105 mA at 5V. The encoder provides position values of 8192 per revolution (13 bits) and 4096 revolutions (12 bits), ensuring high precision.
With a fast calculation time of 9 µs and a clock frequency of 2 MHz, the encoder ensures high-speed processing and real-time data feedback. It features a low starting torque of just 0.01 Nm at 20 °C, making it ideal for applications requiring smooth, low-speed operation. The wide operating temperature range from -40°C to 115°C allows for versatility in extreme conditions.
- Manufacturer: HEIDENHAIN
- Type: Absolute Rotary Encoder with Tapered Shaft
- Model: EQN 1325.001-2048
- Part No.: 312 214-03
- Shaft Diameter: 9.25 mm
- Ordering Designation: EnDat01
- Supply Voltage: 3.6 V to 14 V DC
- Power Consumption (Maximum): 0.7 W at 3.6 V, 0.8 W at 14 V
- Current Consumption: 105 mA at 5V
- Electrical Connection: 12-pin
- Position Values Per Revolution: 8192 (13 bits)
- Revolutions: 4096 (12 bits)
- Calculation Time: 9 µs
- Clock Frequency: 2 MHz
- Starting Torque: 0.01 Nm (at 20 °C)
- Protection Rating: IP40
- Operating Temperature: -40 to 115 °C
The HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder offers exceptional performance for industrial applications, ensuring high precision and reliability in the most demanding environments.
