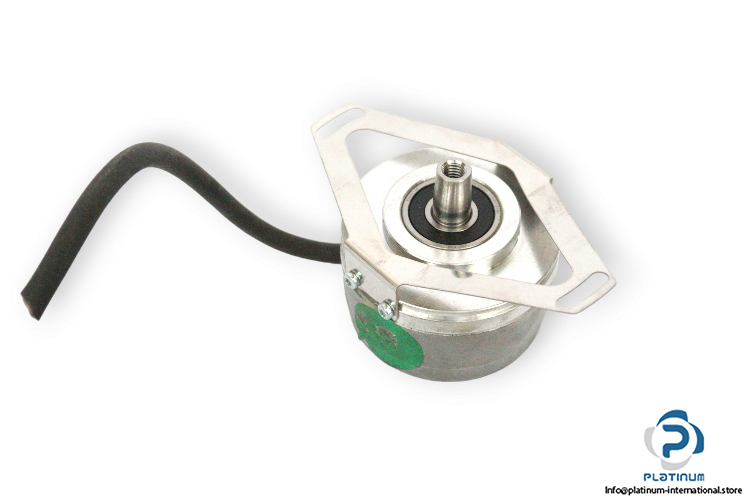

HEIDENHAIN EQN13250492048 ABSOLUTE ROTARY ENCODER

The Heidenhain EQN13250492048 is a high-precision absolute rotary encoder engineered for demanding industrial automation systems. Designed with a tapered shaft and EnDat01 interface, this encoder delivers precise positioning and reliable feedback in harsh environments.

Manufacturer: Heidenhain
Type: Absolute Rotary Encoder with Tapered Shaft
Model: EQN13250492048
ID No.: 655 251-03
Ordering Designation: EnDat01
SN: 38858049A
REF NO: N7

Technical Information

• Voltage: 3.6 … 14 V
• Speed: 1500 … 12 000 RPM
• Line Count: 2048 Lines
• Calculation Time: 9 µs
• Revolutions: 4096 (12 bits)
• Positions per Revolution: 8192
• Output Signal: Vpp
• Output Code: Binary
• Coupling Version: Without Coupling
• Connecting Direction: Cable Outlet for Axial and Radial Use
• Electrical Connection: 12 Pin
• Shaft: Tapered Shaft (9.25 mm); Taper: 1:10
• Operating Temperature: -40 … 115 °C
• Degree of Protection: IP40
