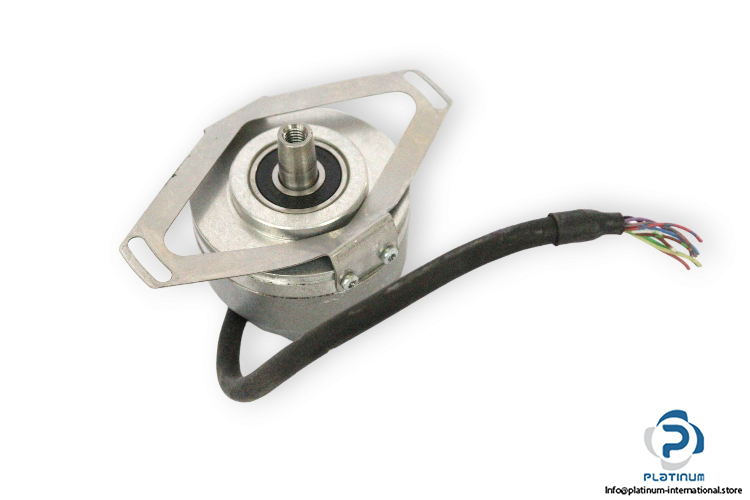

HEIDENHAIN EQN13250492048 ABSOLUTE ROTARY ENCODER

The Heidenhain EQN13250492048 is a high-precision absolute rotary encoder designed with a tapered shaft for accurate and stable feedback in dynamic industrial environments. It offers high-resolution positioning and robust performance for demanding automation systems.

Manufacturer: Heidenhain
Type: Absolute Rotary Encoders with Tapered Shaft

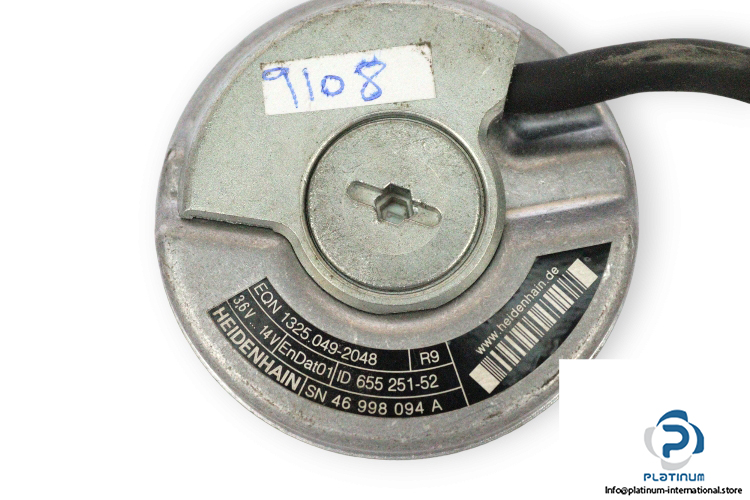

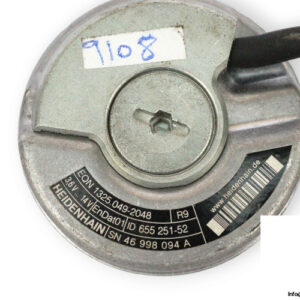

Model: EQN13250492048
ID No.: 655 251-52
Ordering Designation: EnDat01
Serial No.: 46998094A
Reference No.: R9

Technical Information

• Voltage: 3.6 … 14 V
• Speed: 1500 … 12 000 RPM
• Line Count: 2048 Lines
• Calculation Time: 9 µs
• Revolutions: 4096 (12 bits)
• Positions per Revolution: 8192
• Output Signal: Vpp
• Output Code: Binary
• Coupling Version: Without Coupling
• Connecting Direction: Cable Outlet for Axial and Radial Use
• Electrical Connection: 12 Pin
• Shaft: Tapered Shaft (9.25 mm), Taper: 1:10
• Operating Temperature: -40 … 115 °C
• Degree of Protection: IP40
