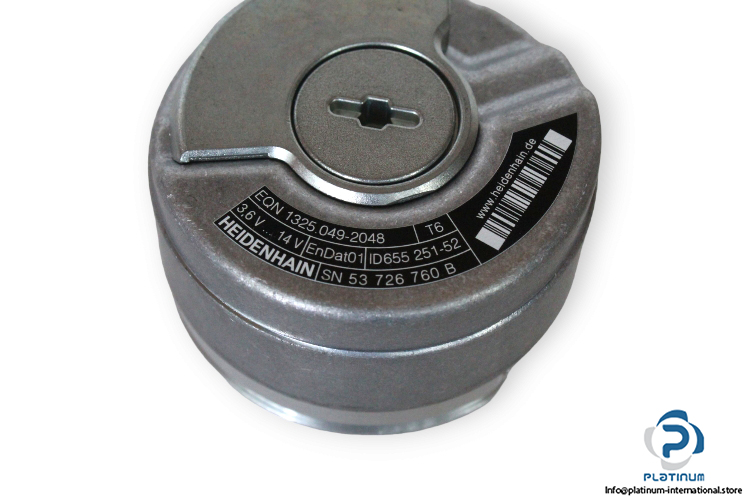

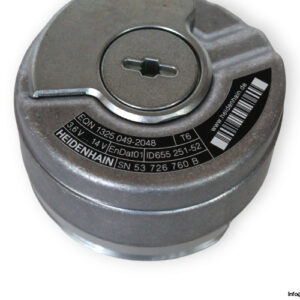

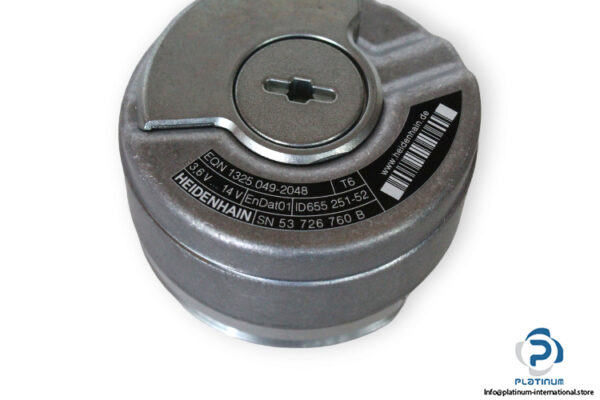

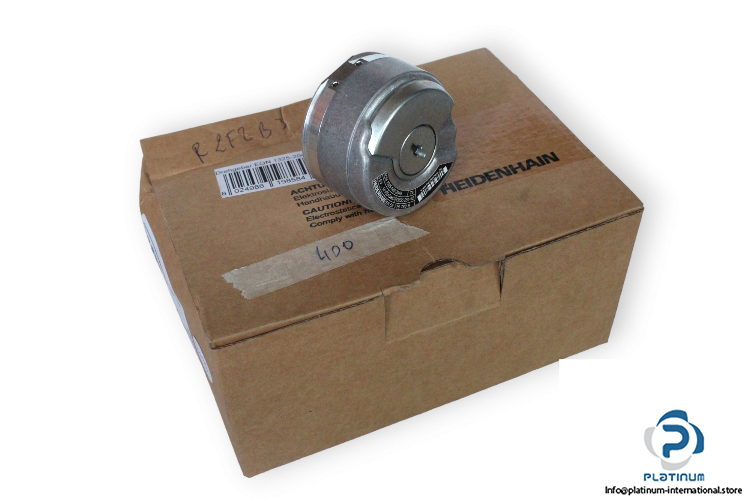

HEIDENHAIN EQN 1325.049-2048 ROTARY ENCODER
The HEIDENHAIN EQN 1325.049-2048 Rotary Encoder is a high-resolution absolute encoder ideal for demanding automation and motion control systems. With 2048 lines, 8192 position resolution, and EnDat 01 interface, it ensures precise feedback even at high rotational speeds. This robust encoder is designed to operate in extreme temperature conditions and is well-suited for a wide range of industrial applications.
Manufacturer: HEIDENHAIN
Type: Rotary Encoder
Model: EQN 1325.049-2048
ID No.: 655 251-52
SN: 53 726 760 B
Reference No.: EQN 1325 2048 62S12-78 K 0,00 65B / 40 09 D ENDAT01 37 01
Technical Information
- Supply Voltage: 3.6 / 14 VDC
- Interface: EnDat 01
- Lines: 2048
- Position: 8192 (13 bits)
- Revolutions: 4096 (12 bits)
- Mechanical Permissible Speed (n): 12 000 rpm
- Connection: 12-pin
- Operating Temperature: -40 / 115°C
