HEIDENHAIN LS 487C / AE LS 487C INCREMENTAL LINEAR ENCODER

heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-1
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-2
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-3
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-1
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-2
heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-3

HEIDENHAIN LS 487C / AE LS 487C INCREMENTAL LINEAR ENCODER

INCREMENTAL LINEAR ENCODER

HEIDENHAIN LS487C / AELS487C offers 720 mm measuring length, 5 µm accuracy, and IP65 protection. Ideal for precise linear measurement in industrial automation environments.

SKU: 1034880 Category: Tags: , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

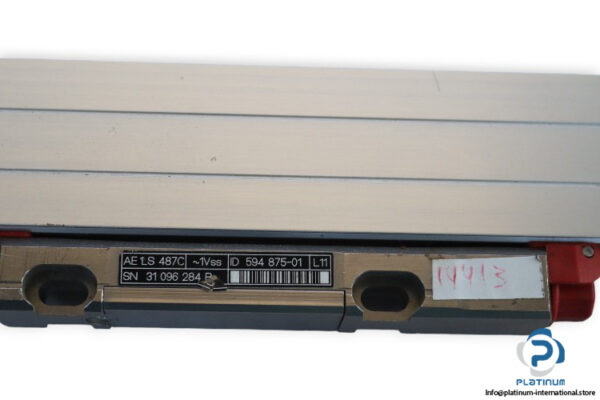

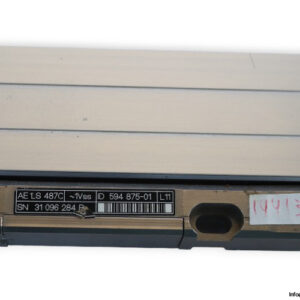

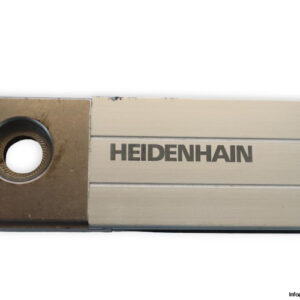

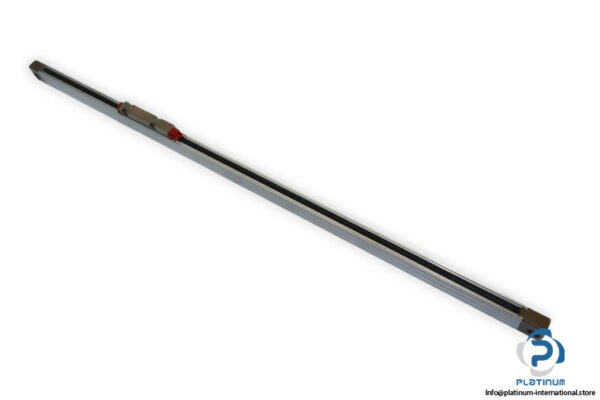

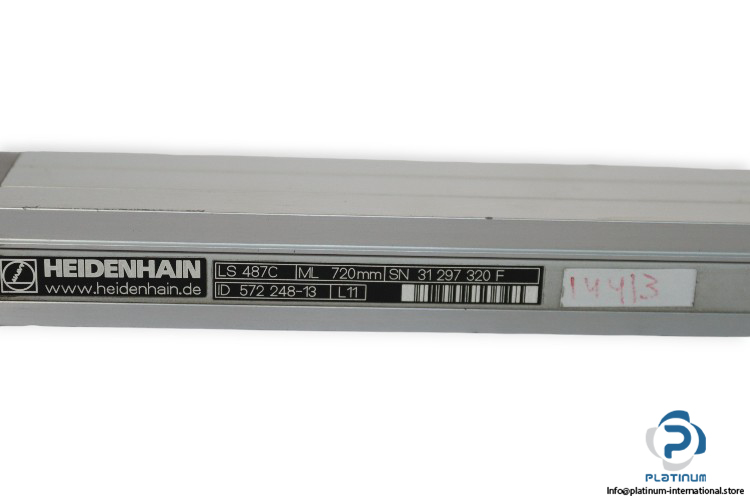

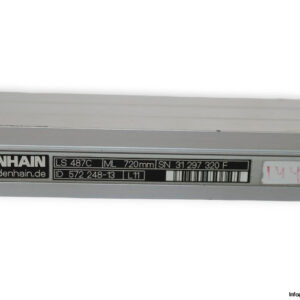

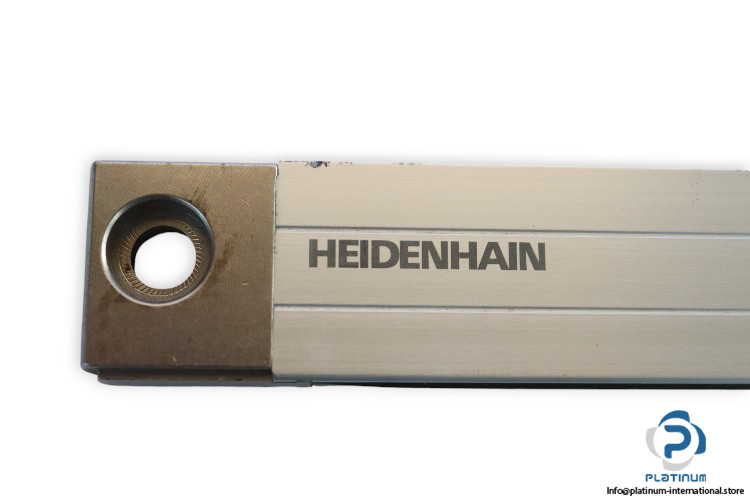

HEIDENHAIN LS487C / AELS487C INCREMENTAL LINEAR ENCODER

The HEIDENHAIN LS487C / AELS487C is a high-precision incremental linear encoder built for industrial-grade motion control and positioning systems. With a measuring length of 720 mm and an accuracy of 5 µm, it ensures reliable performance in automation and metrology applications.

Manufacturer: HEIDENHAIN
Type: Incremental Linear Encoder
Model: LS487C / AELS487C
Part No.: 57224813 / 59487501
Serial No.: 31 297 320 F

Technical Information

  • Measuring Length (ML): 720 mm
  • Accuracy: 5 µm
  • Grating Period: 20 µm
  • Supply Voltage: 5 V
  • Interface: 1Vss
  • Electrical Connection: Flange Socket, Male 14-Pin
  • Material: Metal
  • Protection Class: IP65
  • Operating Temperature: 5 / 50 °C
  • Dimensions: 32.2 x 720 x 18 mm
Weight0,54 kg
Condition

Manufacturer

Type of Product

Shelf No.

Model
