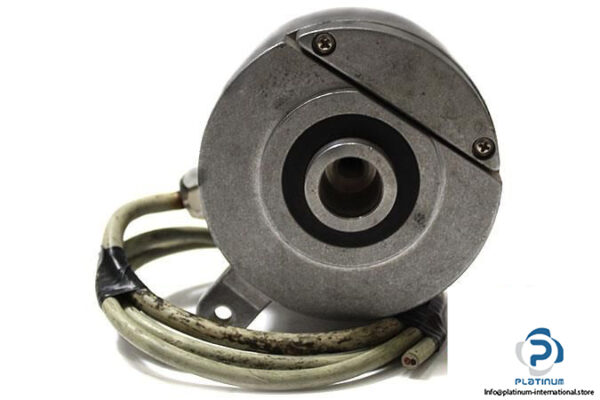

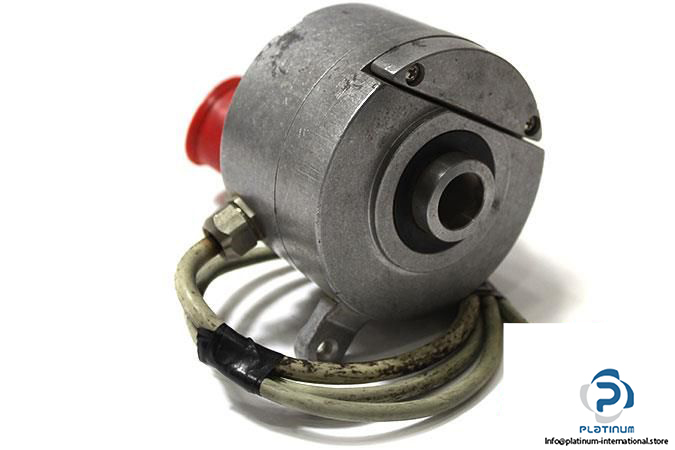

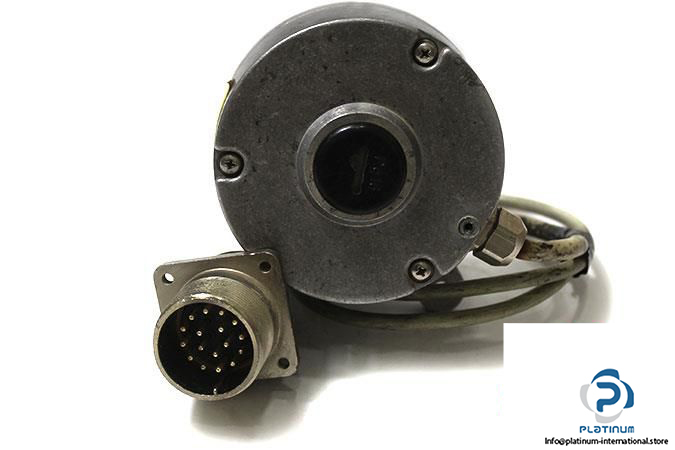

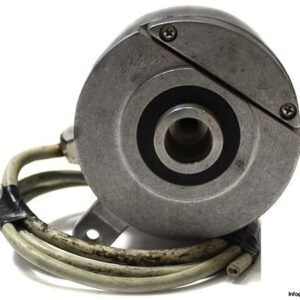

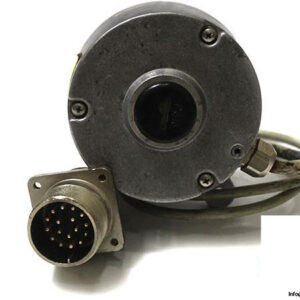

HEIDENHAIN ROD-323.002-1024 INCREMENTAL ENCODER
The HEIDENHAIN ROD-323.002-1024 is a precision-engineered incremental encoder, ideal for automation systems and industrial control environments requiring accurate rotary position feedback. Designed with a hollow shaft and TTL signal output, it combines reliability and high-speed performance.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

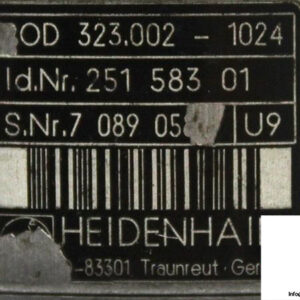

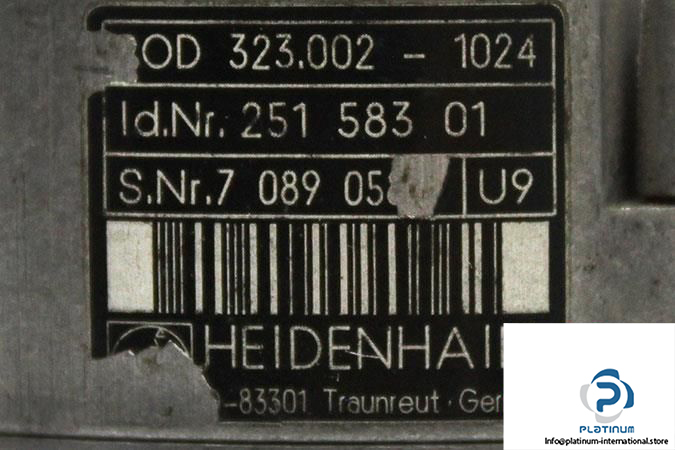

Model: ROD-323.002-1024
ID No.: 251 583-01
Technical Information
- Shaft Design: Hollow Shaft
- Shaft Diameter: 15 mm
- Voltage Supply: 5 VDC
- Resolution: 1024 Pulse per revolution (PPR)
- Signal Output: TTL (RS 422)
- Max Speed: 8500 rpm
- Max Pulse Frequency: 300 kHz
- Protection Class: IP 64
- Max Temperature: 100 °C
