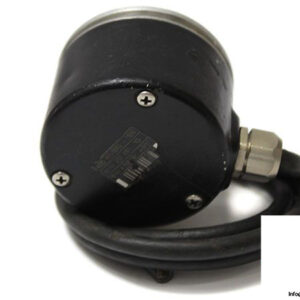

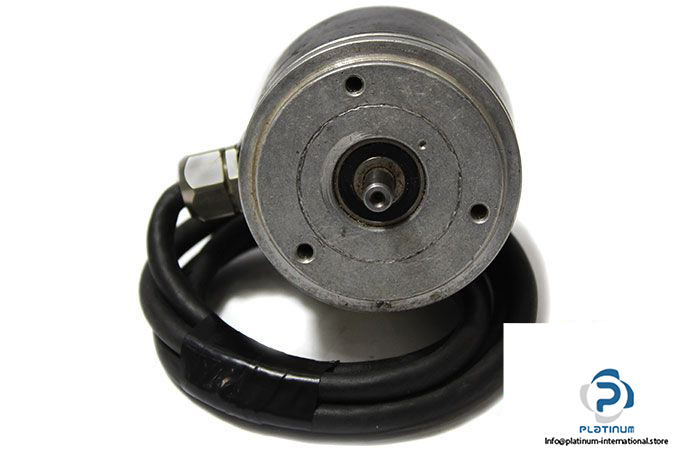

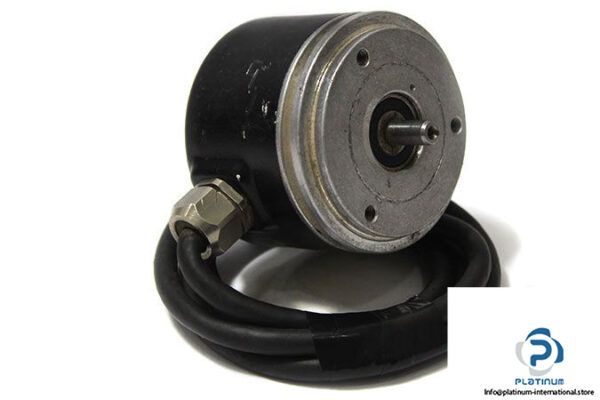

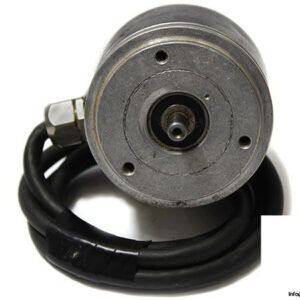

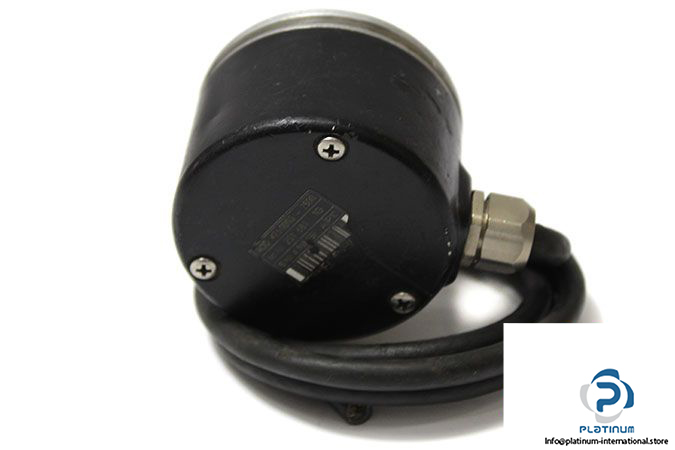

HEIDENHAIN ROD 426.0003-2500 INCREMENTAL ENCODER
The HEIDENHAIN ROD 426.0003-2500 is a precision-engineered incremental encoder designed for high-speed, high-resolution industrial motion control systems. With a solid shaft and synchro flange, it offers reliability, speed, and consistent signal output.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

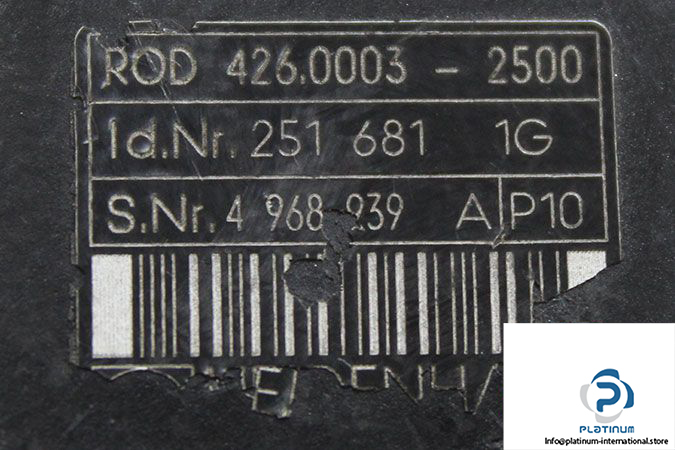

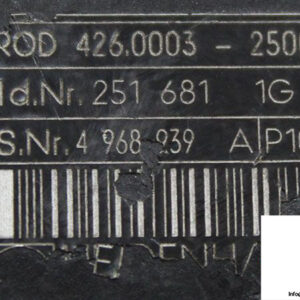

Model: ROD 426.0003-2500
ID No.: 251 681 1G
S No.: 4 968 939 A
Technical Information
- Flange Design: Synchro flange
- Shaft Design: Solid shaft
- Shaft Diameter: 6 mm
- Voltage Supply: 5 VDC
- Resolution: 2500 PPR (Pulse per revolution)
- Max. Current Consumption: 120 mA
- Signal Output: TTL (RS 422)
- Max Speed: 16000 rpm
- Max. Pulse Frequency: 300 kHz
- Protection Class: IP67 at housing, IP64 at shaft inlet
- Max Temperature: 100 °C
