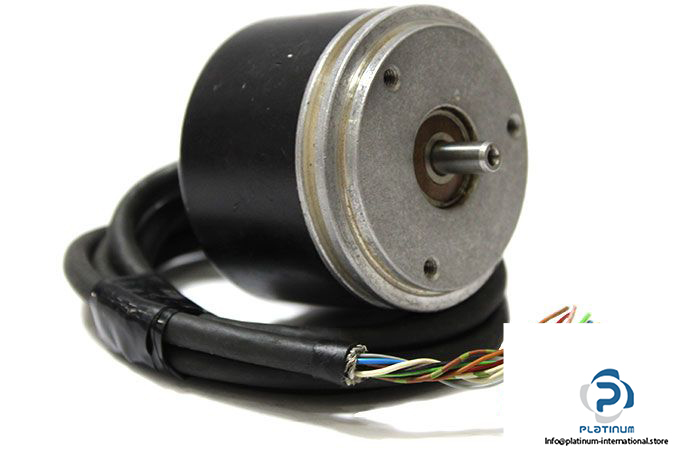

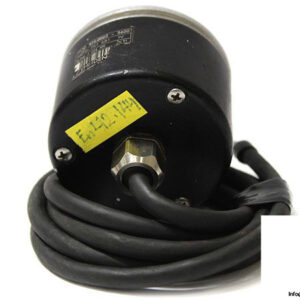

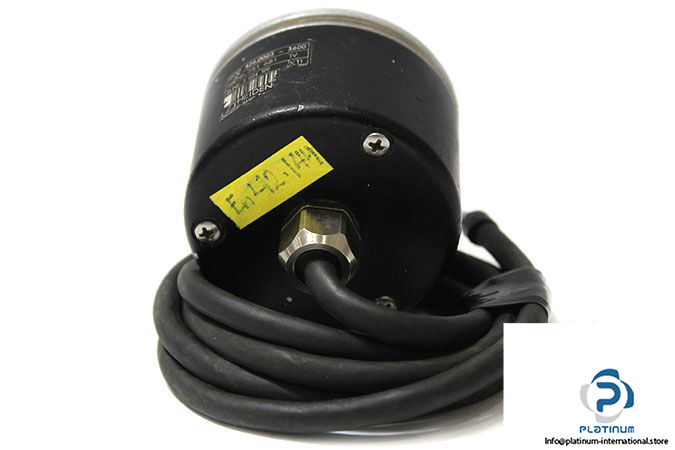

HEIDENHAIN ROD 426.0003-3600 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426.0003-3600 is a high-precision incremental encoder designed for demanding industrial automation systems. Engineered for accuracy and durability, it offers high-resolution feedback and is suitable for high-speed rotational monitoring.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

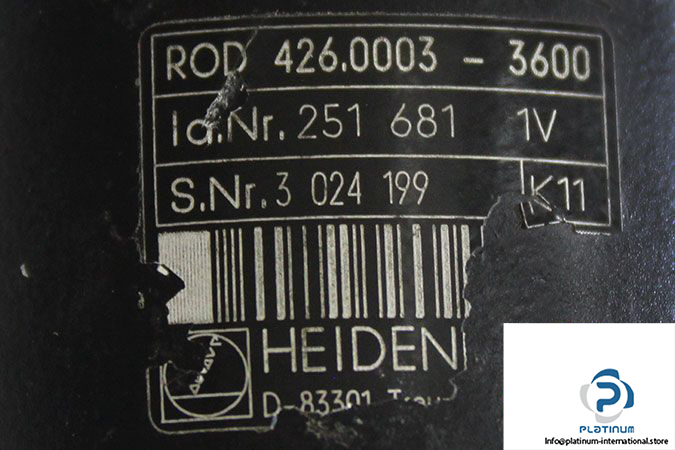

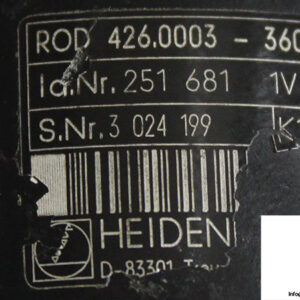

Model: ROD 426.0003-3600
ID No.: 251 681 1V
Serial No.: 3 024 199

Technical Information

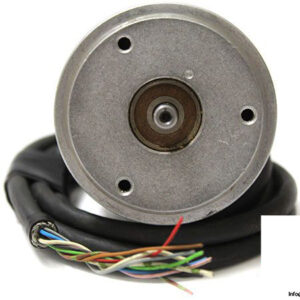

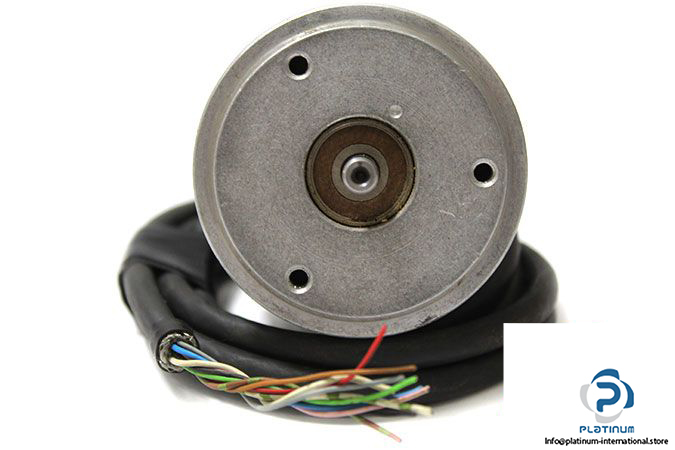

• Flange Design: Synchro flange
• Shaft Design: Solid shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 3600 Pulses per Revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max Speed: 16000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP67 (housing), IP64 (shaft inlet)
• Max Temperature: 100 °C
