HEIDENHAIN ROD 426 1024 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426 1024 is a high-precision incremental encoder designed to deliver reliable performance in industrial automation systems. With a 1024 PPR resolution, TTL output, and solid shaft design, it ensures accurate signal feedback for motion control applications.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder
Model: ROD 426 1024

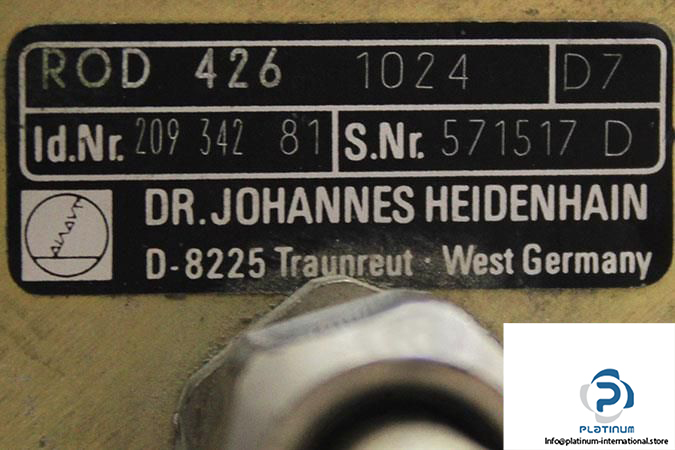

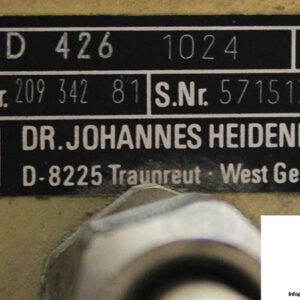

ID No.: 209 342 81
S/N: 571517 D

Technical Information

• Flange Design: Synchro Flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 1024 Pulses per Revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max Speed: 16000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP67 at housing, IP64 at shaft inlet (IP66 upon request)
• Max Temperature: 100 °C
