HEIDENHAIN ROD 426 2500 03S12-03 INCREMENTAL ENCODER


HEIDENHAIN ROD 426 2500 03S12-03 INCREMENTAL ENCODER

INCREMENTAL ENCODER

HEIDENHAIN ROD 426 2500 03S12-03 is a high-resolution incremental encoder offering 2500 PPR with TTL output, 5 VDC supply, IP66 protection, and 16000 rpm speed for reliable industrial feedback control.

SKU: 966112 Category: Tags: , , , , , , , , , , , , , , , , , , , ,
Out of stock
This item is currently unavailable.

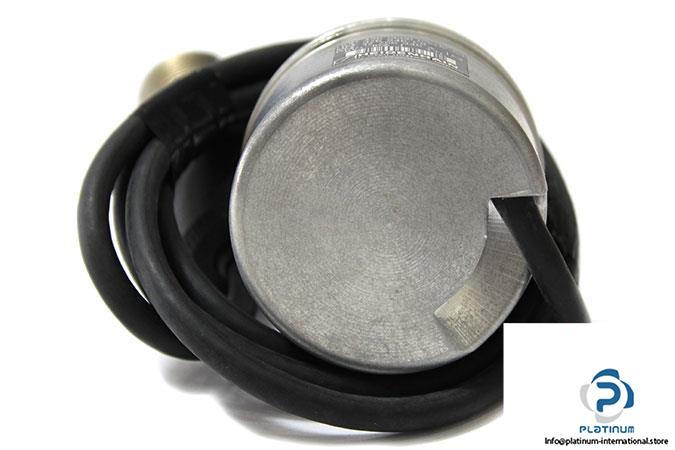

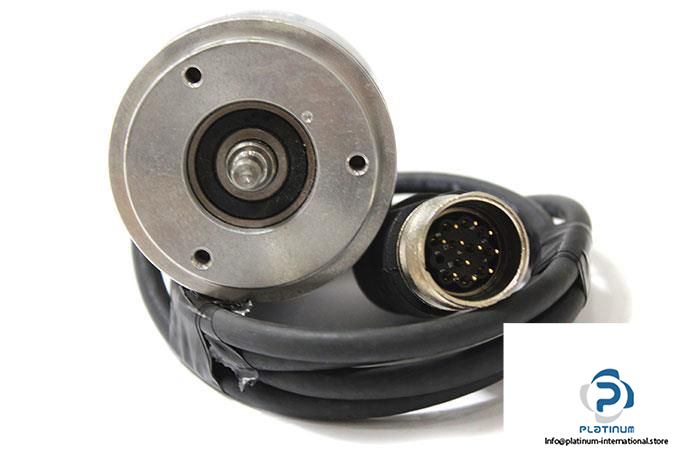

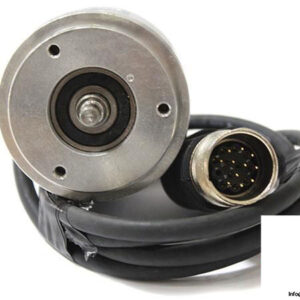

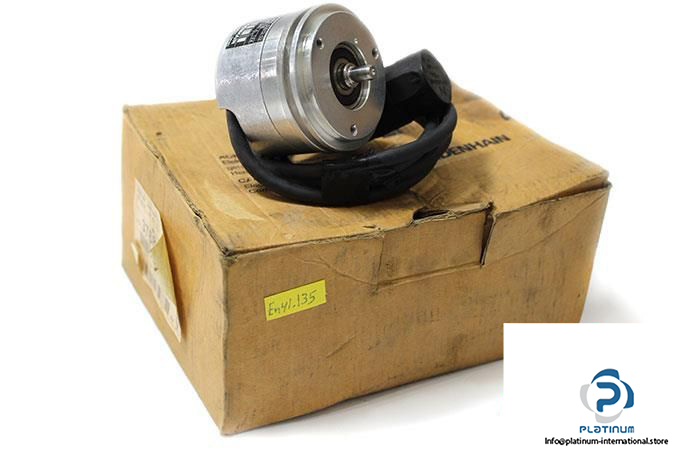

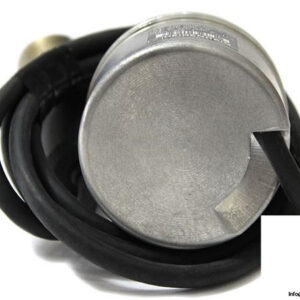

HEIDENHAIN ROD 426 2500 03S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426 is a high-resolution incremental encoder designed for precision motion control systems. With a resolution of 2500 PPR and robust construction, it™s ideal for demanding industrial environments requiring accurate feedback and reliable performance.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

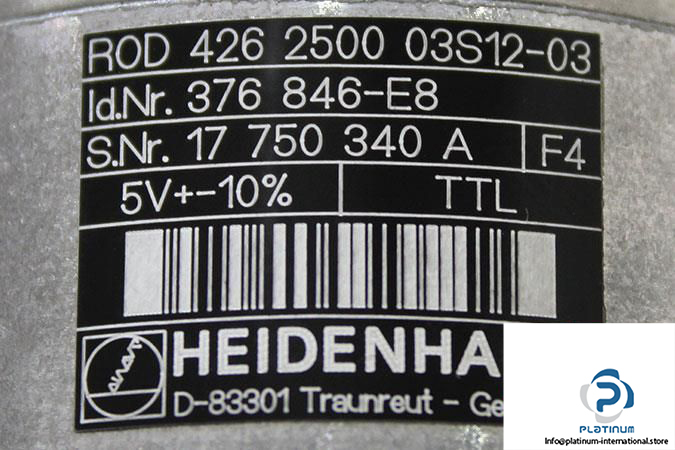

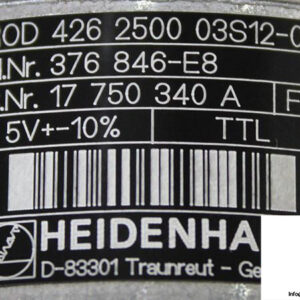

Model: ROD 426 2500 03S12-03
ID No.: 376 846-E8
Serial No.: 17 750 340 A

Technical Specifications

  • Flange Design: Synchro flange
  • Shaft Design: Solid shaft
  • Shaft Diameter: 6 mm
  • Voltage Supply: 5 VDC
  • Resolution: 2500 Pulse per Revolution (PPR)
  • Max. Current Consumption: 120 mA
  • Signal Output: TTL (RS 422)
  • Max Speed: 16000 rpm
  • Max. Pulse Frequency: 300 kHz
  • Protection Class: IP 66
  • Temperature Range: -40 / 100 °C
Weight0,3 kg
