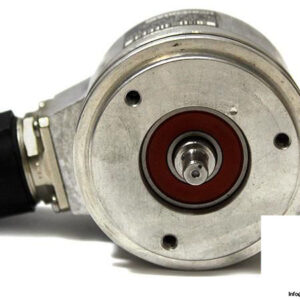

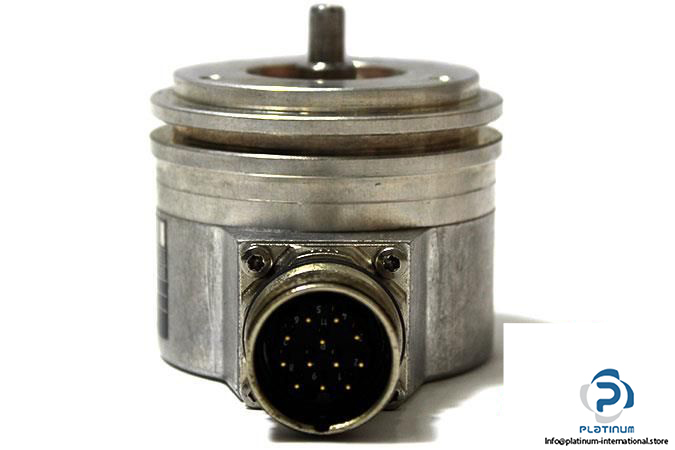

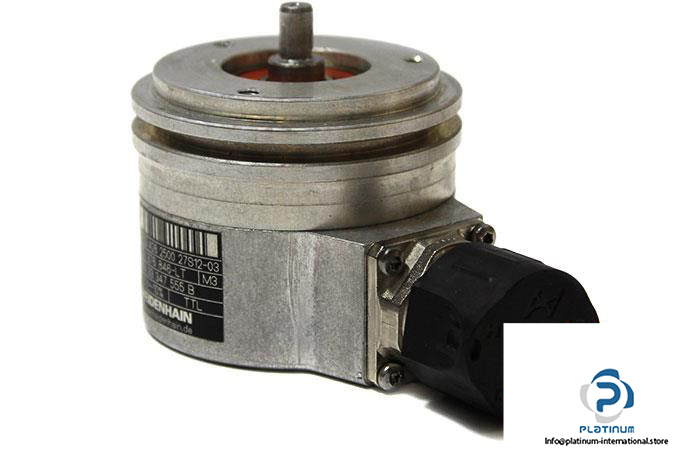

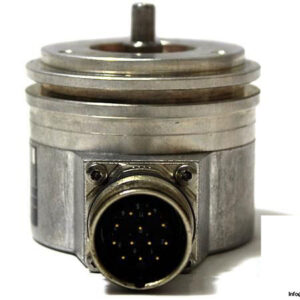

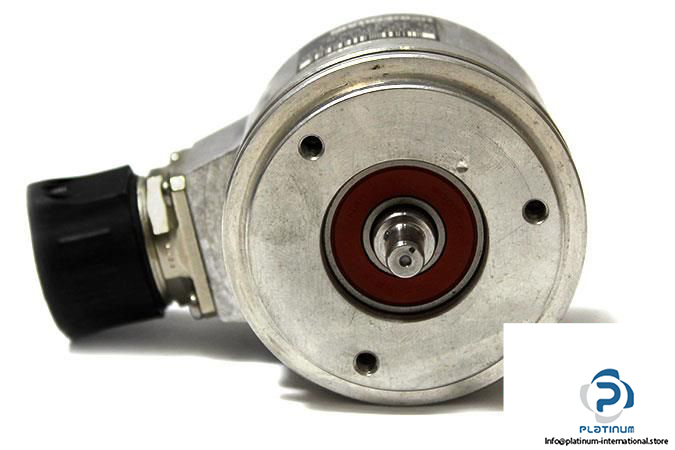

HEIDENHAIN ROD 426 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426 2500 27S12-03 is a high-performance incremental encoder built for precision positioning and motion control in demanding industrial environments. With a robust design and high resolution of 2500 PPR, it ensures reliable signal output and long-term accuracy, suitable for integration into advanced automation systems.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

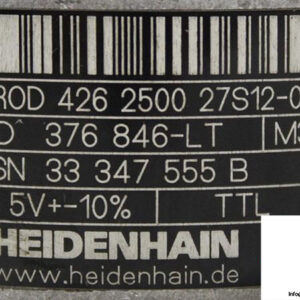

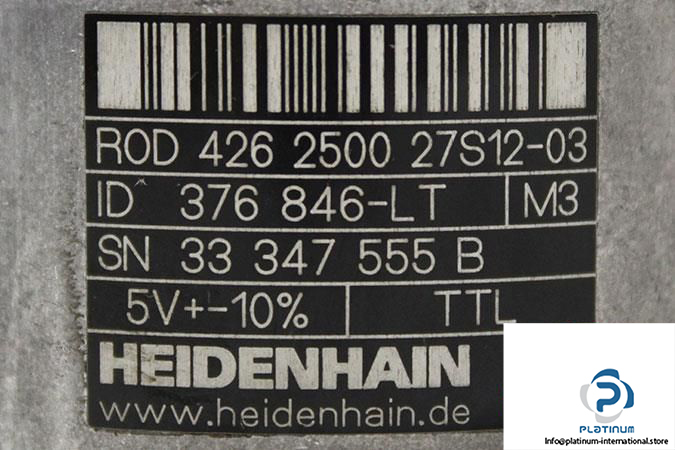

Model: ROD 426 2500 27S12-03
ID: 376 846-LT
S No.: 33 347 555 B

Technical Information

• Flange Design: Synchro flange
• Shaft Design: Solid shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 2500 Pulse per revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max Speed: 16000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP67 at housing, IP64 at shaft inlet
• Max Temperature: 100 °C
