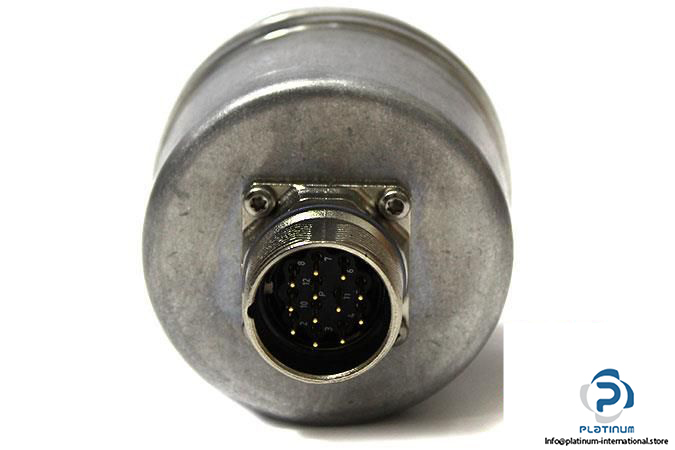

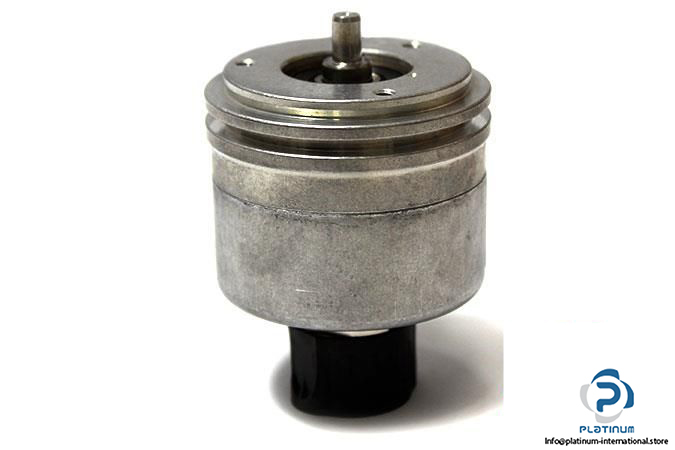

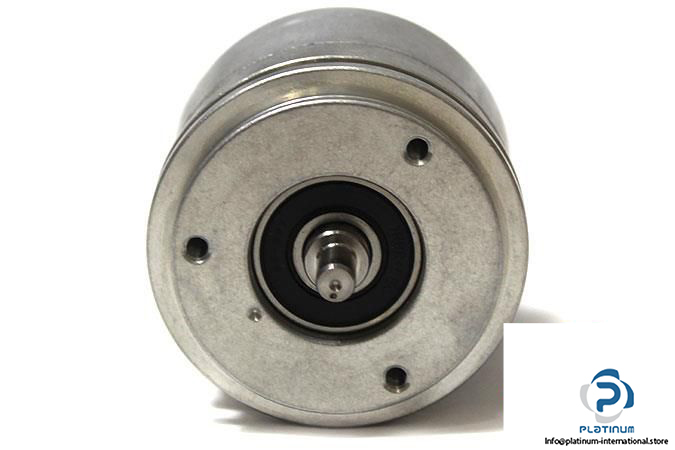

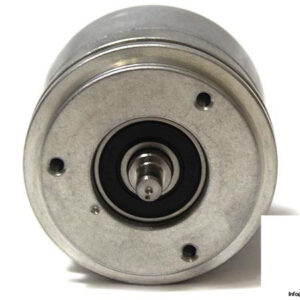

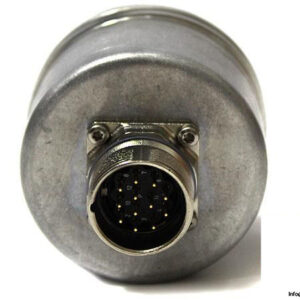

HEIDENHAIN ROD 426 3600 27S12-03 INCREMENTAL ENCODER
The HEIDENHAIN ROD 426 is a high-resolution incremental encoder engineered for precision motion control systems. With a solid shaft design and TTL signal output, this encoder offers reliable performance in demanding industrial environments.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

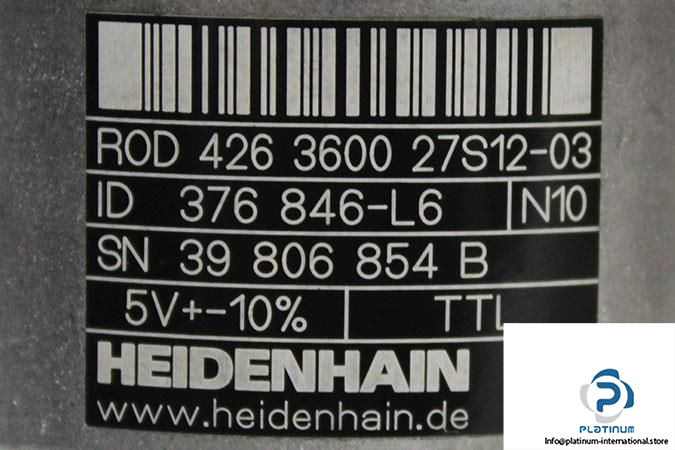

Model: ROD 426 3600 27S12-03
ID: 376 846-L6
SN: 39 806 854 B
Technical Information
- Flange Design: Synchro flange
- Shaft Design: Solid shaft
- Shaft Diameter: 6 mm
- Voltage Supply: 5 VDC
- Resolution: 3600 Pulse per revolution (PPR)
- Max. Current Consumption: 120 mA
- Signal Output: TTL (RS 422)
- Max Speed: 16000 rpm
- Max. Pulse Frequency: 300 kHz
- Protection Class: IP67 at housing, IP64 at shaft inlet
- Max Temperature: / 100 °C
