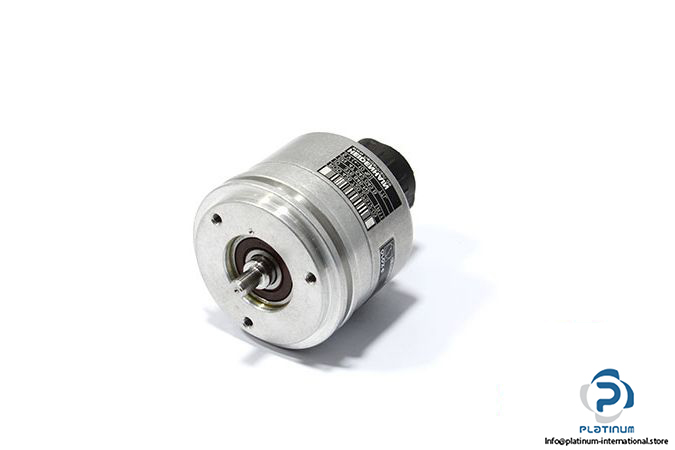

HEIDENHAIN ROD42672027S12-03 INCREMENTAL ENCODER

The Heidenhain ROD42672027S12-03 is a high-precision incremental encoder designed for industrial automation systems that demand accurate position feedback and robust mechanical reliability. With TTL interface and IP-rated protection, it is ideal for harsh environments and high-speed applications.

Manufacturer: Heidenhain
Type: Incremental Encoder

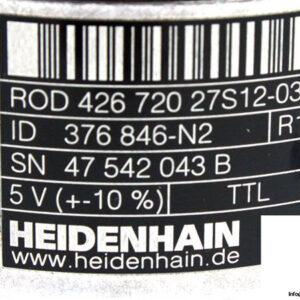

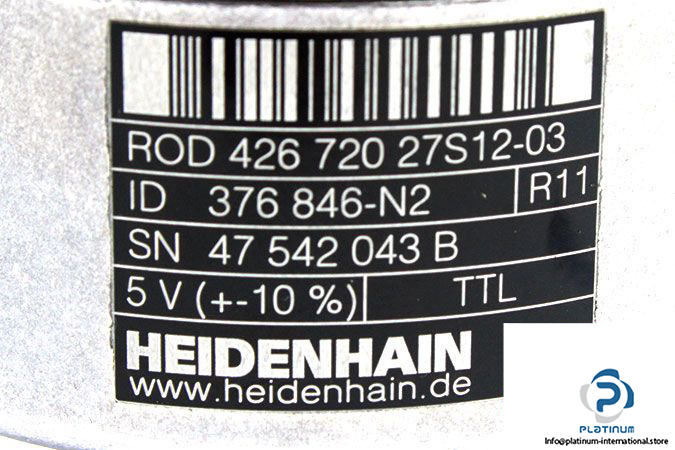

Model: ROD42672027S12-03
Part No.: 376846-N2
Serial No.: 47 542 043 B

Technical Information

• Shaft Type: Solid
• Mounting: Synchro Flange
• Shaft Diameter: 6 mm
• Mechanical Permissible Speed: 16000 rpm
• Voltage: 5 V DC
• Current Consumption Without Load: 120 mA
• Interface: TTL
• Housing Diameter: 56 mm
• Protection (EN 60 529): IP67 at housing, IP64 at shaft inlet

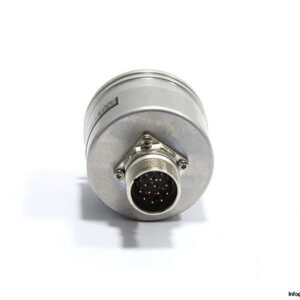

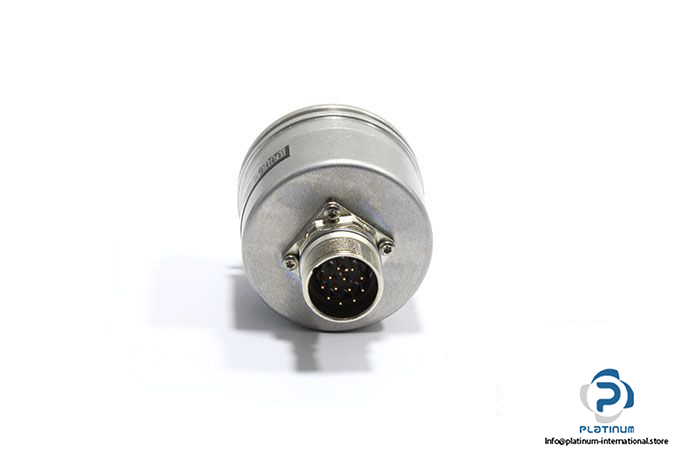

• Electrical Connection: Connector M23
• Max. Operating Temperature: 100 °C
