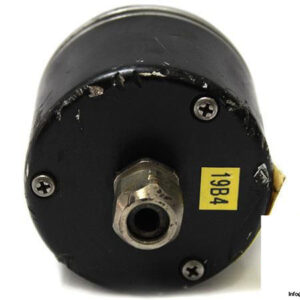

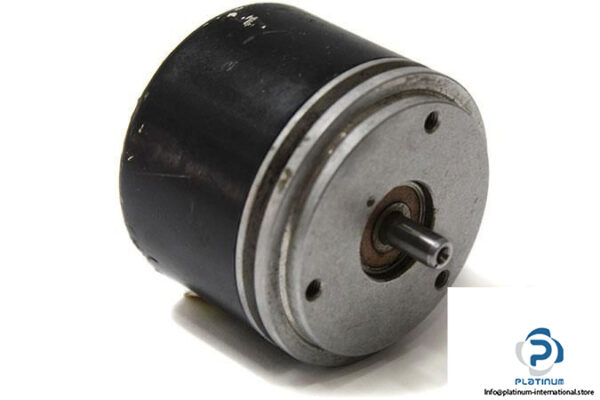

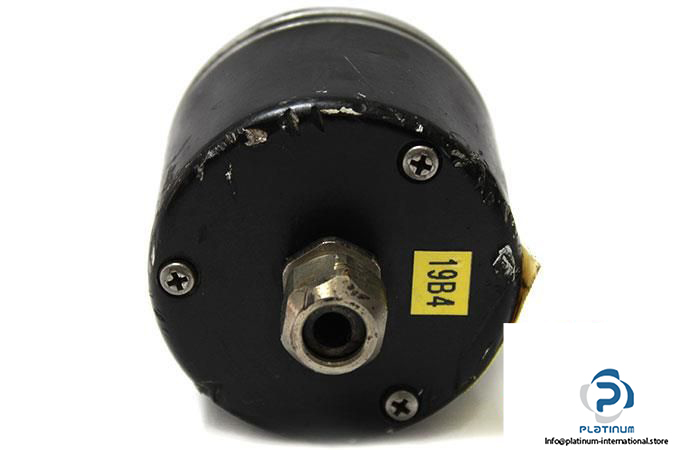

HEIDENHAIN ROD 426E-360 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426E-360 is a precision-engineered incremental encoder, designed for high-speed industrial automation and motion control applications. With robust protection and high-resolution output, it ensures accurate position feedback in demanding environments.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

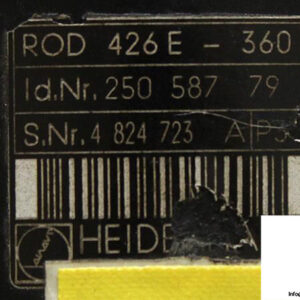

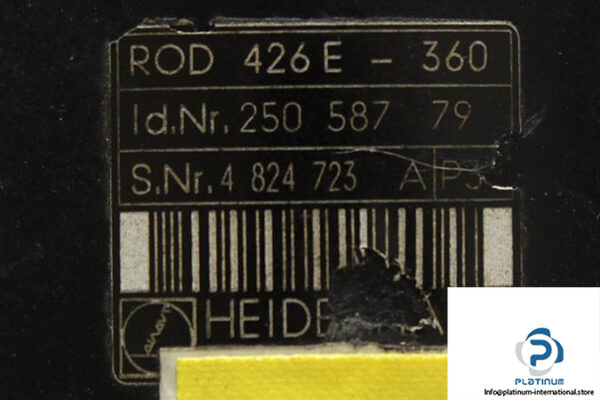

Model: ROD 426E-360
ID No.: 250 587 79
Serial No.: 4 824 723 A

Technical Information

• Flange Design: Synchro Flange

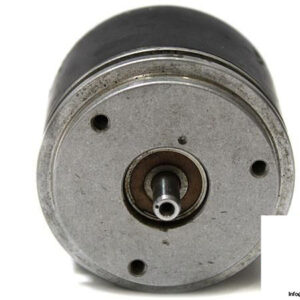

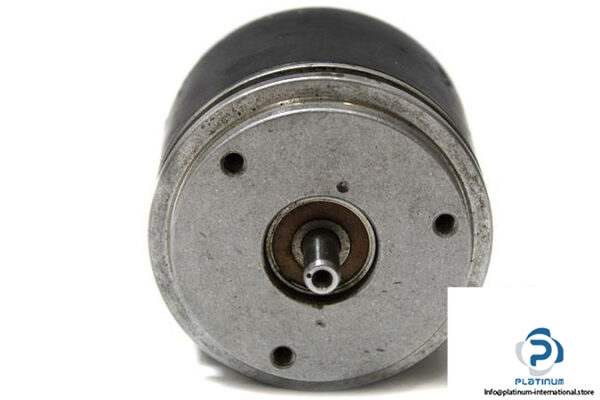

• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 360 Pulses per Revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max. Speed: 16000 RPM
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP 66
• Max. Temperature: 100 °C
