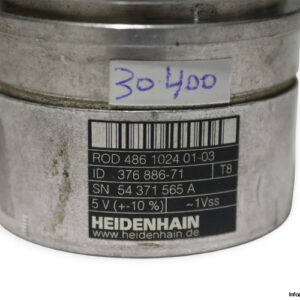

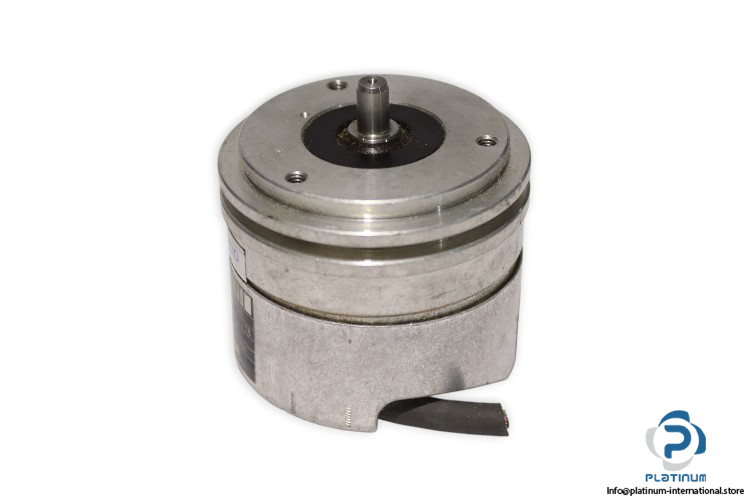

Heidenhain ROD 486 1024 01-03 Incremental Encoder
The Heidenhain ROD 486 1024 01-03 is a precision incremental encoder designed for accurate motion feedback in industrial automation systems. With high line count resolution, robust design, and solid shaft construction, it delivers reliable performance under demanding conditions.

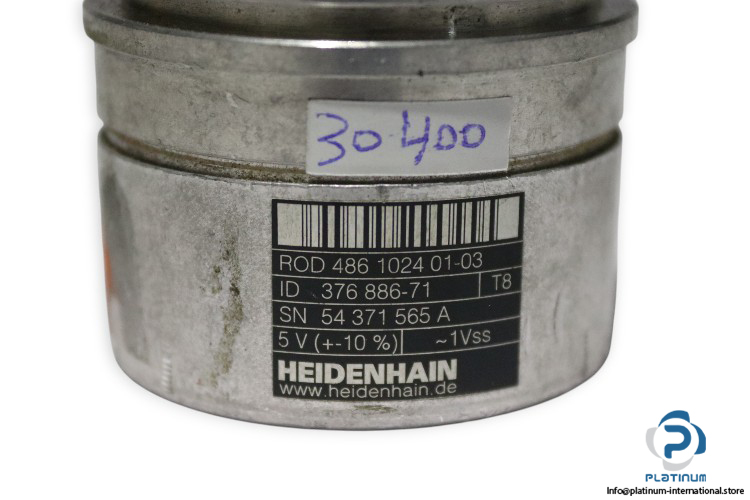

Manufacturer: Heidenhain
Type: Incremental Encoder
Model: ROD 486 1024 01-03
ID No.: 376 886-71 T8
SN: 54371565 A
Technical information
- Voltage: 5 V (±10 %)
- Interface: ~1 Vss
- Line Count: 1024 pulses per revolution (PPR)
- Current Consumption (without load): 120 mA
- Shaft: Solid shaft, 6 mm
- Speed: 16000 rpm
- Temperature Range: ¢ Min. Flange socket or fixed cable: -40 °C ¢ Moving cable: -10 °C / Max. 100 °C
