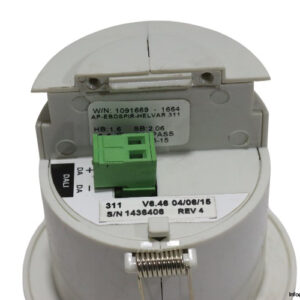

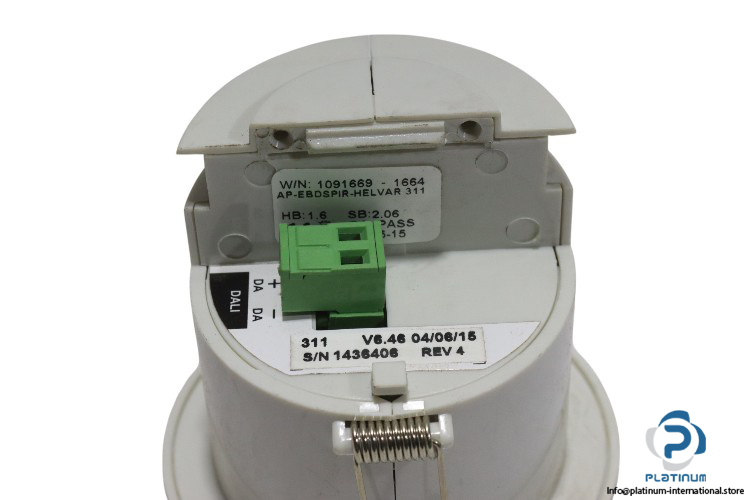

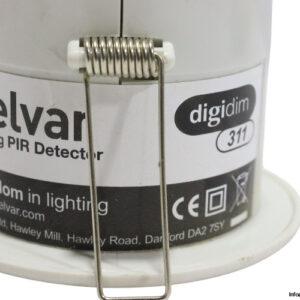

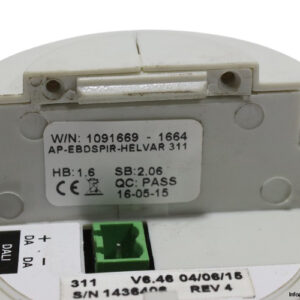

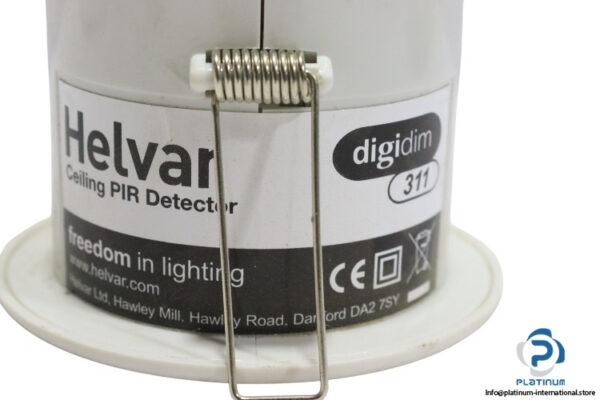

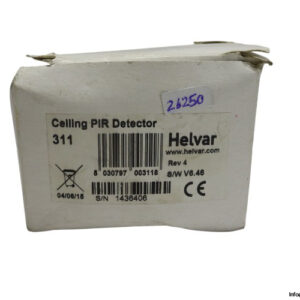

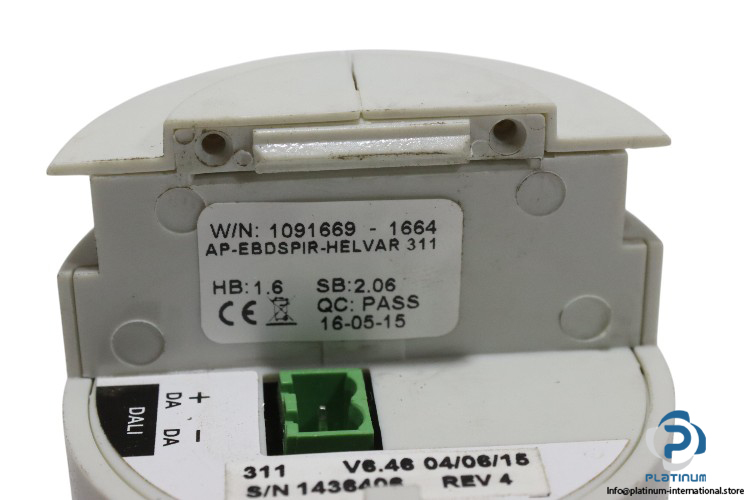

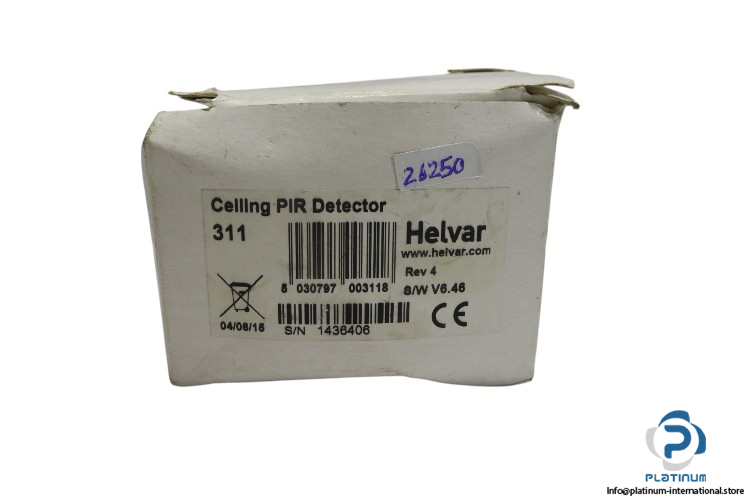

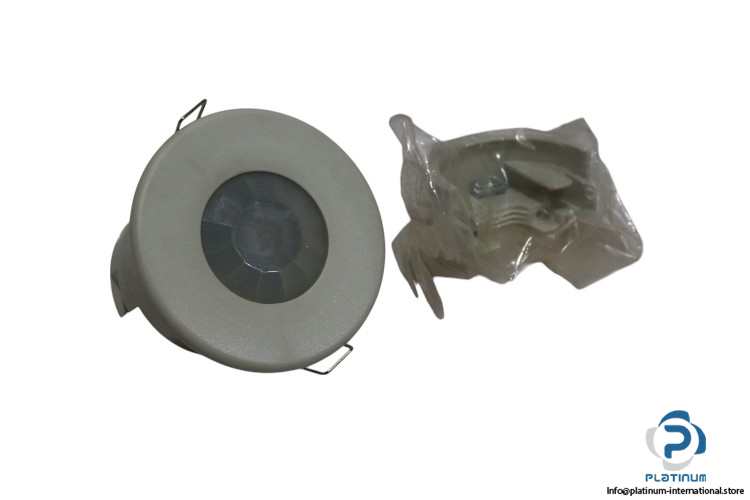

HELVAR DIGIDIM 311 Ceiling PIR Detector

The HELVAR DIGIDIM 311 is a high-precision ceiling-mounted PIR detector designed for energy-efficient lighting control. With a discreet design and wide detection range, it integrates seamlessly into smart building systems while ensuring reliable motion detection and user comfort.

• Manufacturer: HELVAR
• Type: Ceiling PIR Detector
• Model: DIGIDIM 311
• Part No.: 1091669 – 1664
• MNR: AP-EBDSPIR-HELVAR 311

Technical Information:

• Supply Input: 13 “ 22.5 V
• Current Consumption: 15 mA
• Wire Size: 0.5 mm² “ 1.5 mm²
• Max Cable Length: 300 m @ 1.5 mm²
• Casing Material: Flame-retardant ABS
• Color: Matt / White
• Degree of Protection (IP): IP40
• Ambient Temperature: 0 / 35 °C
• Mounting Hole Diameter: 68 mm
• Bezel Diameter: 76 mm
