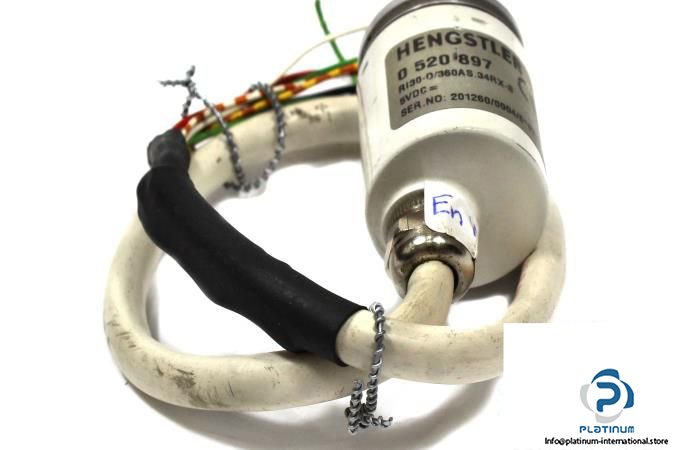

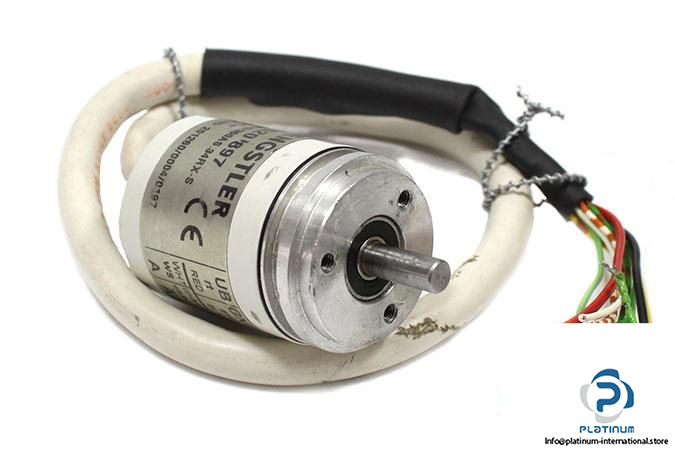

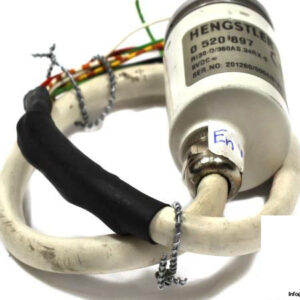

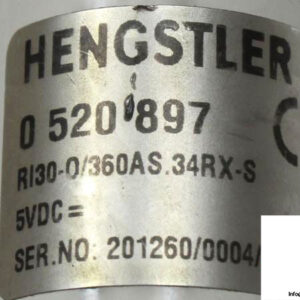

HENGSTLER RI30-O/360AS.34RX-S INCREMENTAL ENCODER
The Hengstler RI30-O/360AS.34RX-S is a compact, high-resolution incremental encoder designed for precise positioning and speed control in demanding automation and industrial applications. With a 360 PPR resolution and RS 422+Alarm output, it delivers reliable signal transmission and performance in compact systems.
Manufacturer: HENGSTLER
Type: Incremental Encoder

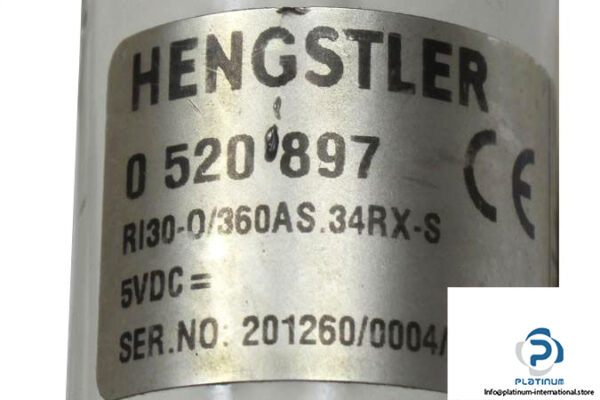

Model: RI30-O/360AS.34RX-S
Part No: 0520897
SE NO: 201260/0004
Technical Information

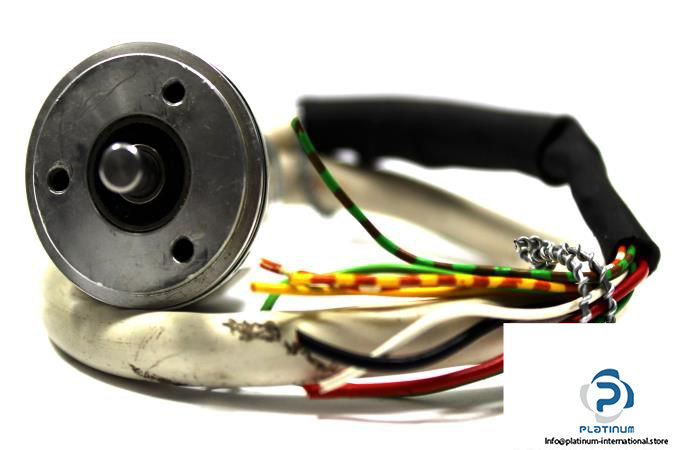

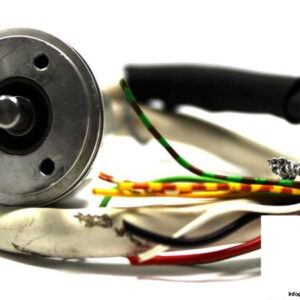

- Flange Type: Synchro Flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 5 mm
- Resolution: 360 Pulse Per Revolution (PPR)
- Voltage Supply: 5VDC

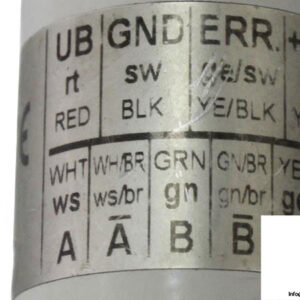

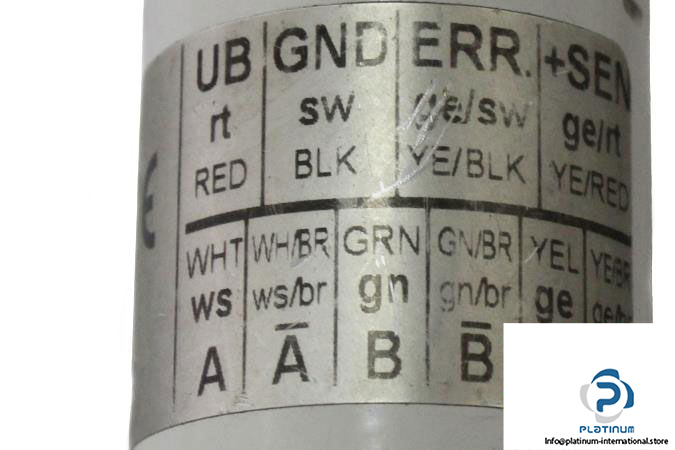

- Output Circuits: RS 422+Alarm
- Output Frequency: 0 / 100 KHz
- Connection Type: Cable, Axial
- Housing Diameter: 30 mm
- Material Housing: Aluminum
- Temperature Range: -10 / 70 °C
