HENGSTLER RI58-O/0500AS.41TC INCREMENTAL ENCODER

The HENGSTLER RI58-O/0500AS.41TC is a high-precision incremental encoder engineered for reliable signal transmission in industrial automation and motion control applications. Designed with a solid shaft and synchro flange, it ensures robust mechanical performance and accurate position feedback.

Manufacturer: HENGSTLER
Type: Incremental Encoder
Model: RI58-O/0500AS.41TC

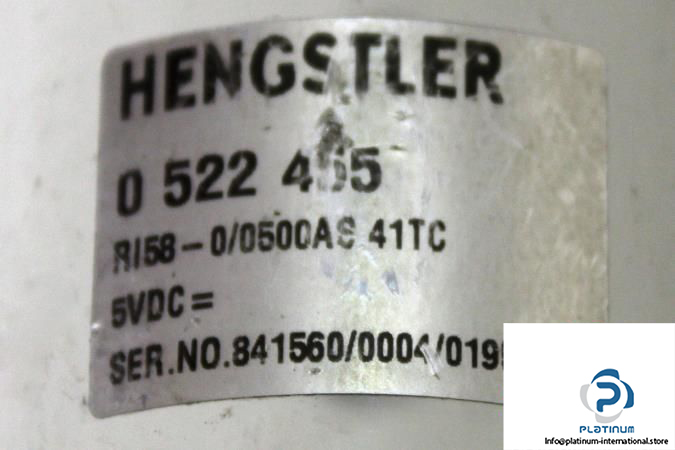

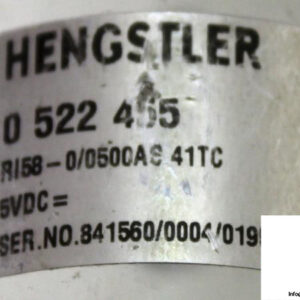

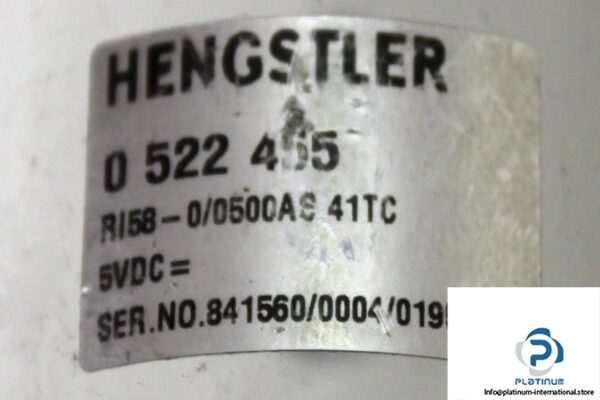

Part No: 0522455

Technical Information

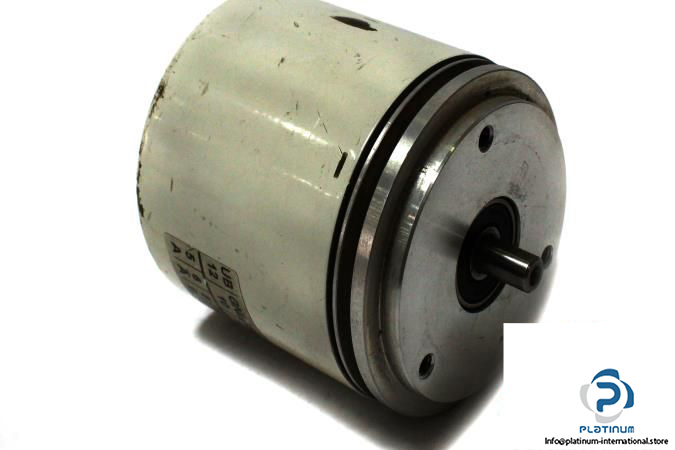

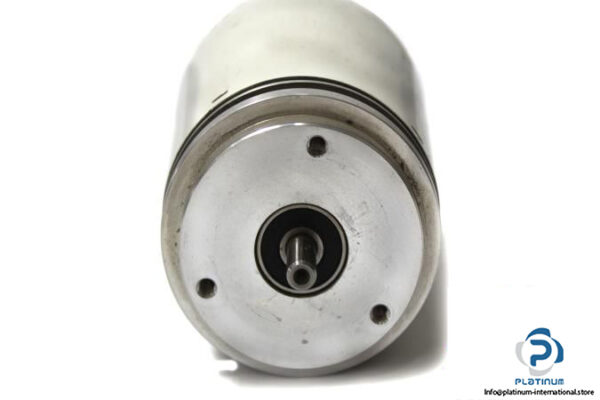

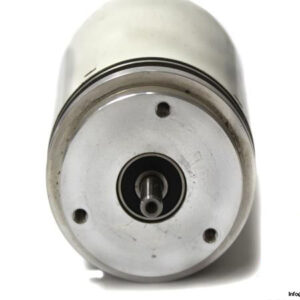

• Flange Type: Synchro Flange
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 Pulse Per Revolution (PPR)
• Voltage Supply: 5 VDC
• Output Frequency: 0 / 300 kHz
• Output Circuits: RS 422 +Sense

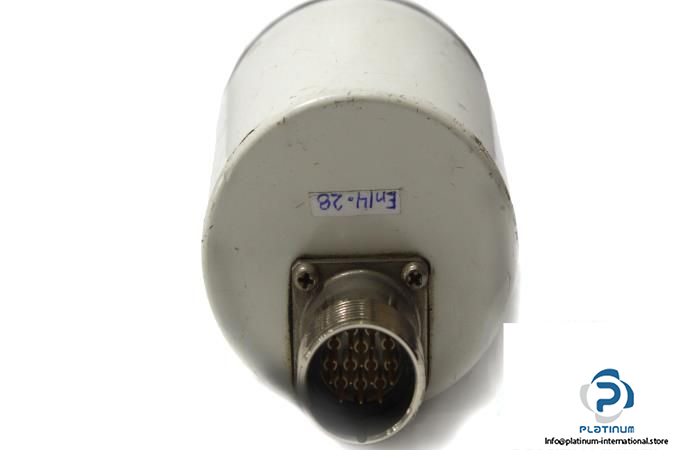

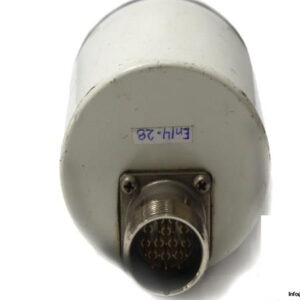

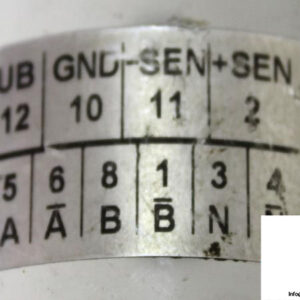

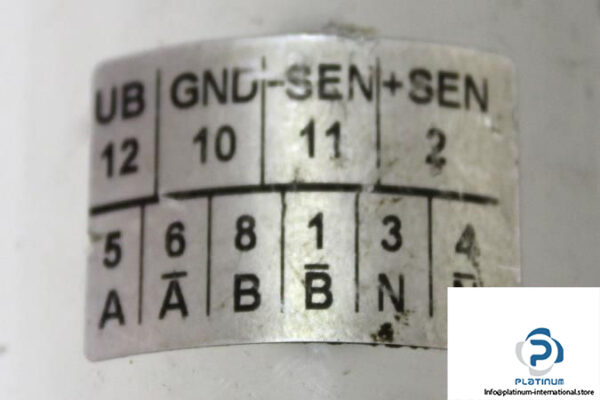

• Connection Type: M23 Connector (Conin), Axial
• Protection Class: IP65/64
• Operating Temperature: -10 / 70 °C
