Manufacturer: HENGSTLER

Type: Incremental Encoder

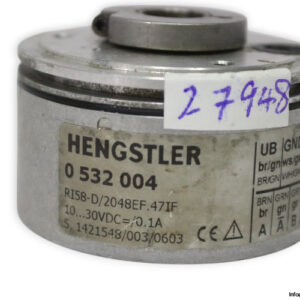

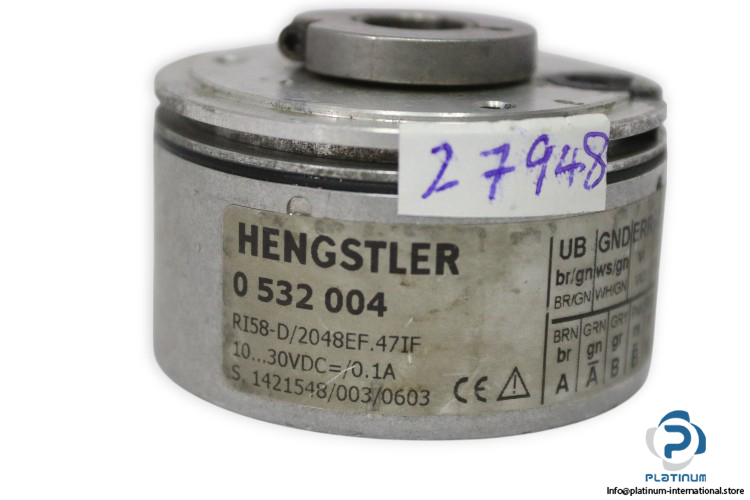

Model: RI58-D/ 2048EF.47IF

Part No.: 0532004

Serial No.: 1421548/003/0603

Rated Voltage: 10 / 30V DC

Rated Current: 0.1 A

Mounting: Synchro flange with clamping shaft or end shaft

Housing Material: Aluminum

Max Speed: 6000 min»¹

Operating Temperature: -10°C to +70°C

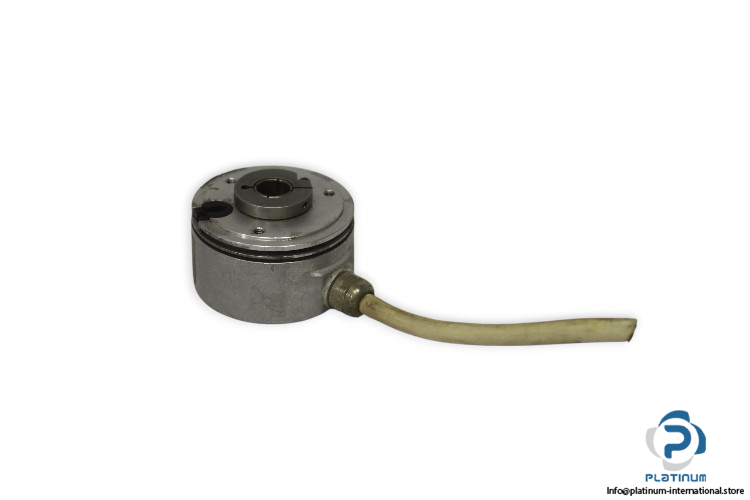

The HENGSTLER RI58-D incremental encoder is designed for precise position and speed feedback in industrial automation systems. With a high-resolution output of 2048 pulses per revolution, this encoder ensures accurate control and monitoring. It features robust aluminum housing, a wide operating voltage range of 10“30V DC, and versatile mounting options via synchro flange and clamping shaft. Ideal for demanding applications requiring durability, performance, and temperature resistance.
