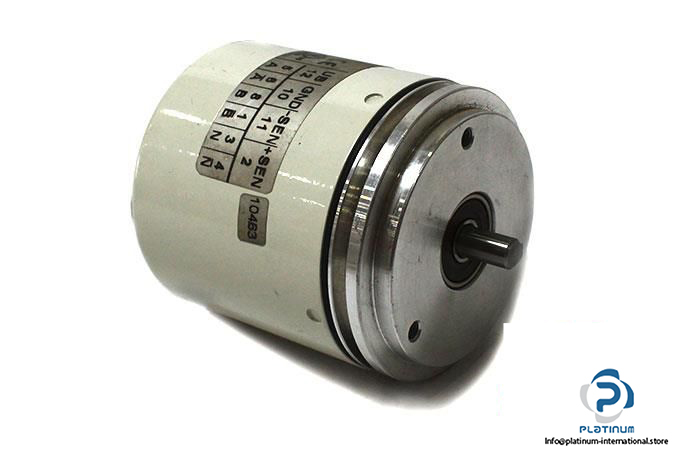

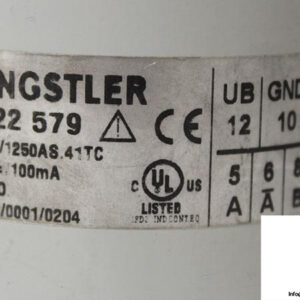

HENGSTLER RI 58-O/1250AS.41TC INCREMENTAL ENCODER

The Hengstler RI 58-O/1250AS.41TC is a high-resolution incremental encoder designed for precision motion feedback in industrial automation. Built with durable materials and advanced output technology, it ensures reliable performance even in demanding environments.

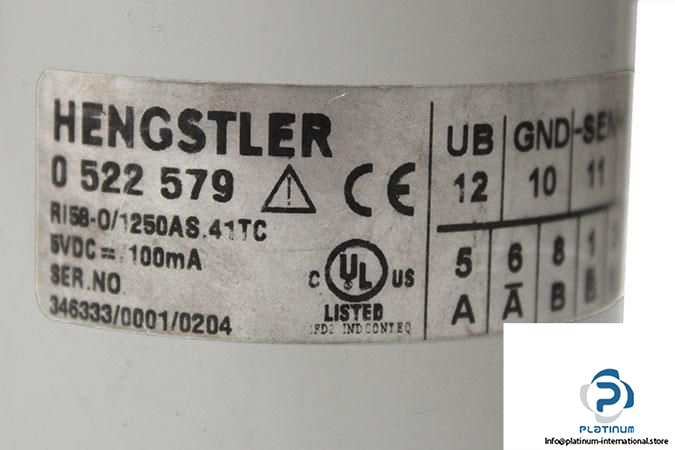

Manufacturer: HENGSTLER
Type: Incremental Encoder
Model: RI 58-O/1250AS.41TC
Part No: 0522579
Serial No: 346333/0001/0204

Technical Information

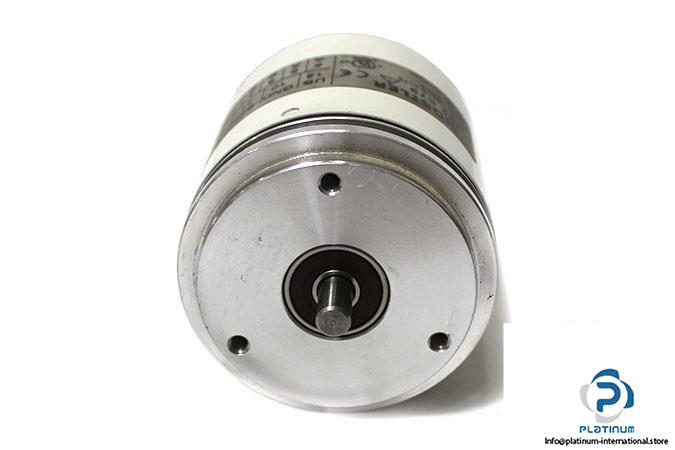

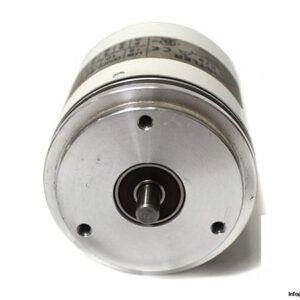

• Flange Type: Synchro Flange
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Resolution: 1250 PPR (Pulses Per Revolution)
• Voltage Supply: 5 VDC

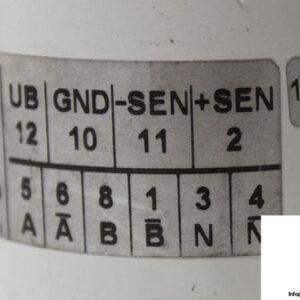

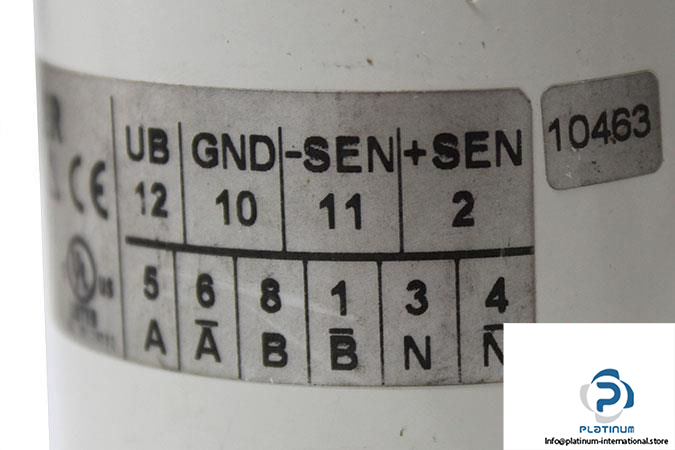

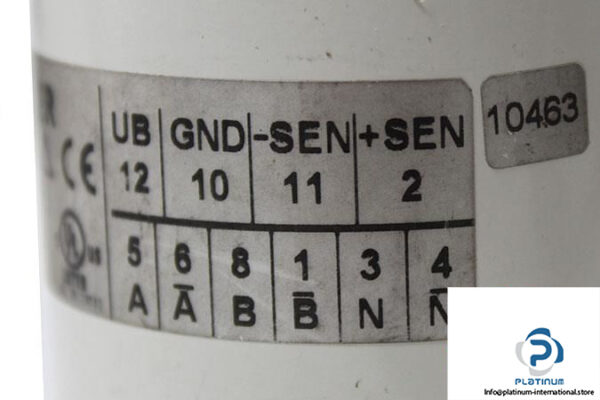

• Output Circuits: RS 422 + Sense
• Output Frequency: 0 / 100 KHz

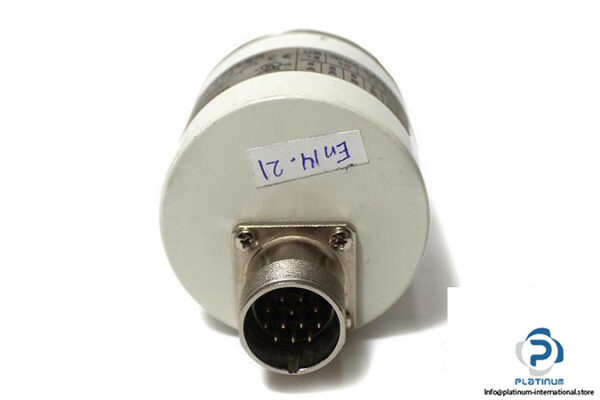

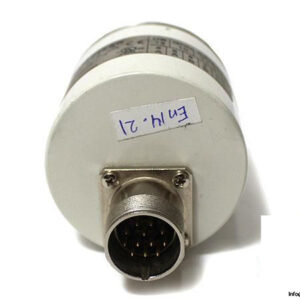

• Connection Type: M23 Connector (Conin), Axial
• Material – Shaft: Stainless Steel
• Material – Housing: Aluminum
• Operating Temperature: -10 / 70 °C
