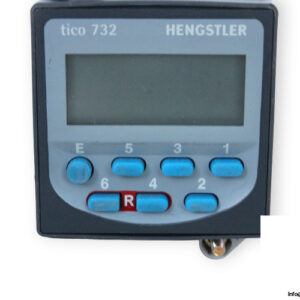

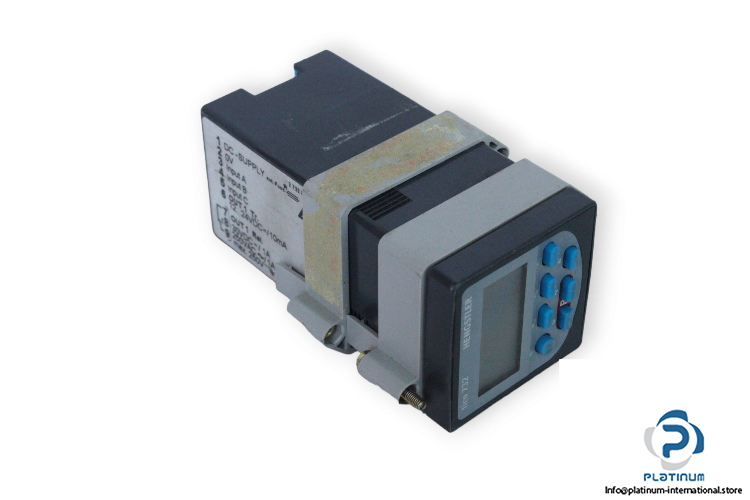

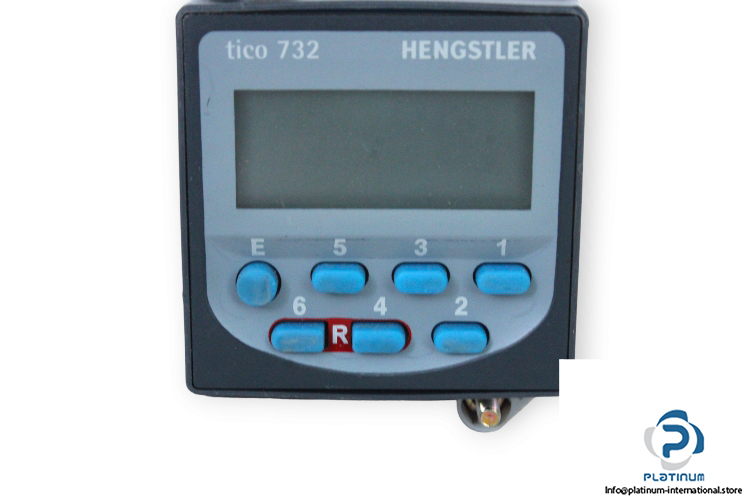

Manufacture: Hengstler
Type: Multifunctional Counter
Model: TICO 732

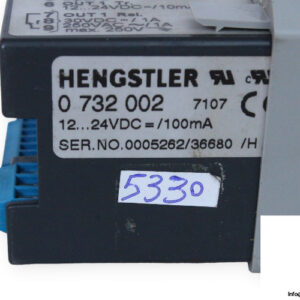

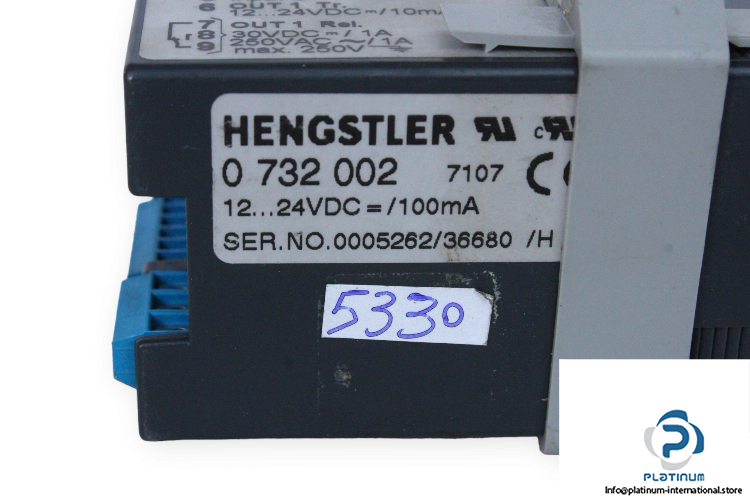

Part No.: 0 732 002

Supply voltage: 12 … 24 V DC
Current consumption: 100 mA
Relay: changeover contact max. 250 VAC / 30 VDC, 1 A
Transistor: PNP output 12 … 24 V DC max 10 Ma
Digit height: LED 7.6 mm; LCD 9 mm
Alarms: 2 alarms with programmable start-up-suppression
Resolution: programmable 1; 0.1; 0.01; 0.001

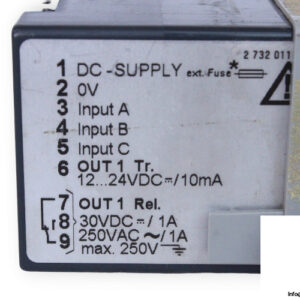

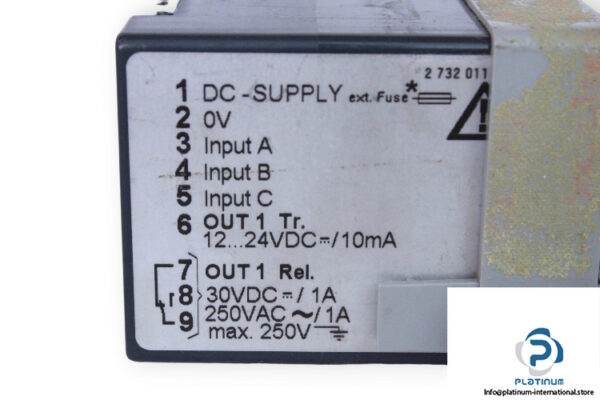

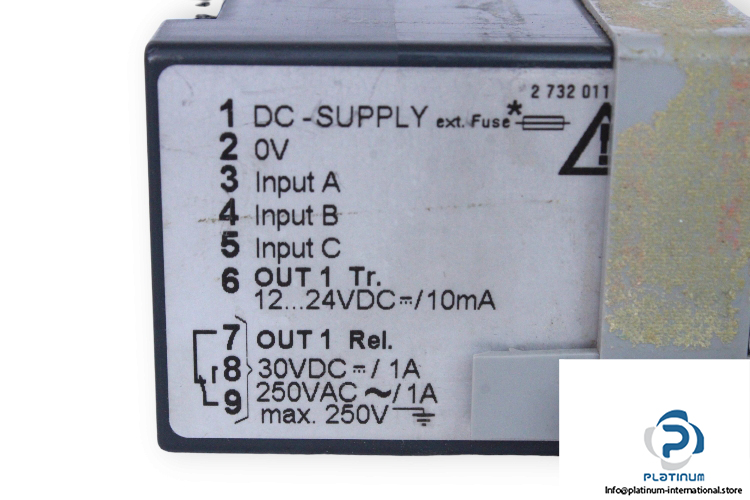

Electrical connection: screw terminals
Mounting: with clamping frame
Counting frequency: 2.5 kHz
Protection Degree: front side IP 65, terminals IP 20
Operating temperature: 0 … +50°C
Dimensions: 45 x 102.7 x 45 mm
