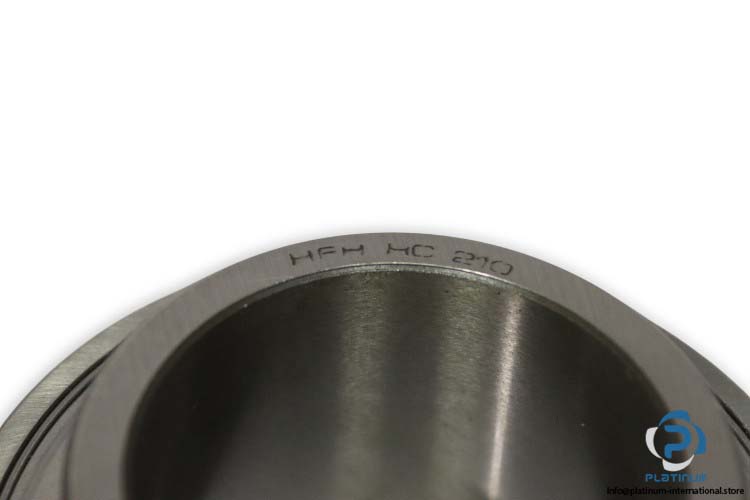

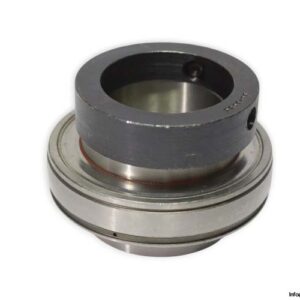

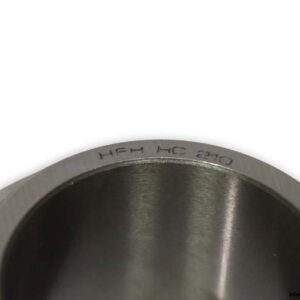

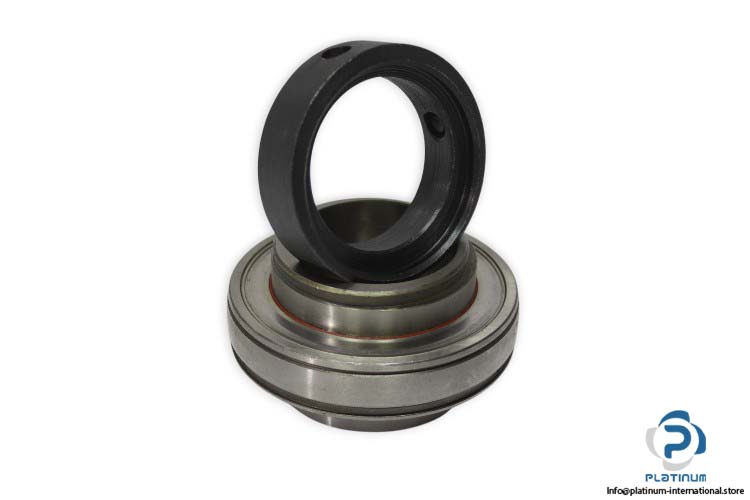

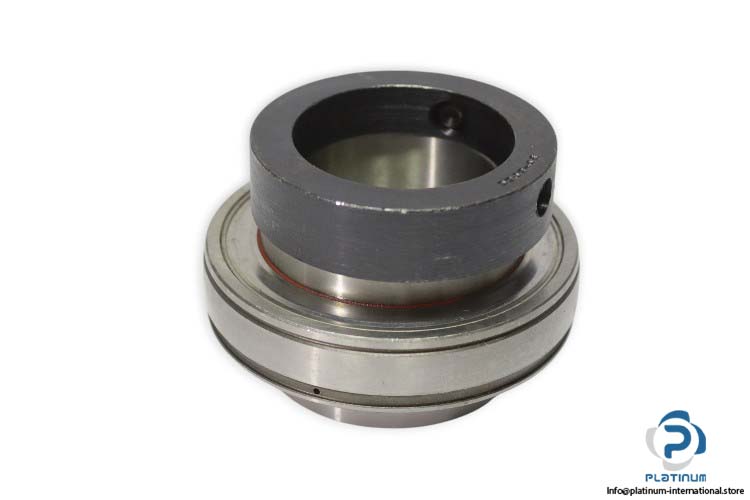

HFH HC210 Insert Ball Bearing with Eccentric Ring Fastening
The HFH HC210 is a durable insert ball bearing designed with an eccentric ring fastening system for secure and reliable shaft locking. It provides excellent load capacity and long service life, ideal for industrial machinery and rotating equipment applications.
Manufacturer: HFH
Type: Insert Ball Bearing with Eccentric Ring Fastening
Model: HC210

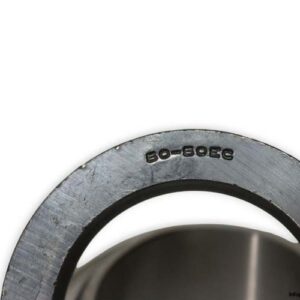

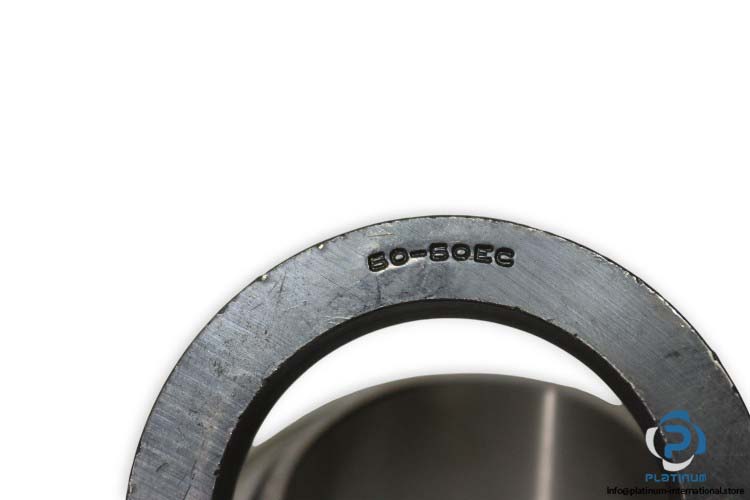

Code: 50-50EC
Technical Information
- Inner Diameter (d): 50 mm
- Outer Diameter (D): 90 mm
- Width (B): 24.65 mm
- J: 62.70 mm
- C: 69.85 mm
- Static Load, Radial (C0r): 23.20 kN
- Dynamic Load Rating, Radial (Cr): 27.00 kN
