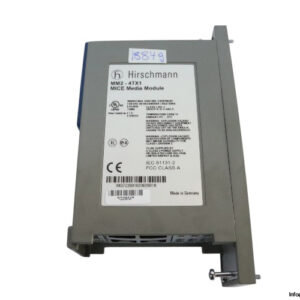

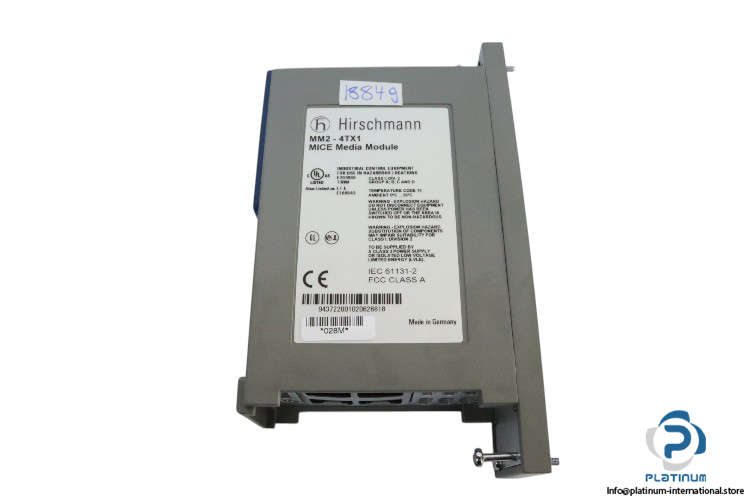

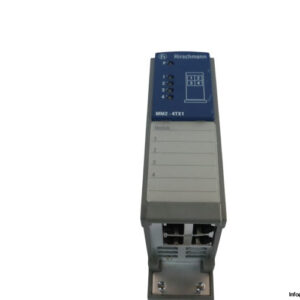

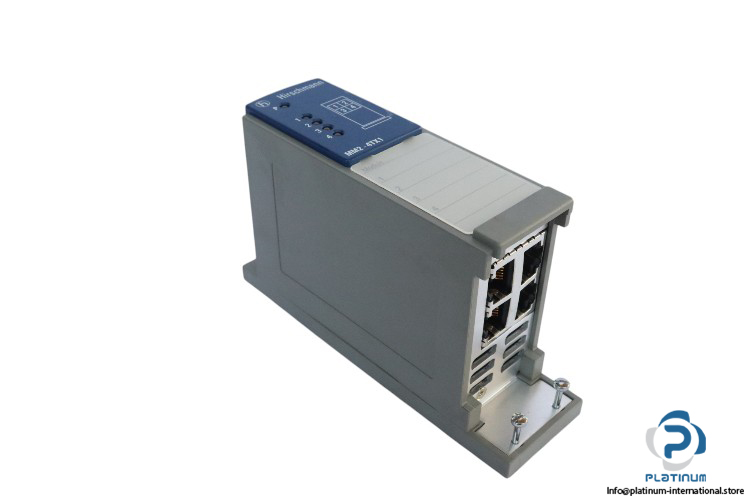

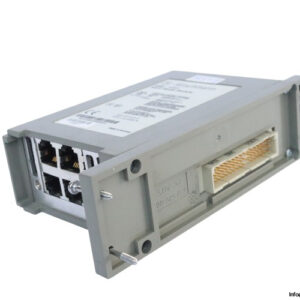

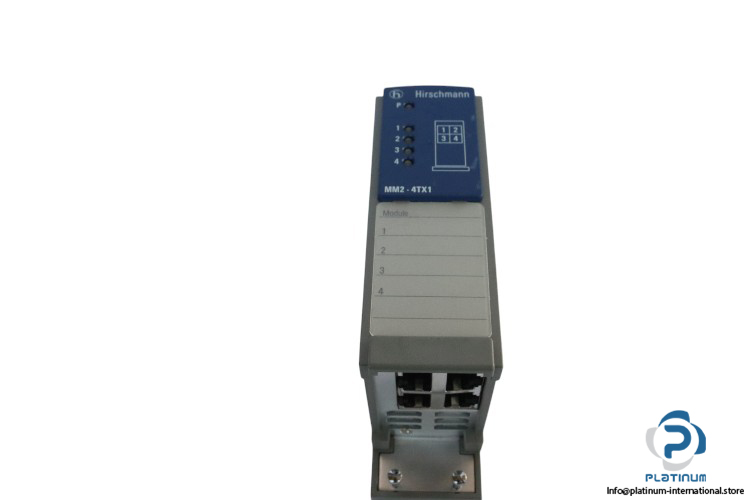

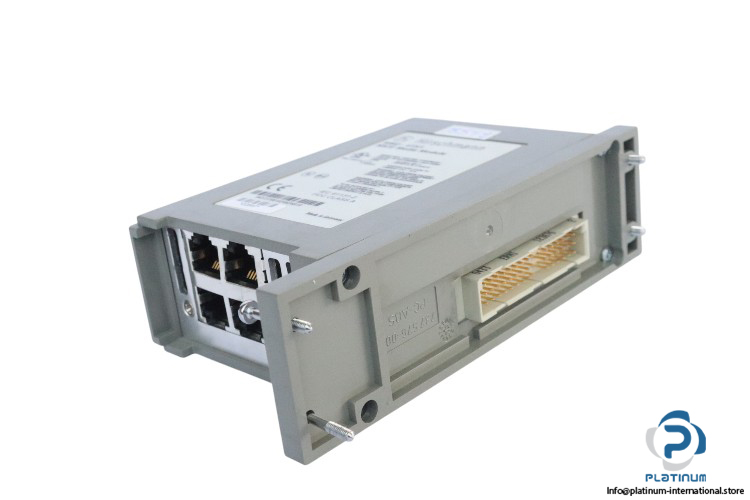

Hirschmann MM24TX1 Media Module for MICE Switch
The **Hirschmann MM24TX1 Media Module** is designed for use with the **MICE Switch** and provides **4 x 10/100BASE-TX ports** with **RJ45 sockets** for TP cable. This module features **auto-crossing**, **auto-negotiation**, and **auto-polarity** for seamless network connectivity. The network cable length for **twisted pair (TP)** ranges from **0 to 100 meters**, offering flexibility for a variety of installations. It is powered via the backplane of the **MICE switch**, with a **power consumption** of **0.8 W**. The module includes diagnostic **LEDs** that display **power**, **link status**, **data**, **100 Mbit/s**, **auto-negotiation**, **full duplex**, **ring port**, and **LED test** functions. This unit complies with the **IEC 61131-2 standard**, ensuring reliable performance in industrial control applications. With an **operating temperature range** of **0 to 60 °C** and a **protection class of IP20**, this media module is built for durability and ease of integration. The module is mounted on the **backplane** and has compact **dimensions** of **38 x 134 x 77 mm**.
- Manufacturer: Hirschmann
- Type: Media Module for MICE Switch
- Model: MM24TX1
Technical Information
- Port Type and Quantity: 4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
- Network Size (Cable Length, TP): 0 to 100 meters
- Operating Voltage: Power supply via the backplane of the MICE switch
- Power Consumption: 0.8 W
- Diagnostics: LEDs (power, link status, data, 100 Mbit/s, auto-negotiation, full duplex, ring port, LED test)
- Standard: IEC 61131-2
- Operating Temperature: 0 to 60 °C
- Mounting: Backplane
- Protection Class: IP20
- Dimensions (WxHxD): 38 x 134 x 77 mm
The **Hirschmann MM24TX1 Media Module** ensures reliable and flexible networking for industrial applications, providing seamless integration into MICE switches with easy diagnostic features and strong compliance with industrial standards.
