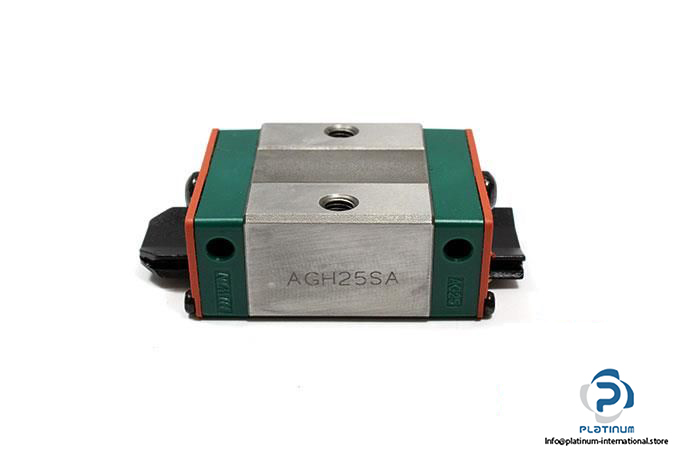

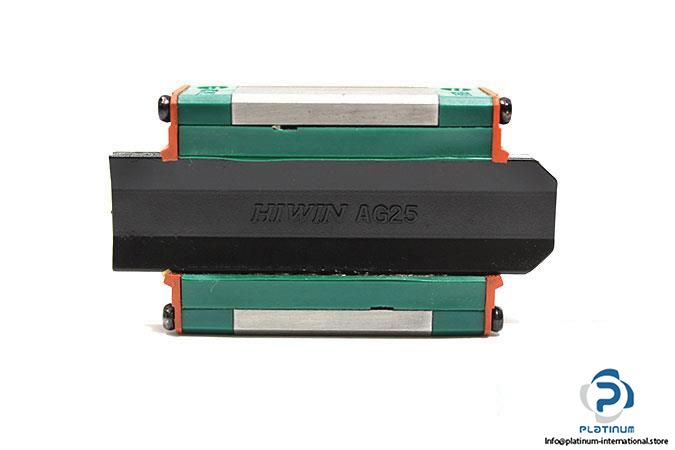

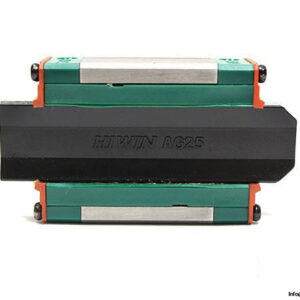

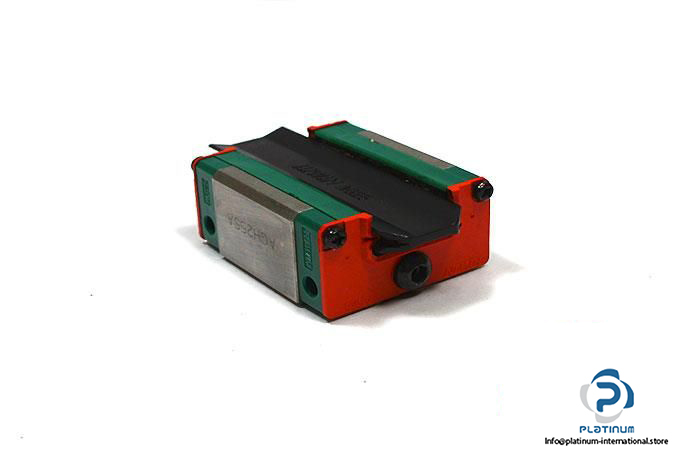

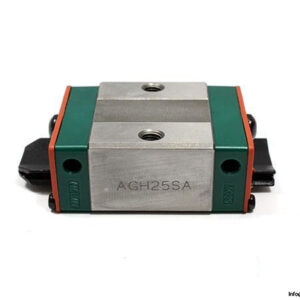

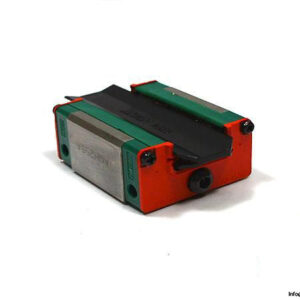

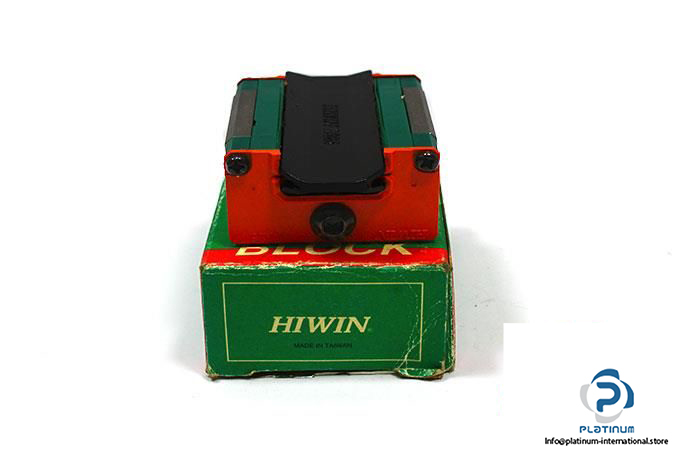

HIWIN AGH 25SA LINEAR GUIDEWAY BLOCK

This precision-engineered square linear block from Hiwin is built for medium-load applications, offering excellent rigidity, smooth linear motion, and reliable mounting from above. Suitable for industrial automation systems requiring compact and accurate linear guidance.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: AGH 25SA

Technical Information

• Size: 25 mm
• Block Height: 26 mm
• System Height: 33 mm
• Block Width (W): 48 mm
• Block Length (L): 58.7 mm
• Distance Between Holes (One Side): 35 mm
• Thread Size: M6 × 20
• Rail Width: 23 mm
• Rail Height: 18.5 mm
• Block Type: Square
• Load Type: Medium Load
• Block Mounting Type: From Above
• Basic Dynamic Load Rating: 1.08 kgf
• Basic Static Load Rating: 1.33 kgf
