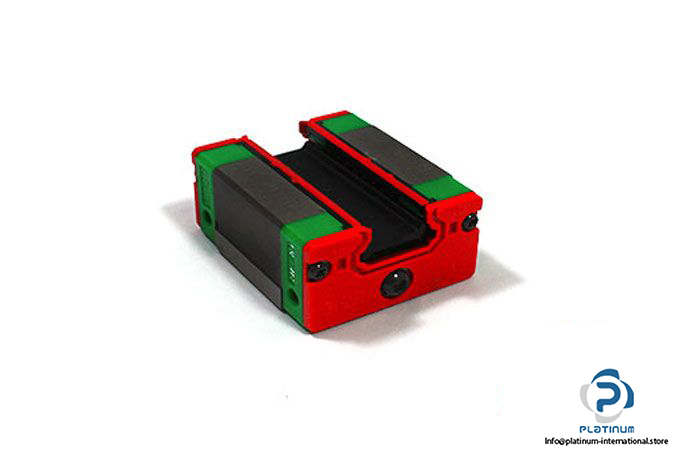

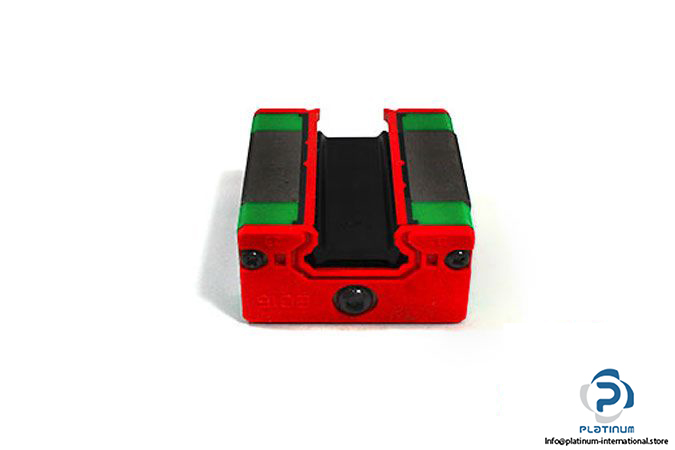

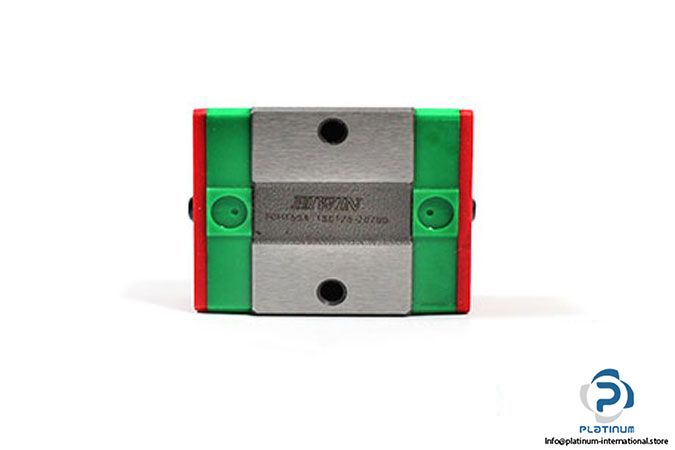

HIWIN EGH15SA LINEAR GUIDEWAY BLOCK
Designed for medium-load industrial motion systems, the Hiwin EGH15SA linear guideway block offers precision, rigidity, and smooth linear movement. Its compact square shape and top-mounting design make it ideal for space-constrained automation setups.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH15SA
Size: 15 mm
Technical Information
- Block Height: 19.5 mm
- System Height: 24 mm
- Block Width (W): 34 mm
- Block Length (L): 40.1 mm
- Thread Size: M3 x 16
- Rail Width: 15 mm
- Rail Height: 12.5 mm
- Hole Distance: 26 mm
- Block Type: Square
- Load Type: Medium Load
- Block Mounting Type: From Top
- Basic Dynamic Load Rating: 5.35 kN
- Basic Static Load Rating: 9.40 kN
