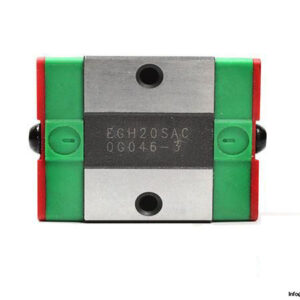

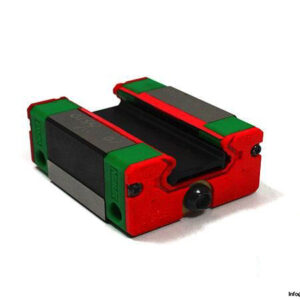

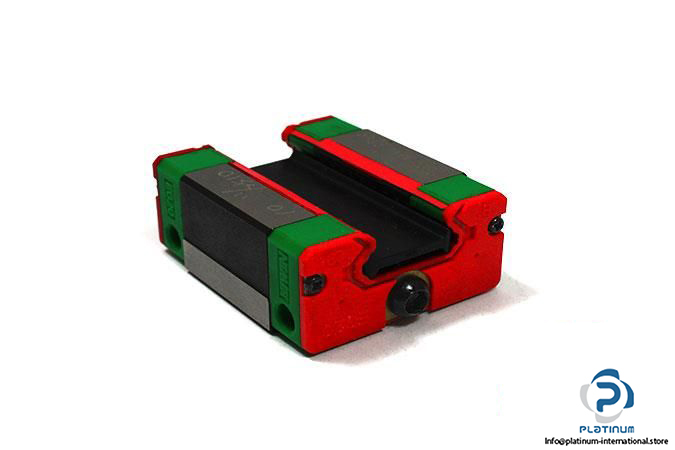

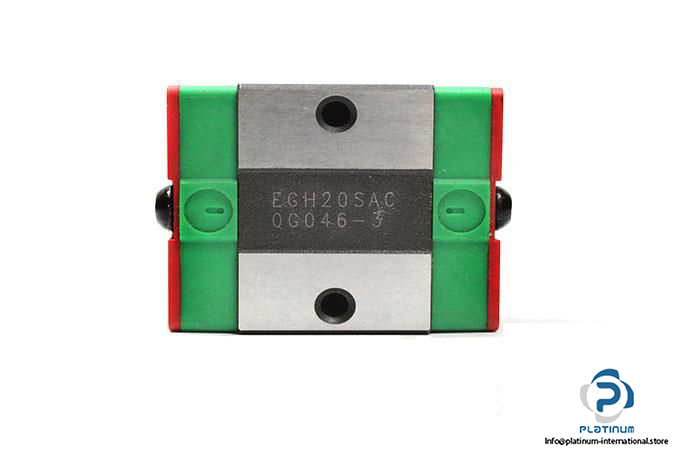

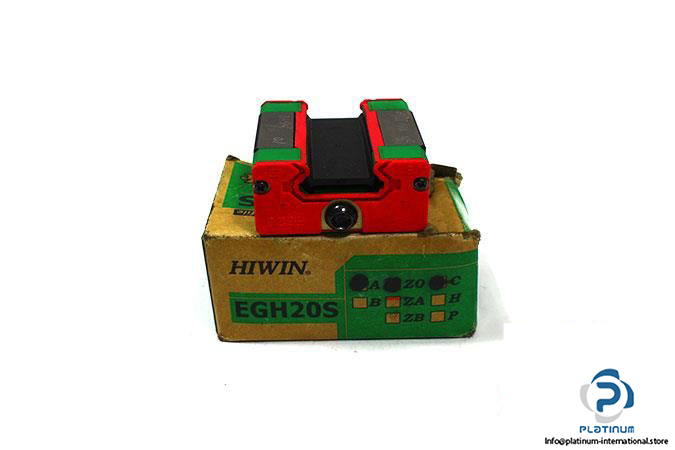

HIWIN EGH20SAC 0G046-3 LINEAR GUIDEWAY BLOCK

The Hiwin EGH20SAC 0G046-3 is a compact square-type linear guideway block designed for medium-load applications. It ensures precise linear motion and stability in demanding industrial setups, with high rigidity and optimal load distribution.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH20SAC 0G046-3

Technical Information

• Size: 20 mm
• Block Height: 22 mm
• Block Width: 42 mm
• Block Length: 50 mm
• System Height: 28 mm
• Distance Between Holes: 32 mm
• Thread Size: M5 x16
• Block Type: Square
• Load Type: Medium Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating: 7.23 kN
• Basic Static Load Rating: 12.74 kN
• Rail Width: 20 mm
• Rail Height: 15.5 mm
