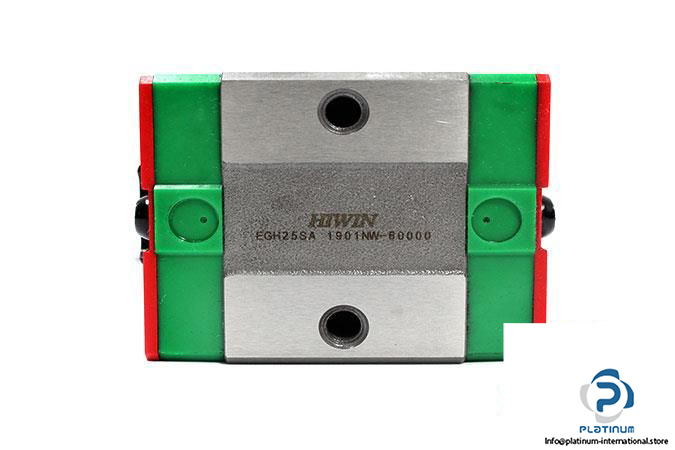

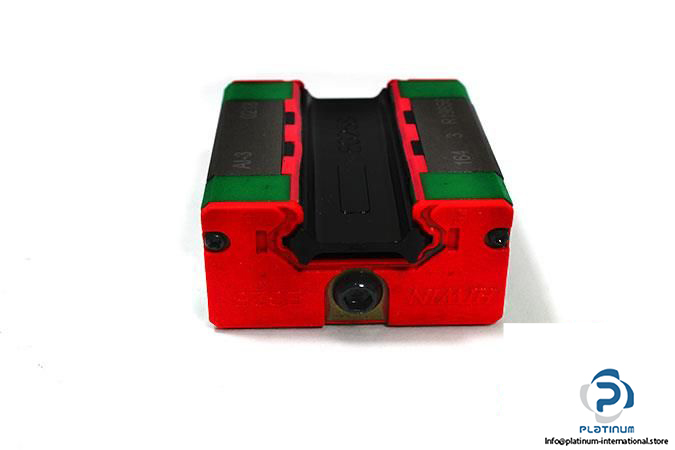

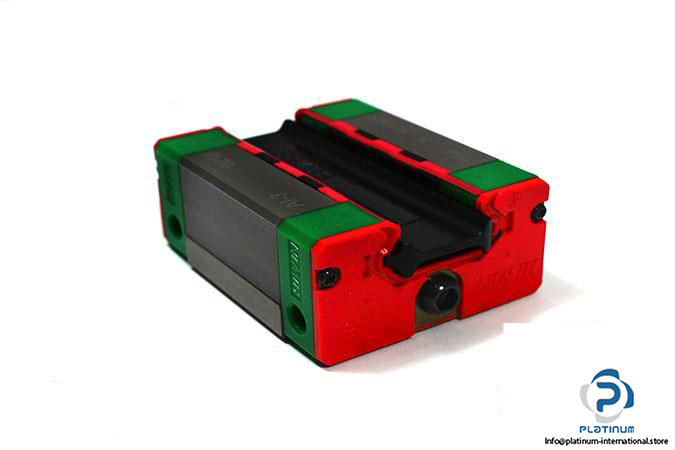

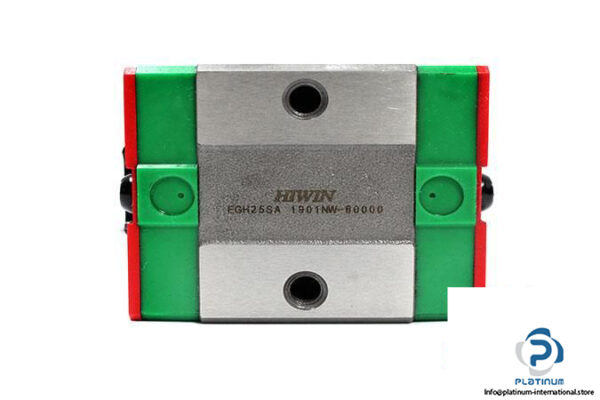

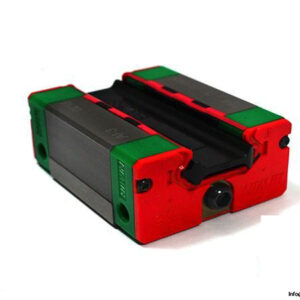

HIWIN EGH25SA LINEAR GUIDEWAY BLOCK
The Hiwin EGH25SA linear guideway block is a square-type block engineered for medium load applications, offering high precision and smooth linear motion. Designed with top mounting capability and durable construction, it is ideal for compact and robust automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH25SA 1901NW-60000
Size: 25 mm
Block Type: Square
Load Type: Medium Load
Block Mounting Type: from Top
Technical Information
- Block Height: 26 mm
- System Height: 33 mm
- Block Width: 48 mm
- Block Length: 59.1 mm
- Distances Between Holes: 35 mm
- Thread Size: M6 x 20
- Rail Width: 23 mm
- Rail Height: 18 mm
- Basic Dynamic Load Rating: 11.40 kN
- Basic Static Load Rating: 19.50 kN
